> Passive elements>Capacitors>MKP suppression capacitors>Kemet MKP EMI/RFI suppression capacitors, class X1, 310V, R.49 series>MKP 310V 0,022µF RM10 X1

Manufacturers

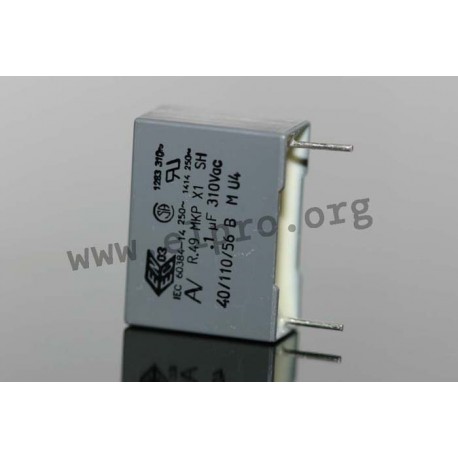

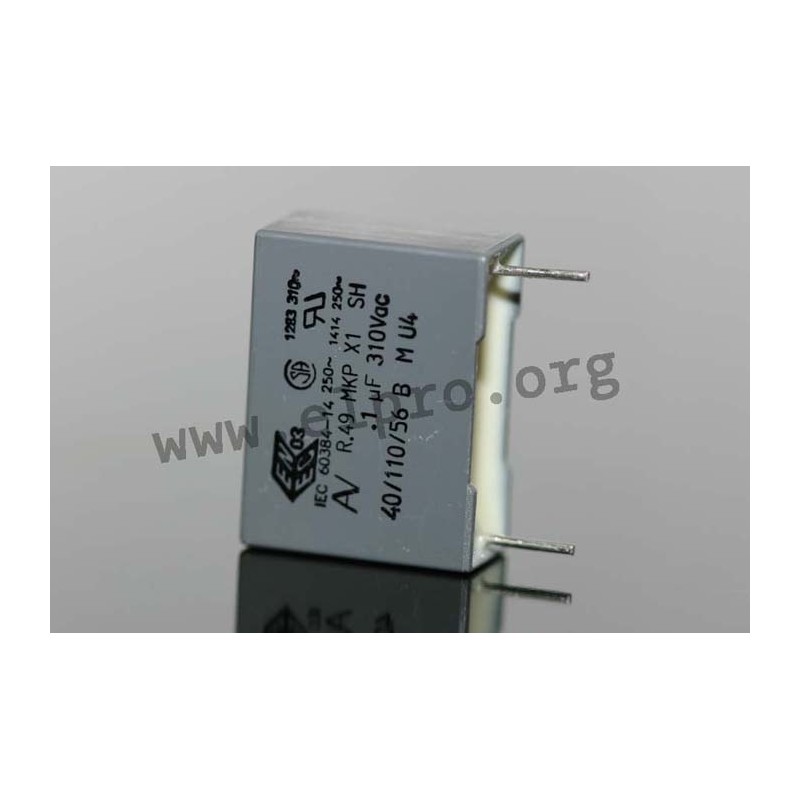

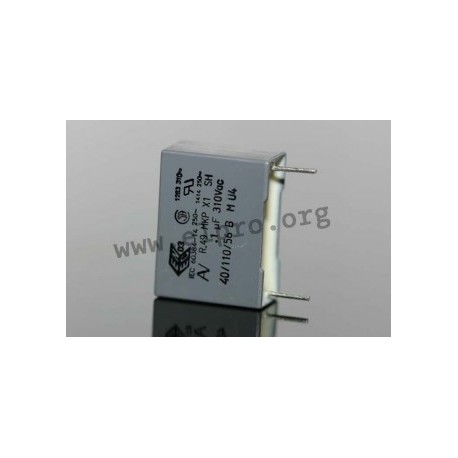

MKP 310V 0,022µF RM10 X1

pitch: 10...22.5mm

* dielectric polypropylene film
* aluminium layer plates deposited by evaporation under vacuum
* tinned wire leads
* box material is solvent resistant and flame retardant (UL94V-0)
* low attenuation
* low dissipation factor (tan d)
* high pulse strength (du/dt)
* high insulation resistance
* no impregnation
MKP class X1

MKP 310V 0,022µF RM10 X1

28089 MKP 310V 0,022µF RM10 X1 R49AF22200001M R49AF22200001M pitch: 10...22.5mm. * dielectric polypropylene film* aluminium layer plates deposited by evaporation under vacuum* tinned wire leads* box material is solvent resistant and flame retardant (UL94V-0)* low attenuation* low dissipation factor (tan d)* high pulse strength (du/dt)* high insulation resistance* no impregnation

Specifications

manufacturer
Manufacturer's name R49AF22200001M
Nominal voltage [V] 310
Pitch [mm] 10
Tolerance [%] 20
Capacity [pF] 22000
Data Sheet

Unit price

0,199 €

Stock: 1350
Further delivery:
CW 18/2025

Minimum order quantity 50 units or
multiples of 50.
