> Passive elements>Capacitors>MKP suppression capacitors>Kemet MKP EMI/RFI suppression capacitors, class X2, R.46 series>MKP 275V 0,47µF RM22,5 X2

Manufacturers

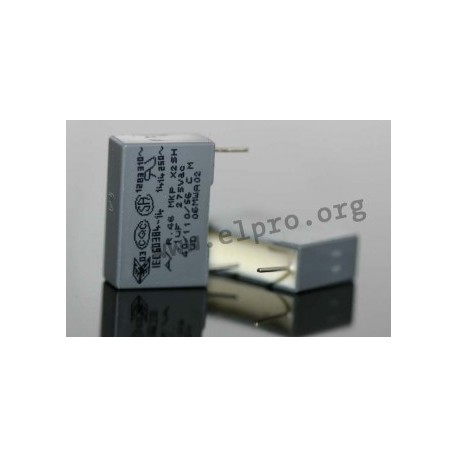

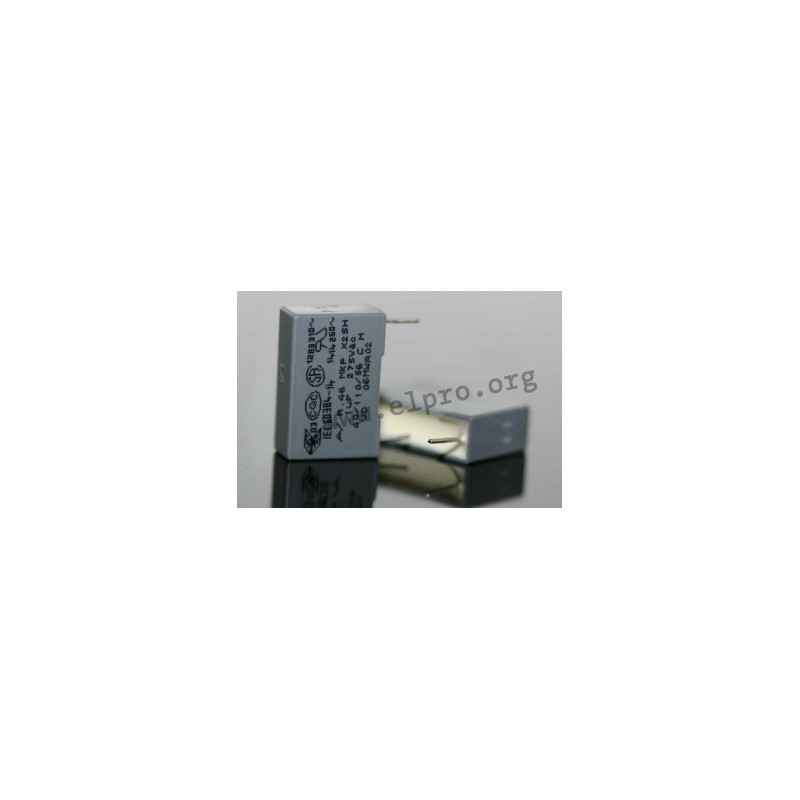

MKP 275V 0,47µF RM22,5 X2

pitch: 15...37.5mm

* dielectric polypropylene film. Aluminium layer plates deposited by evaporation under vacuum
* box material is solvent resistant and flame retardant (UL94V-0), no impregnation
* low attenuation
* low dissipation factor (tan d)
* high pulse strength (du/dt)
* high insulation resistance
MKP class X2

MKP 275V 0,47µF RM22,5 X2

28125 MKP 275V 0,47µF RM22,5 X2 R46KN347000P1M R46KN347000P1M pitch: 15...37.5mm. * dielectric polypropylene film. Aluminium layer plates deposited by evaporation under vacuum* box material is solvent resistant and flame retardant (UL94V-0), no impregnation* low attenuation* low dissipation factor (tan d)* high pulse strength (du/dt)* high insulation resistance

Specifications

manufacturer
Manufacturer's name R46KN347000P1M
Nominal voltage [V] 275
Pitch [mm] 22,5
Tolerance [%] 20
Capacity [pF] 470000
Data Sheet

Unit price

0,408 €

Stock: 1648
Next incoming goods:
CW 09/2025
805 units

Further delivery:
CW 22/2025

Minimum order quantity 1 to 3 units or multiples of 35 plus 0 to 3 .
