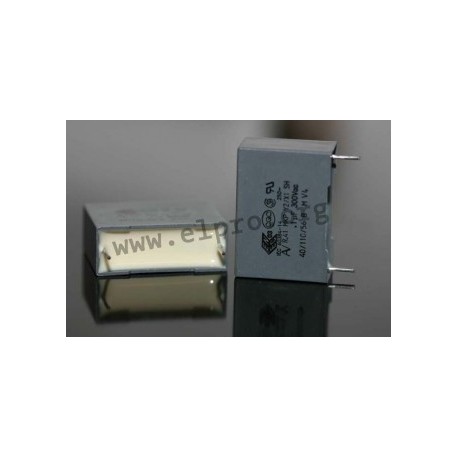

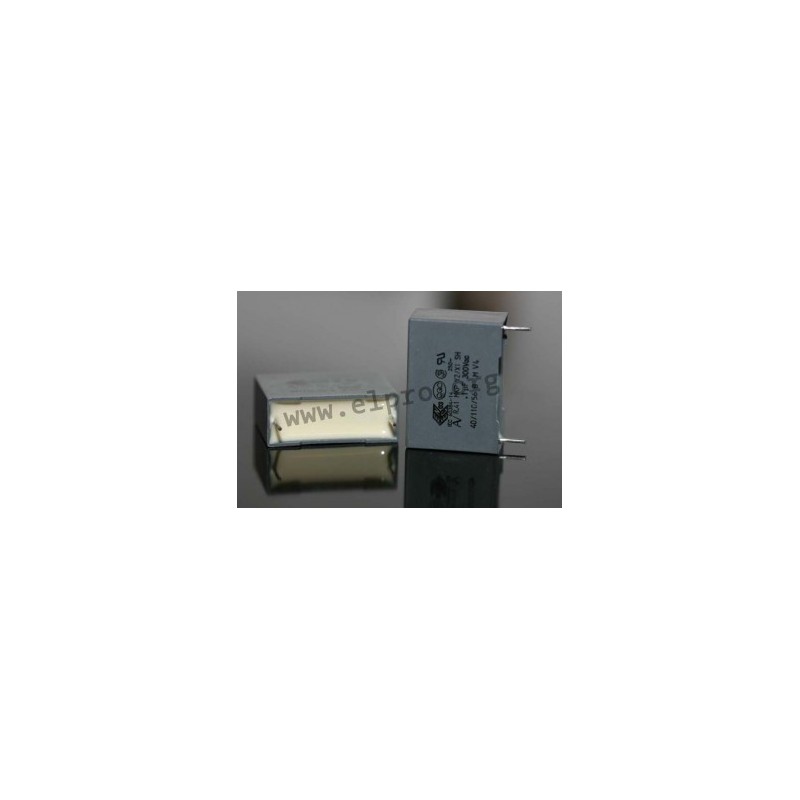

MKP 300V 0,1µF RM22,5 Y2

pitch: 10...22.5mm

* dielectric polypropylene film
* aluminium layer plates deposited by evaporation under vacuum
* tinned wire leads
* box material is solvent resistant and flame retardant (UL94V-0)
* low attenuation
* non inductive
MKP class Y2

MKP 300V 0,1µF RM22,5 Y2

28130 MKP 300V 0,1µF RM22,5 Y2 R413N31000000M R413N31000000M pitch: 10...22.5mm. * dielectric polypropylene film* aluminium layer plates deposited by evaporation under vacuum* tinned wire leads* box material is solvent resistant and flame retardant (UL94V-0)* low attenuation* non inductive

Specifications

manufacturer
Manufacturer's name R413N31000000M
Nominal voltage [V] 300
Pitch [mm] 22,5
Tolerance [%] 20
Capacity [pF] 100000
Data Sheet

Unit price

0,485 €

Stock: 818
Further delivery:
CW 18/2025

Minimum order quantity 1 to 15 units or multiples of 22 plus 0 to 15 .
