PME271YA4470MR30

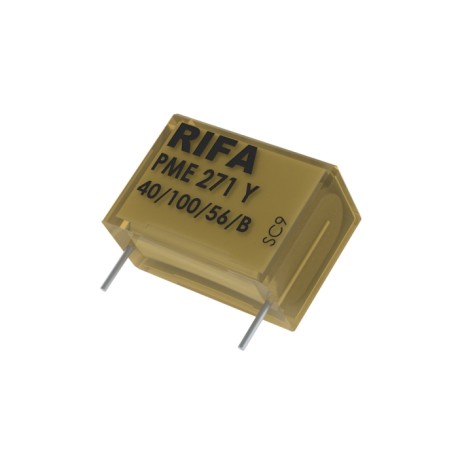

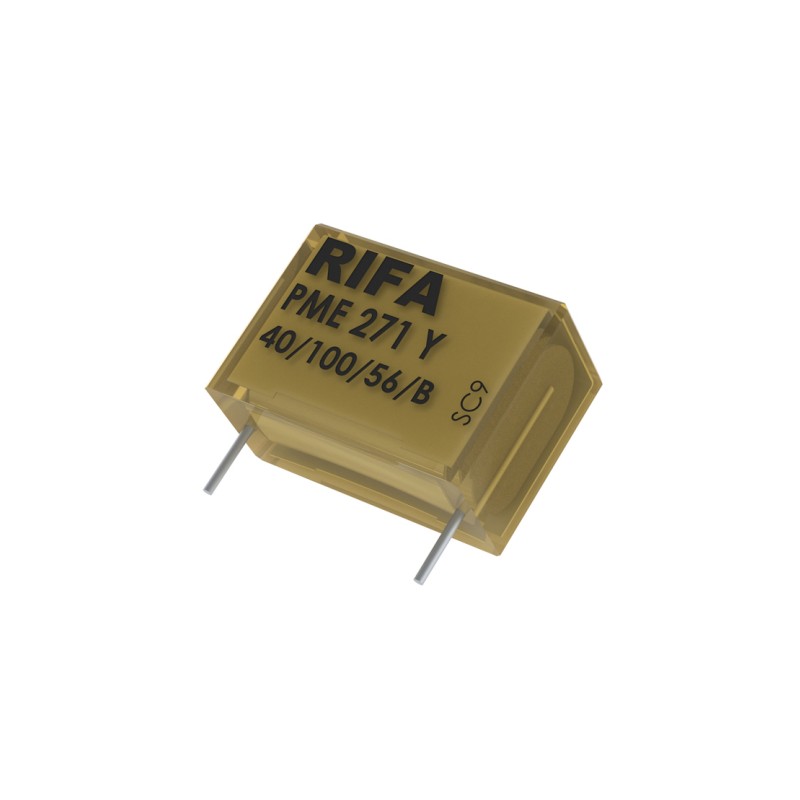

Kemet MP EMI suppression capacitor series PME271Y and PME271YA

Class Y2 MP capacitors with a dielectric material made of multilayer metallized paper. These devices are impregnated in a self-extinguishing material (UL94V-0) and have a good resistance to ionization as well as a high dV/dt capability. They have a high stability as well as a good reliability in continuous operation and comply with a 100% screening factory test at 3000V DC. We offer the following types of this Kemet series: PME271Y510MR30, PME271Y522MR30, PME271Y547MR30, PME271Y610MR30, PME271YA4470MR30 and PME271YB4680MR30.

  • rated voltage: 250 to 300V AC
  • capacity: 1 to 100nF
  • pitch: 10,2 to 25,4mm
  • operating temperature PME271Y_: -40 to +100°C
  • operating temperature PME271YA_/PME271YB_: -40 to +115°C
  • bulk
PME271YA4470MR30, Kemet MP EMI/RFI suppression capacitors, class Y2, 250 to 300V, PME271Y and PME271YA series

PME271YA4470MR30

243589 PME271YA4470MR30 PME271YA4470MR30 Kemet MP EMI suppression capacitor series PME271Y and PME271YA. Class Y2 MP capacitors with a dielectric material made of multilayer metallized paper. These devices are impregnated in a self-extinguishing material (UL94V-0) and have a good resistance to ionization as well as a high dV/dt capability. They have a high stability as well as a good reliability in continuous operation and comply with a 100% screening factory test at 3000V DC. We offer the following types of this Kemet series: PME271Y510MR30, PME271Y522MR30, PME271Y547MR30, PME271Y610MR30, PME271YA4470MR30 and PME271YB4680MR30. rated voltage: 250 to 300V AC capacity: 1 to 100nF pitch: 10,2 to 25,4mm operating temperature PME271Y_: -40 to +100°C operating temperature PME271YA_/PME271YB_: -40 to +115°C bulk

Specifications

manufacturer
Manufacturer's name PME271YA4470MR30
Nominal voltage [V AC] 300
Frequency [MHz] 24
Capacity [µF] 0,0047
Pitch [mm] 10,2
Data Sheet

Unit price

0,547 €

Stock: 1050
Further delivery:
CW 22/2025

Minimum order quantity 10 units or
multiples of 10.
