PME271M533MR30

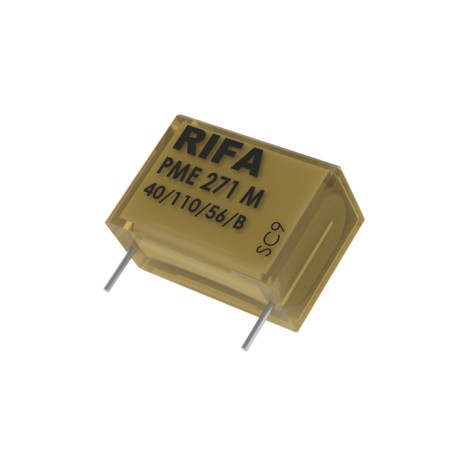

Kemet MP EMI suppression capacitor series PME271M

Class X2 MP capacitors with a dielectric material made of multilayer metallized paper. These devices are impregnated in a self-extinguishing material (UL94V-0) and have a high stability as well as a good reliability in continuous operation. They have a good resistance to ionization as well as a high dV/dt capability and comply with a 100% screening factory test at 2150V DC. We offer the following types of this Kemet series: PME271M510MR30, PME271M522MR30, PME271M533MR30, PME271M547MR30, PME271MB6100MR30, PME271MD6220KR30, PME271MD6330KR30 and PME271M647KR30.

  • rated voltage: 275V AC
  • capacity: 0,01 to 0,47µF
  • pitch: 15,2 to 27,5mm
  • operating temperature: -40 to +110°C
  • bulk
PME271M533MR30, Kemet MP EMI/RFI suppression capacitors, class X2, 275V, PME271M series

PME271M533MR30

243579 PME271M533MR30 PME271M533MR30 Kemet MP EMI suppression capacitor series PME271M. Class X2 MP capacitors with a dielectric material made of multilayer metallized paper. These devices are impregnated in a self-extinguishing material (UL94V-0) and have a high stability as well as a good reliability in continuous operation. They have a good resistance to ionization as well as a high dV/dt capability and comply with a 100% screening factory test at 2150V DC. We offer the following types of this Kemet series: PME271M510MR30, PME271M522MR30, PME271M533MR30, PME271M547MR30, PME271MB6100MR30, PME271MD6220KR30, PME271MD6330KR30 and PME271M647KR30. rated voltage: 275V AC capacity: 0,01 to 0,47µF pitch: 15,2 to 27,5mm operating temperature: -40 to +110°C bulk

Specifications

manufacturer
Manufacturer's name PME271M533MR30
Frequency [MHz] 8,4
Capacity [µF] 0,033
Pitch [mm] 15
Data Sheet

Unit price

0,722 €

Stock: 0
Next incoming goods:
CW 50/2024
340 units

Further delivery:
CW 20/2025

Minimum order quantity 10 units or
multiples of 10.
