FEF-SI 6A

Kemet RFI filter series F.BP

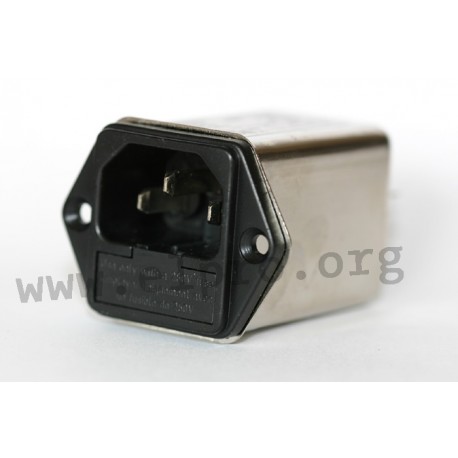

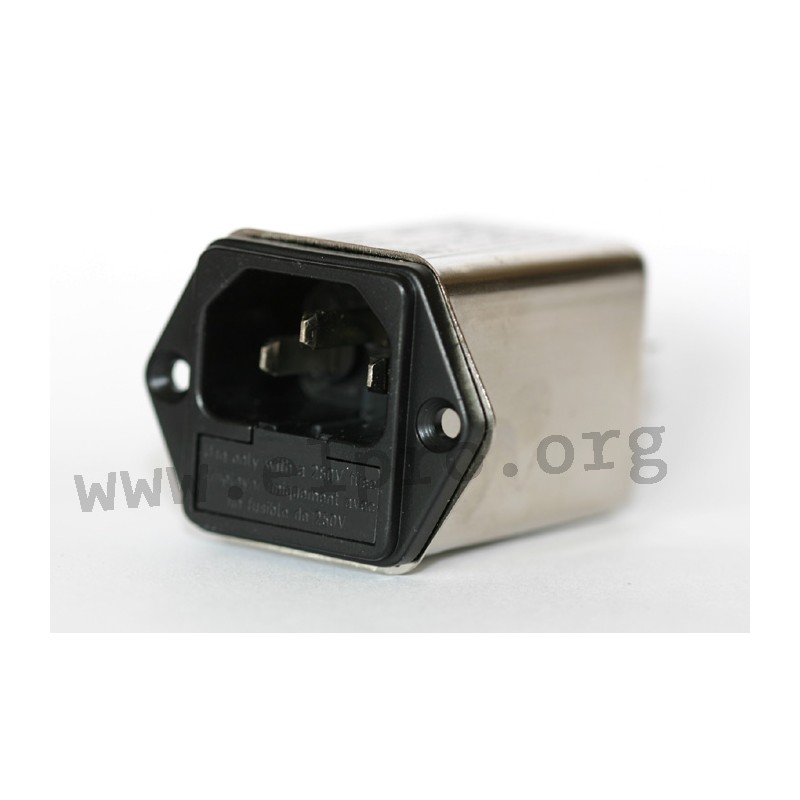

RFI filters in a metal housing with an IEC plug and a fuse holder (5x20mm). These line filters have a faston plug terminal (6,3x0,8mm) and are suitable for screw mounting. We offer the type F.BP.AB.2680.ZF.100 of this Kemet/Arcotronics series.

  • rated current: 6A
  • rated voltage: 250V (50/60Hz)
  • dielectric strength line/ground: 3kV DC / 1,8kV AC
  • dielectric strength line/line: 1,7kV DC
  • operating temperature: -25 to +85°C
FEF-SI 6A

FEF-SI 6A

6420 FEF-SI 6A F.BP.AB.2680.ZF.100 F.BP.AB.2680.ZF.100 Kemet RFI filter series F.BP. RFI filters in a metal housing with an IEC plug and a fuse holder (5x20mm). These line filters have a faston plug terminal (6,3x0,8mm) and are suitable for screw mounting. We offer the type F.BP.AB.2680.ZF.100 of this Kemet/Arcotronics series. rated current: 6A rated voltage: 250V (50/60Hz) dielectric strength line/ground: 3kV DC / 1,8kV AC dielectric strength line/line: 1,7kV DC operating temperature: -25 to +85°C

Specifications

manufacturer
Manufacturer's name F.BP.AB.2680...
Rated current [mA] 6
Inductance [µH] 2x800
CX [µF] 0,068
Leakage current [mA] 2x0,2
CY [pF] 2x2200
Data Sheet
