FEF 10A

Kemet RFI filter series FBN

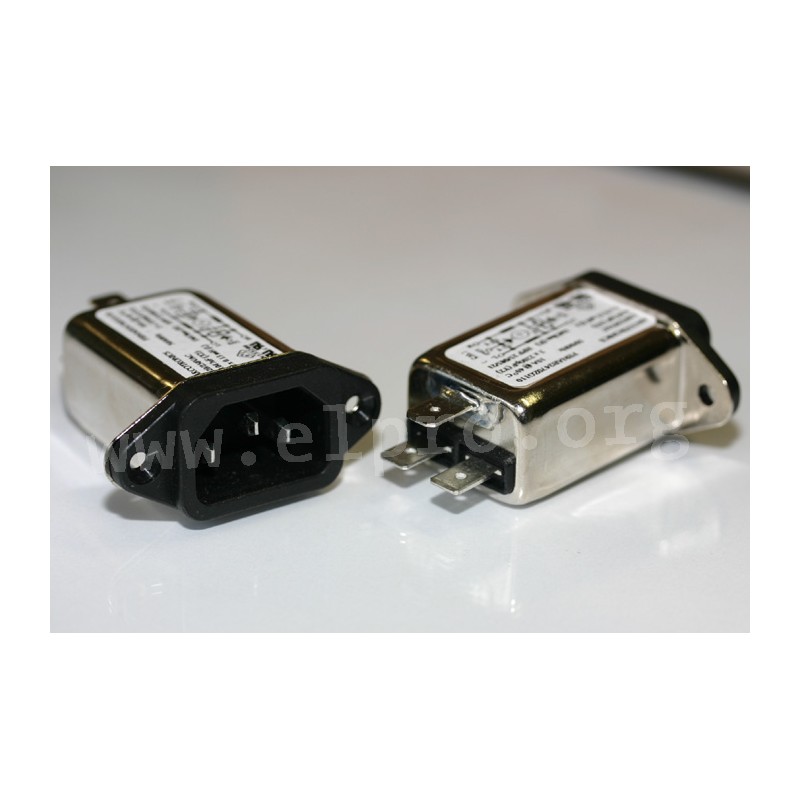

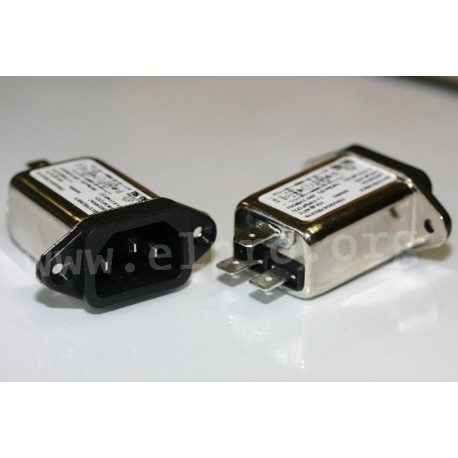

RFI filters in a metal housing with an IEC plug and a faston plug terminal 6,3x0,8mm. These line filters are suitable for various applications and have a good attenuation. We offer the following types of this Kemet/Arcotronics series: F.BN.AB.3100.BZ.000, FBNAB3100ZB110, FBNAB3100ZD110, FBNAB3100ZF110, FBNAB3100ZG110, FBNMB3100ZB110, FBNMB3100ZD110, FBNMB3100ZF110, FBNMB3100ZG110, F.BN.AB.2680.ZD.000, F.BN.AB.3100.FZ.000 and F.BN.AB.2470.ZG110.

  • rated current: 1 to 10A
  • rated voltage: 250V (50/60Hz)
  • dielectric strength line/ground: 3kV DC
  • dielectric strength line/line: 1,7kV DC
  • operating temperature: -25 to +85°C
FEF 10A

FEF 10A

6405 FEF 10A F.BN.AB.2470.ZG110 F.BN.AB.2470.ZG110 Kemet RFI filter series FBN. RFI filters in a metal housing with an IEC plug and a faston plug terminal 6,3x0,8mm. These line filters are suitable for various applications and have a good attenuation. We offer the following types of this Kemet/Arcotronics series: F.BN.AB.3100.BZ.000, FBNAB3100ZB110, FBNAB3100ZD110, FBNAB3100ZF110, FBNAB3100ZG110, FBNMB3100ZB110, FBNMB3100ZD110, FBNMB3100ZF110, FBNMB3100ZG110, F.BN.AB.2680.ZD.000, F.BN.AB.3100.FZ.000 and F.BN.AB.2470.ZG110. rated current: 1 to 10A rated voltage: 250V (50/60Hz) dielectric strength line/ground: 3kV DC dielectric strength line/line: 1,7kV DC operating temperature: -25 to +85°C

Specifications

manufacturer
Manufacturer's name F.BN.AB.2470.ZG110
Rated current [mA] 10
Inductance [µH] 2x0,13
CX [µF] 0,047
Leakage current [mA] 2x0,2
CY [pF] 2x2500
Data Sheet

Unit price

6,69 €

Stock: 1504
Further delivery:
CW 27/2025
