K+B IEC appliance inlets

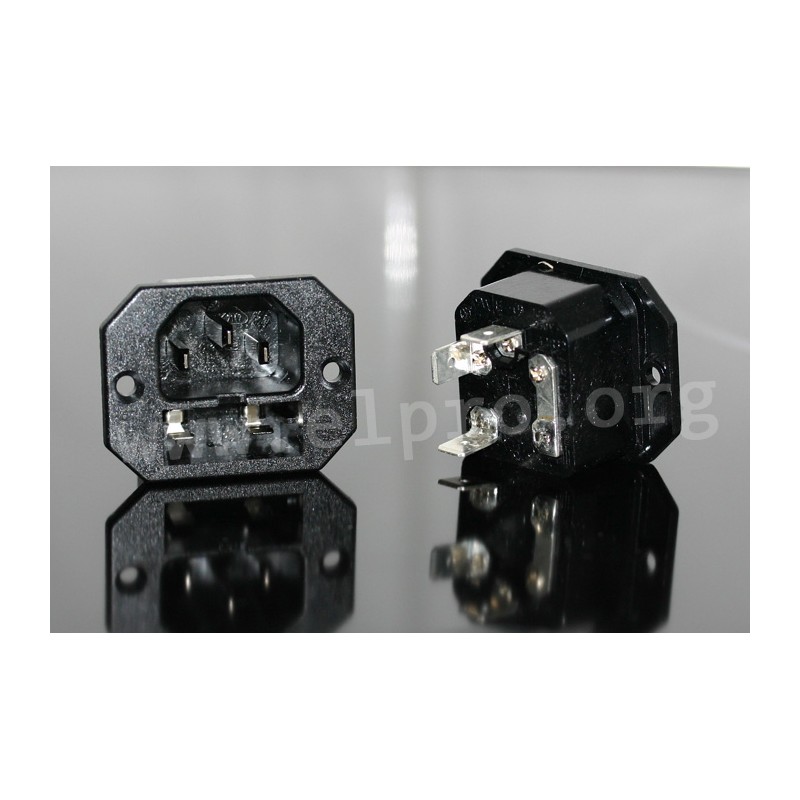

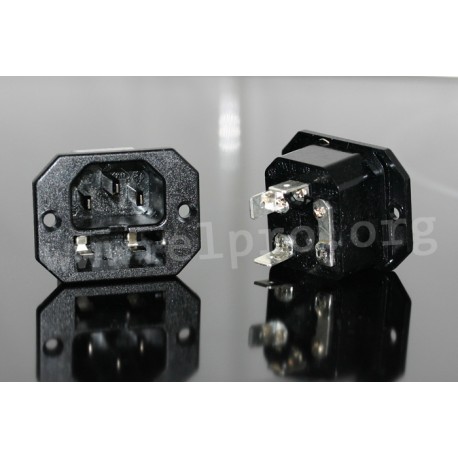

  • IEC appliance inlets (C14) in black
  • with a fuse holder for a fuse link (5x20mm) and a tab terminal

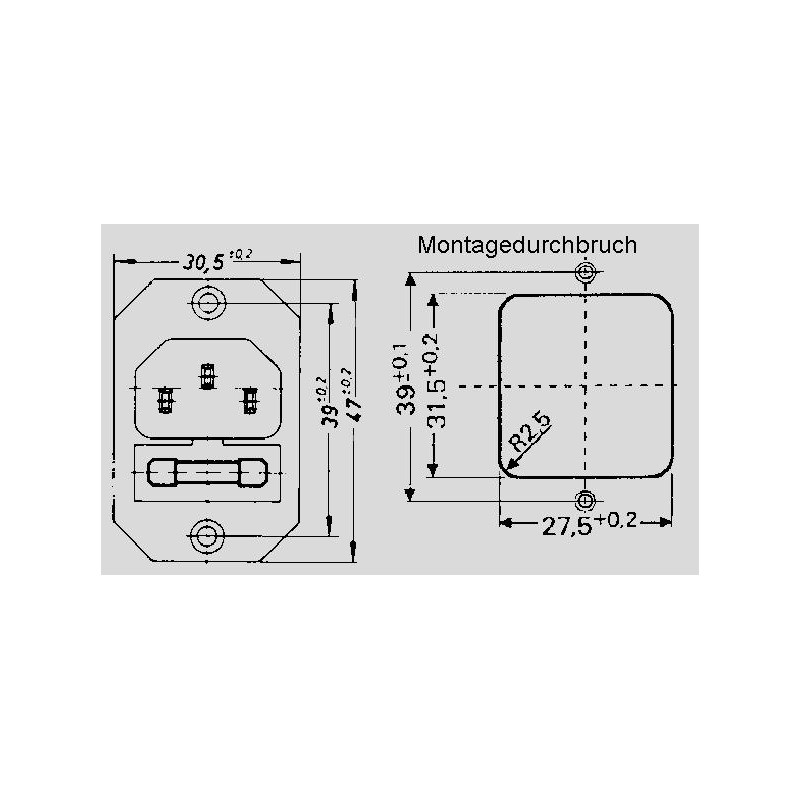

  • suitable for screw mounting with longitudinal (42 R32 1_ / 36mm hole distance) or transversal flanges (42 R32 2_ / 39mm hole distance)
  • number of poles: 2+PE
  • continuous current: 10A
  • fuse holder: 6,3A
  • pin temperature: 70°C
  • rated voltage: 250V AC
42 R32 1121

42 R32 1121

30199 42 R32 1121 42R32.1121 42R32.1121 K+B IEC appliance inlets. IEC appliance inlets (C14) in black with a fuse holder for a fuse link (5x20mm) and a tab terminal suitable for screw mounting with longitudinal (42 R32 1_ / 36mm hole distance) or transversal flanges (42 R32 2_ / 39mm hole distance) number of poles: 2+PE continuous current: 10A fuse holder: 6,3A pin temperature: 70°C rated voltage: 250V AC

Specifications

manufacturer
Manufacturer's name 42R32.1121
Data Sheet

Unit price

1,82 €

Stock: 1538
Next incoming goods:
CW 04/2025
1500 units

Further delivery:
CW 12/2025

Minimum order quantity 1 to 8 units or multiples of 10 plus 0 to 8 .
