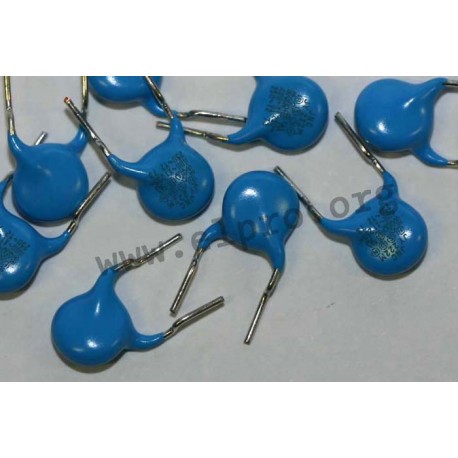

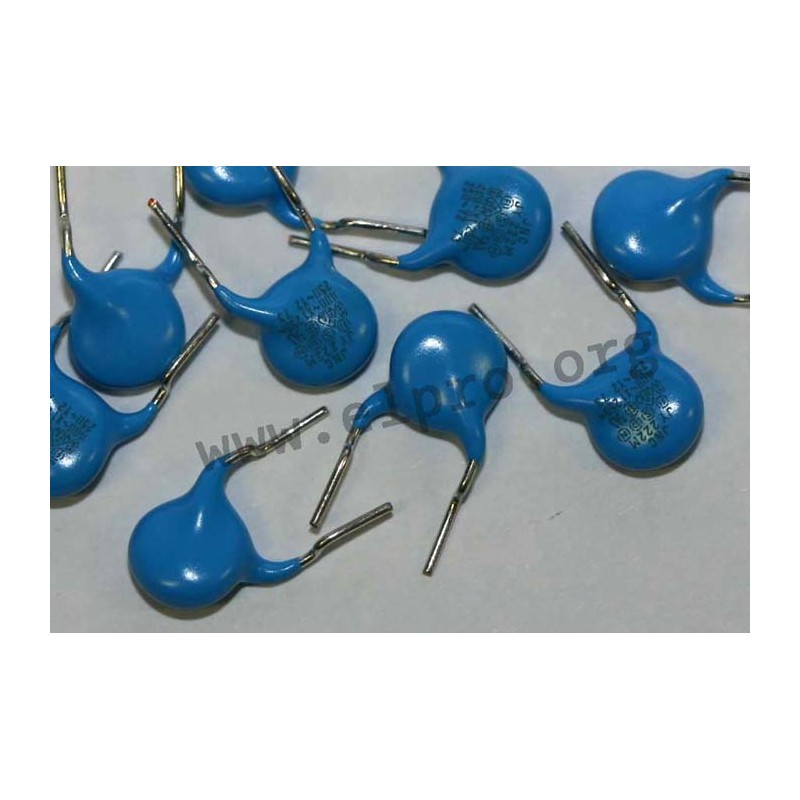

K 4700 pF X1/Y2 RM 7,5

ceramic suppression capacitors X1/Y2

• minimum reinforced insulation: 0.4mm
• coated with flame-retardant epoxy resin conforming to UL94-0
• by Jya-Nay
• rated voltage (50/60Hz)
X1: 440V AC (UL/CSA 250V AC)
Y2: 250V AC
• temperature range: up -25 to +85°C
• test voltage (1min): 2600V AC
• insulation restistance: 10GΩ
• max. dissipation factor tan δ (1kHz, 1rms, 25°C): 2.5%

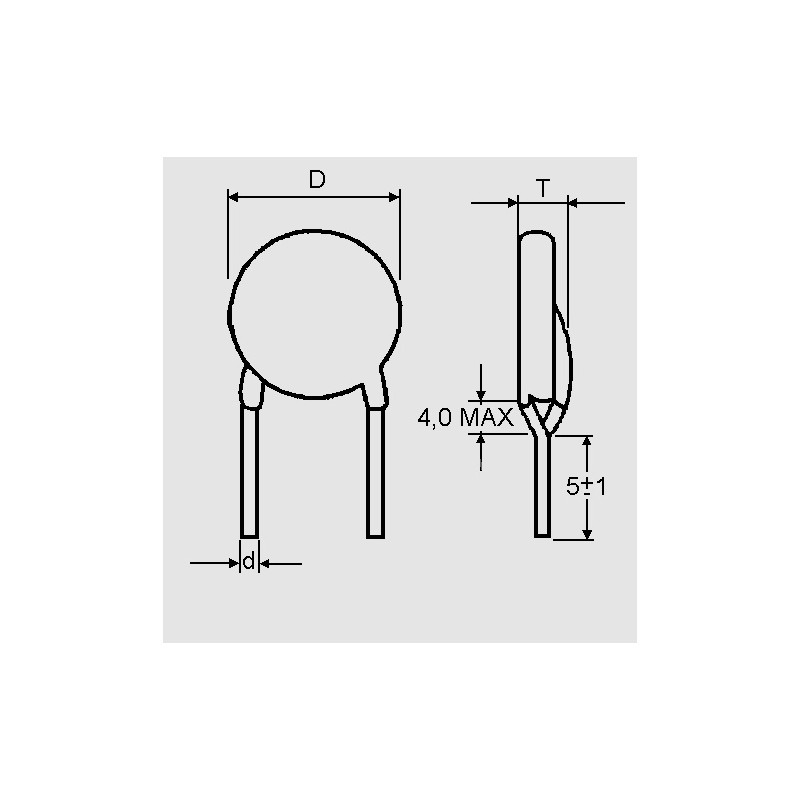

• max. body thickness (T): 8mm
• lead wire diameter (d): 0.65±0.05 mm

X1/Y2

K 4700 pF X1/Y2 RM 7,5

11436 K 4700 pF X1/Y2 RM 7,5 JY12F472MY75N+DL5MM JY12F472MY75N+DL5MM ceramic suppression capacitors X1/Y2 . • minimum reinforced insulation: 0.4mm• coated with flame-retardant epoxy resin conforming to UL94-0• by Jya-Nay• rated voltage (50/60Hz) X1: 440V AC (UL/CSA 250V AC)Y2: 250V AC• temperature range: up -25 to +85°C• test voltage (1min): 2600V AC• insulation restistance: 10GΩ• max. dissipation factor tan δ (1kHz, 1rms, 25°C): 2.5%• max. body thickness (T): 8mm• lead wire diameter (d): 0.65±0.05 mm

Specifications

manufacturer
Manufacturer's name JY12F472MY75...
Design loose
Dmax. [mm] 14
Material Y5V
Tolerance -30/+80
Pitch [mm] 7,5
Capacity [pF] 4700
Data Sheet

Unit price

0,141 €

Stock: 3795
Next incoming goods:
CW 04/2025
2600 units

Further delivery:
CW 20/2025

Minimum order quantity 1 to 45 units or multiples of 100 plus 0 to 45 .
