K 220 pF X1/Y1 RM 12,5

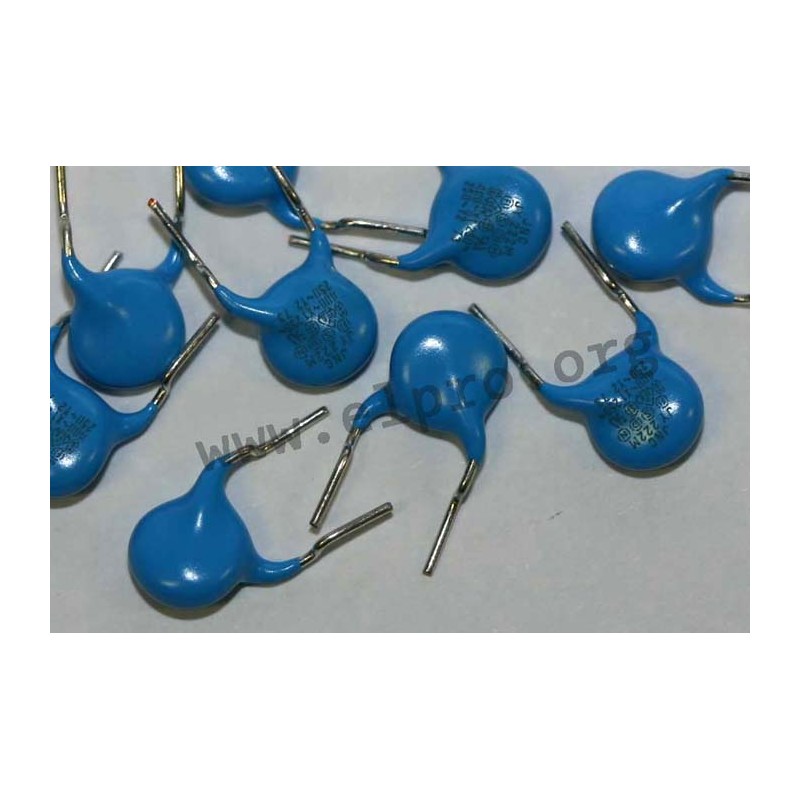

ceramic suppression capacitors X1/Y1

• minimum reinforced insulation: 0.4mm
• coated with flame-retardant epoxy resin conforming to UL94-0
• by Jya-Nay
• rated voltage (50/60Hz)
X1: 440V AC (UL/CSA 250V AC)
Y1: 250V AC
• temperature range: up -25 to +85°C
• test voltage (1min): 4000V AC
• insulation restistance: 10GΩ
• max. dissipation factor tan δ (1kHz, 1rms, 25°C): ≤2.5%

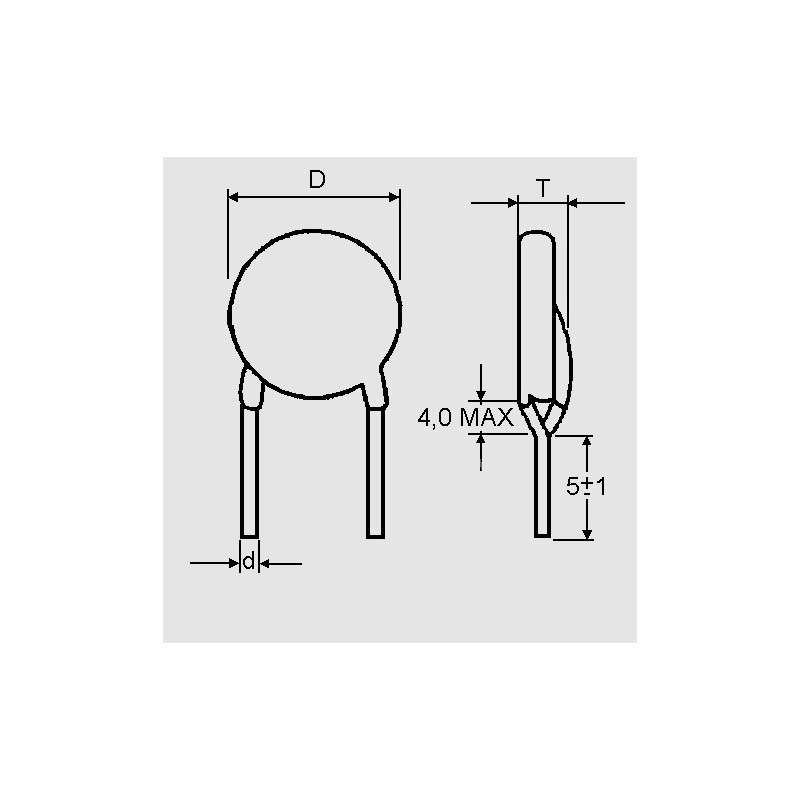

• max. body thickness (T): 8mm
• lead wire diameter (d): 0.65±0.05 mm

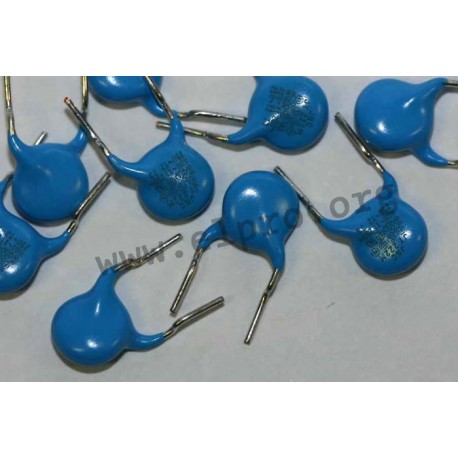

X1/Y2

K 220 pF X1/Y1 RM 12,5

11420 K 220 pF X1/Y1 RM 12,5 JN09B221KY12N+DL25MM JN09B221KY12N+DL25MM ceramic suppression capacitors X1/Y1 . • minimum reinforced insulation: 0.4mm• coated with flame-retardant epoxy resin conforming to UL94-0• by Jya-Nay• rated voltage (50/60Hz) X1: 440V AC (UL/CSA 250V AC)Y1: 250V AC• temperature range: up -25 to +85°C• test voltage (1min): 4000V AC• insulation restistance: 10GΩ• max. dissipation factor tan δ (1kHz, 1rms, 25°C): ≤2.5%• max. body thickness (T): 8mm• lead wire diameter (d): 0.65±0.05 mm

Specifications

manufacturer
Manufacturer's name JN09B221KY12...
Design loose
Dmax. [mm] 9
Material Y5P
Pitch [mm] 12,5
Tolerance [%] ±10
Capacity [pF] 220
Data Sheet

Unit price

0,093 €

Stock: 1050
Further delivery:
CW 15/2025

Minimum order quantity 100 units or
multiples of 100.
