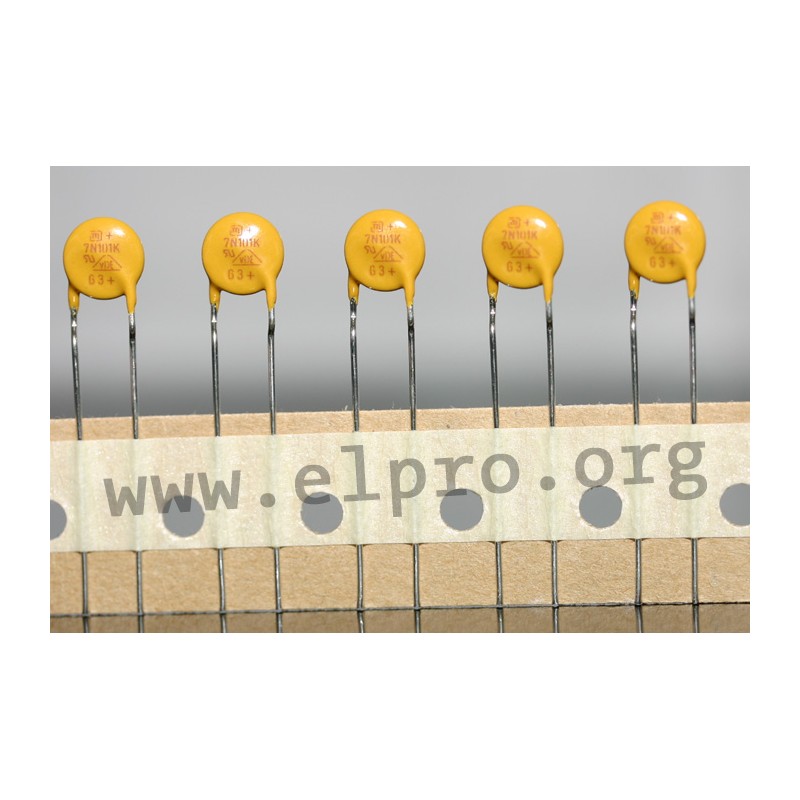

V 60V 600mW

metal oxide varistors

* material: zinc oxide (ZnΩ)
* operating temperature, max.: +85°C
* working surface temperature, max.: +115°C
* response time, max.: 25ns
* voltage/temperature coefficient: -0.05%/°C
* insulation resistance 500V: >1000MΩ
* used as voltage-dependent resistors (VDR's) to protect electronic devices
* they protect against overload build-up and protect valuable equipment from power surge damage
* surge voltages are absorbed in the varistor
selection criteria
* the maximum operating voltage must be lower than the varistor voltage.

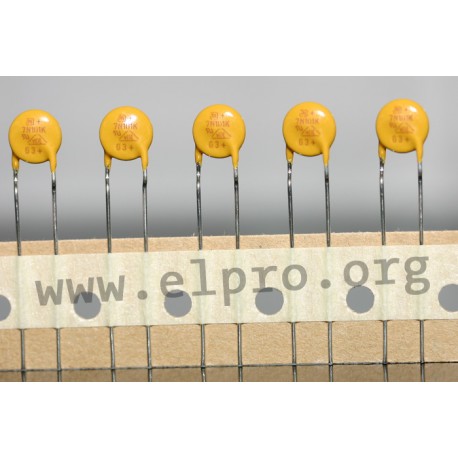

varistors

V 60V 600mW

5709 V 60V 600mW JVR14N101K87YAW JVR14N101K87YAW metal oxide varistors. * material: zinc oxide (ZnΩ)* operating temperature, max.: +85°C* working surface temperature, max.: +115°C* response time, max.: 25ns* voltage/temperature coefficient: -0.05%/°C* insulation resistance 500V: >1000MΩ* used as voltage-dependent resistors (VDR's) to protect electronic devices* they protect against overload build-up and protect valuable equipment from power surge damage* surge voltages are absorbed in the varistorselection criteria* the maximum operating voltage must be lower than the varistor voltage.

Specifications

manufacturer
Manufacturer's name JVR14N101K87YAW
Design taped
Height [mm] 22
(Max.) RMS voltage [V] 60
Varistor voltage at 1mA [V] 100
Supply voltage [V] 175
Tolerance of varistor voltage [%] ±10
T [mm] 4
D [mm] 0,8
F [mm] 7,5
Length [mm] 24

Unit price

0,111 €

Stock: 2
Next incoming goods:
CW 50/2024
4450 units

Further delivery:
CW 16/2025

Minimum order quantity 1 to 2 units or multiples of 50 plus 0 to 2 .
