V 460V 1000mW

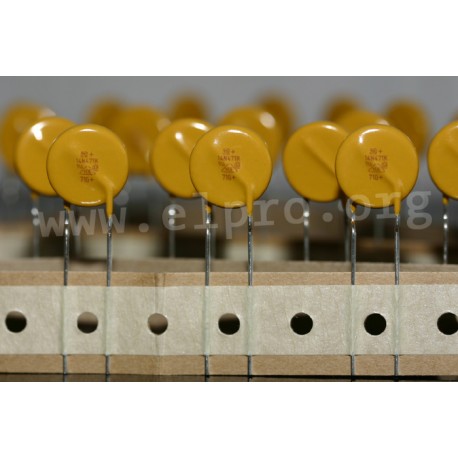

metal oxide varistors

* material: zinc oxide (ZnΩ)
* operating temperature, max.: +85°C
* working surface temperature, max.: +115°C
* response time, max.: 25ns
* voltage/temperature coefficient: -0.05%/°C
* insulation resistance 500V: >1000MΩ
* used as voltage-dependent resistors (VDR's) to protect electronic devices
* they protect against overload build-up and protect valuable equipment from power surge damage
* surge voltages are absorbed in the varistor
selection criteria
* the maximum operating voltage must be lower than the varistor voltage.

varistors

V 460V 1000mW

5702 V 460V 1000mW JVR20N751K11YU4 JVR20N751K11YU4 metal oxide varistors. * material: zinc oxide (ZnΩ)* operating temperature, max.: +85°C* working surface temperature, max.: +115°C* response time, max.: 25ns* voltage/temperature coefficient: -0.05%/°C* insulation resistance 500V: >1000MΩ* used as voltage-dependent resistors (VDR's) to protect electronic devices* they protect against overload build-up and protect valuable equipment from power surge damage* surge voltages are absorbed in the varistorselection criteria* the maximum operating voltage must be lower than the varistor voltage.

Specifications

manufacturer
Manufacturer's name JVR20N751K11YU4
Design loose
Height [mm] 28
(Max.) RMS voltage [V] 460
Varistor voltage at 1mA [V] 750
Supply voltage [V] 1240
Tolerance of varistor voltage [%] ±10
T [mm] 8,5
D [mm] 1
F [mm] 10
Length [mm] 24

Unit price

0,309 €

Stock: 925
Further delivery:
CW 15/2025

Minimum order quantity 25 units or
multiples of 25.
