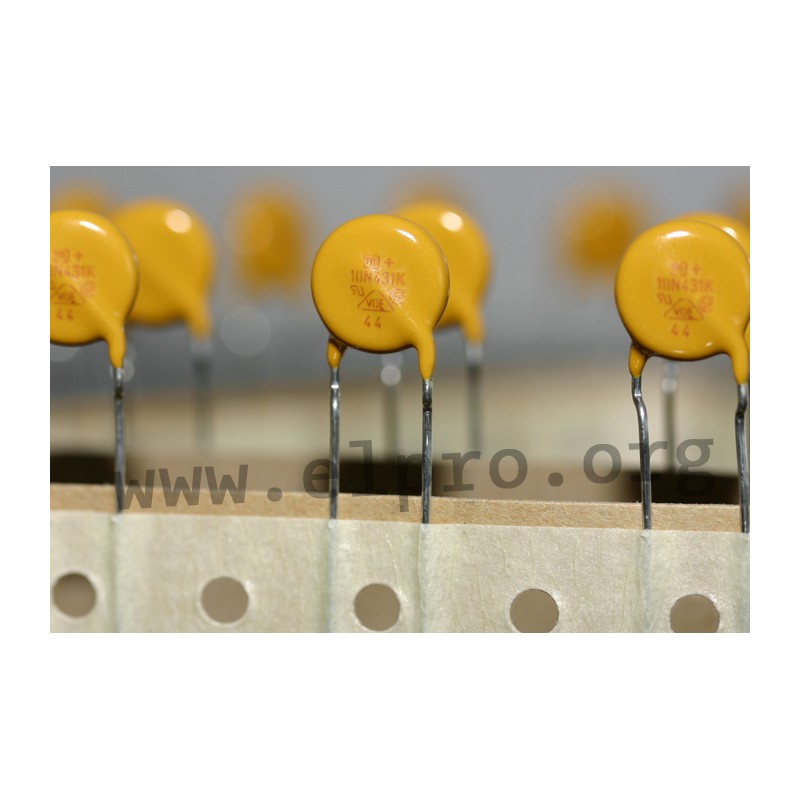

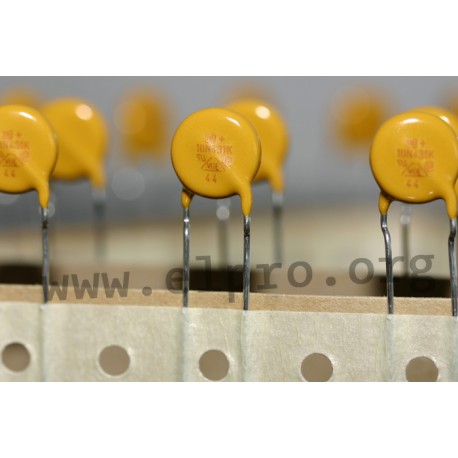

V 275V 600mW

metal oxide varistors

• material: zinc oxide (ZnΩ)
• operating temperature, max.: +85°C
• working surface temperature, max.: +115°C
• response time, max.: 25ns
• voltage/temperature coefficient: -0.05%/°C
• insulation resistance 500V: >1000MΩ
• used as voltage-dependent resistors (VDR's) to protect electronic devices
• they protect against overload build-up and protect valuable equipment from power surge damage
• surge voltages are absorbed in the varistor
selection criteria
• the maximum operating voltage must be lower than the varistor voltage.

V 275V

V 275V 600mW

5693 V 275V 600mW JVR14N431K87YAW JVR14N431K87YAW metal oxide varistors. * material: zinc oxide (ZnΩ)* operating temperature, max.: +85°C* working surface temperature, max.: +115°C* response time, max.: 25ns* voltage/temperature coefficient: -0.05%/°C* insulation resistance 500V: >1000MΩ* used as voltage-dependent resistors (VDR's) to protect electronic devices* they protect against overload build-up and protect valuable equipment from power surge damage* surge voltages are absorbed in the varistorselection criteria* the maximum operating voltage must be lower than the varistor voltage.

Specifications

manufacturer
Manufacturer's name JVR14N431K87YAW
Design taped
Height [mm] 22
(Max.) RMS voltage [V] 275
Varistor voltage at 1mA [V] 430
Supply voltage [V] 710
Tolerance of varistor voltage [%] ±10

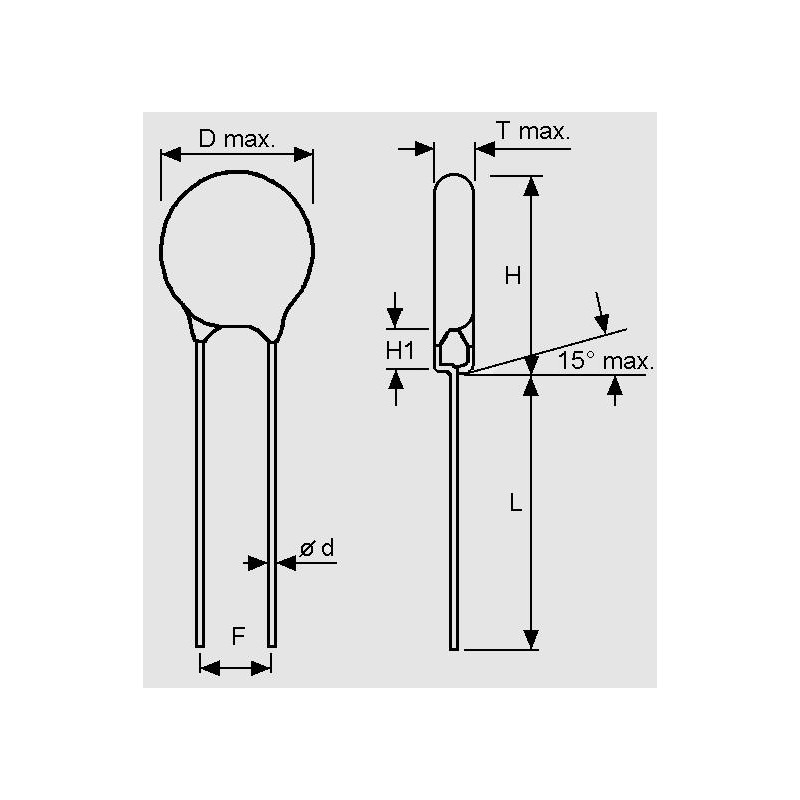

T [mm] 6,6
D [mm] 0,8
F [mm] 7,5
Length [mm] 24

Unit price

0,098 €

Stock: 12
Next incoming goods:
CW 19/2025
19.200 units

Further delivery:
CW 34/2025

Minimum order quantity 1 to 12 units or multiples of 50 plus 0 to 12 .
