V 275V 250mW

metal oxide varistors

• material: zinc oxide (ZnΩ)
• operating temperature, max.: +85°C
• working surface temperature, max.: +115°C
• response time, max.: 25ns
• voltage/temperature coefficient: -0.05%/°C
• insulation resistance 500V: >1000MΩ
• used as voltage-dependent resistors (VDR's) to protect electronic devices
• they protect against overload build-up and protect valuable equipment from power surge damage
• surge voltages are absorbed in the varistor
selection criteria
• the maximum operating voltage must be lower than the varistor voltage.

V 275V 250mW

V 275V 250mW

5691 V 275V 250mW JVR07N431K65YAW JVR07N431K65YAW metal oxide varistors. * material: zinc oxide (ZnΩ)* operating temperature, max.: +85°C* working surface temperature, max.: +115°C* response time, max.: 25ns* voltage/temperature coefficient: -0.05%/°C* insulation resistance 500V: >1000MΩ* used as voltage-dependent resistors (VDR's) to protect electronic devices* they protect against overload build-up and protect valuable equipment from power surge damage* surge voltages are absorbed in the varistorselection criteria* the maximum operating voltage must be lower than the varistor voltage.

Specifications

manufacturer
Manufacturer's name JVR07N431K65YAW
Design taped
Height [mm] 13
(Max.) RMS voltage [V] 275
Varistor voltage at 1mA [V] 430
Supply voltage [V] 710
Tolerance of varistor voltage [%] ±10

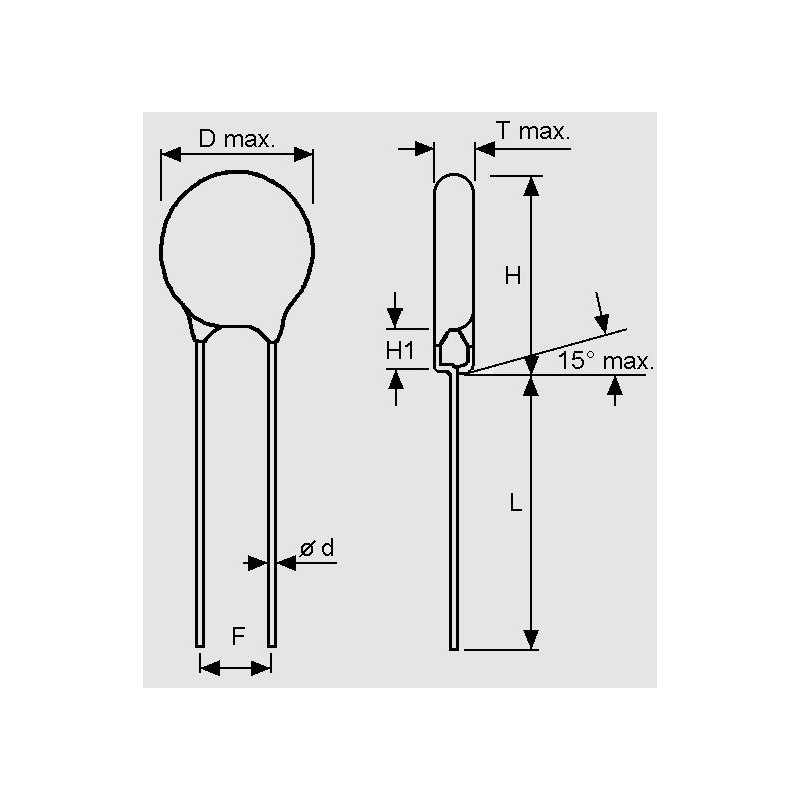

T [mm] 5,5
D [mm] 0,6
F [mm] 5
Length [mm] 24

Unit price

0,041 €

Stock: 12.900
Next incoming goods:
CW 19/2025
50.000 units

Further delivery:
CW 34/2025

Minimum order quantity 50 units or
multiples of 50.
