> Passive elements>NTCs/PTCs/varistors>Varistors>Joyin metal oxide varistors, pitch 5/7,5/10mm, JVR series>V 250V 600mW

Manufacturers

V 250V 600mW

metal oxide varistors

• material: zinc oxide (ZnΩ)
• operating temperature, max.: +85°C
• working surface temperature, max.: +115°C
• response time, max.: 25ns
• voltage/temperature coefficient: -0.05%/°C
• insulation resistance 500V: >1000MΩ
• used as voltage-dependent resistors (VDR's) to protect electronic devices
• they protect against overload build-up and protect valuable equipment from power surge damage
• surge voltages are absorbed in the varistor
selection criteria
• the maximum operating voltage must be lower than the varistor voltage.

varistors

V 250V 600mW

5684 V 250V 600mW JVR14N391K87YAW JVR14N391K87YAW metal oxide varistors. * material: zinc oxide (ZnΩ)* operating temperature, max.: +85°C* working surface temperature, max.: +115°C* response time, max.: 25ns* voltage/temperature coefficient: -0.05%/°C* insulation resistance 500V: >1000MΩ* used as voltage-dependent resistors (VDR's) to protect electronic devices* they protect against overload build-up and protect valuable equipment from power surge damage* surge voltages are absorbed in the varistorselection criteria* the maximum operating voltage must be lower than the varistor voltage.

Specifications

manufacturer
Manufacturer's name JVR14N391K87YAW
Design taped
Height [mm] 22
(Max.) RMS voltage [V] 250
Varistor voltage at 1mA [V] 350
Supply voltage [V] 650
Tolerance of varistor voltage [%] ±10

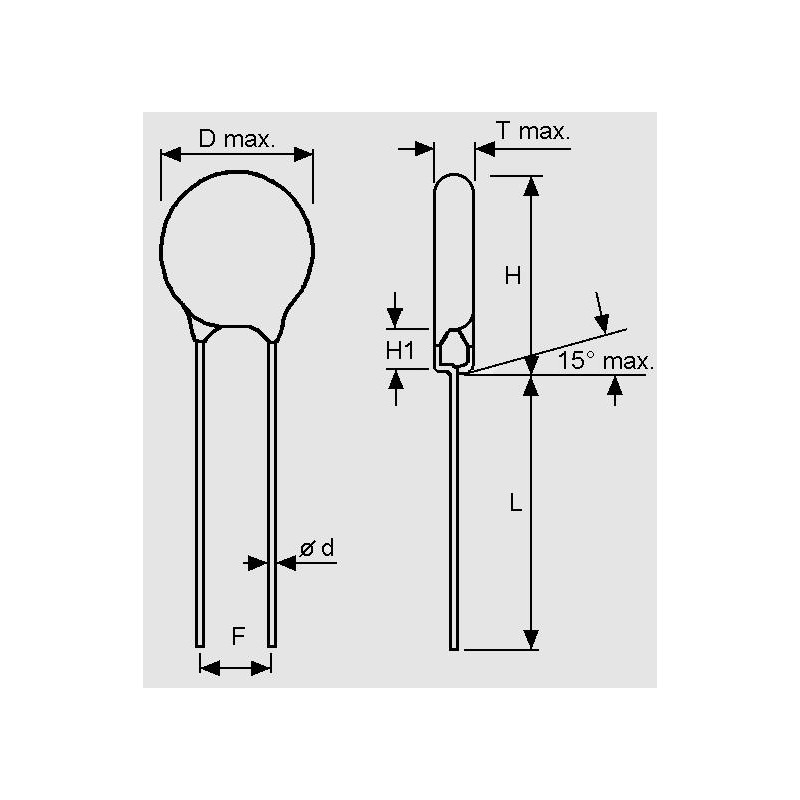

T [mm] 5,9
D [mm] 0,8
F [mm] 7,5
Length [mm] 24

Unit price

0,097 €

Stock: 3.355
Next incoming goods:
CW 27/2025
3.000 units

Further delivery:
CW 35/2025

Minimum order quantity 1 to 5 units or multiples of 50 plus 0 to 5 .
