V 250V 1000mW

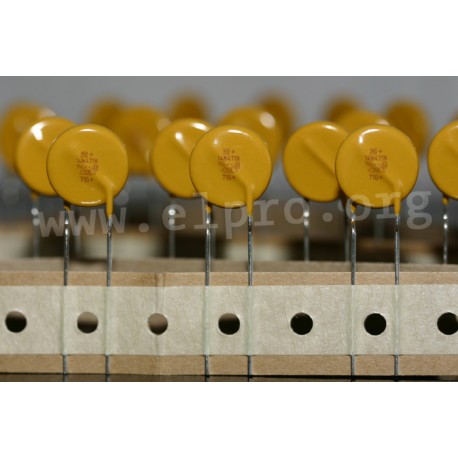

metal oxide varistors

• material: zinc oxide (ZnΩ)
• operating temperature, max.: +85°C
• working surface temperature, max.: +115°C
• response time, max.: 25ns
• voltage/temperature coefficient: -0.05%/°C
• insulation resistance 500V: >1000MΩ
• used as voltage-dependent resistors (VDR's) to protect electronic devices
• they protect against overload build-up and protect valuable equipment from power surge damage
• surge voltages are absorbed in the varistor
selection criteria
• the maximum operating voltage must be lower than the varistor voltage.

varistors

V 250V 1000mW

5680 V 250V 1000mW JVR20N391K11YU4 JVR20N391K11YU4 metal oxide varistors. * material: zinc oxide (ZnΩ)* operating temperature, max.: +85°C* working surface temperature, max.: +115°C* response time, max.: 25ns* voltage/temperature coefficient: -0.05%/°C* insulation resistance 500V: >1000MΩ* used as voltage-dependent resistors (VDR's) to protect electronic devices* they protect against overload build-up and protect valuable equipment from power surge damage* surge voltages are absorbed in the varistorselection criteria* the maximum operating voltage must be lower than the varistor voltage.

Specifications

manufacturer
Manufacturer's name JVR20N391K11YU4
Design loose
Height [mm] 28
(Max.) RMS voltage [V] 250
Varistor voltage at 1mA [V] 350
Supply voltage [V] 650
Tolerance of varistor voltage [%] ±10
T [mm] 6,4
D [mm] 1
F [mm] 10
Length [mm] 24

Unit price

0,218 €

Stock: 571
Next incoming goods:
CW 19/2025
1.000 units

Further delivery:
CW 32/2025

Minimum order quantity 1 to 21 units or multiples of 25 plus 0 to 21 .
