> Passive elements>NTCs/PTCs/varistors>Varistors>Joyin metal oxide varistors, pitch 5/7,5/10mm, JVR series>V 150V 250mW

Manufacturers

V 150V 250mW

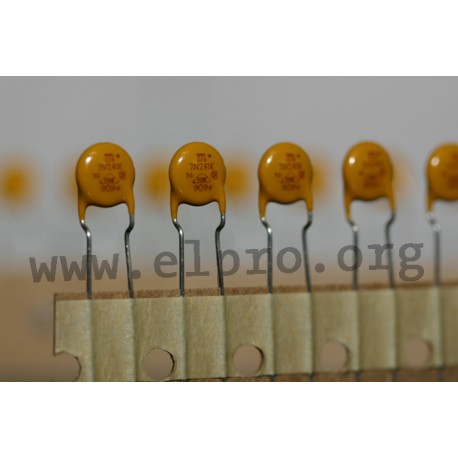

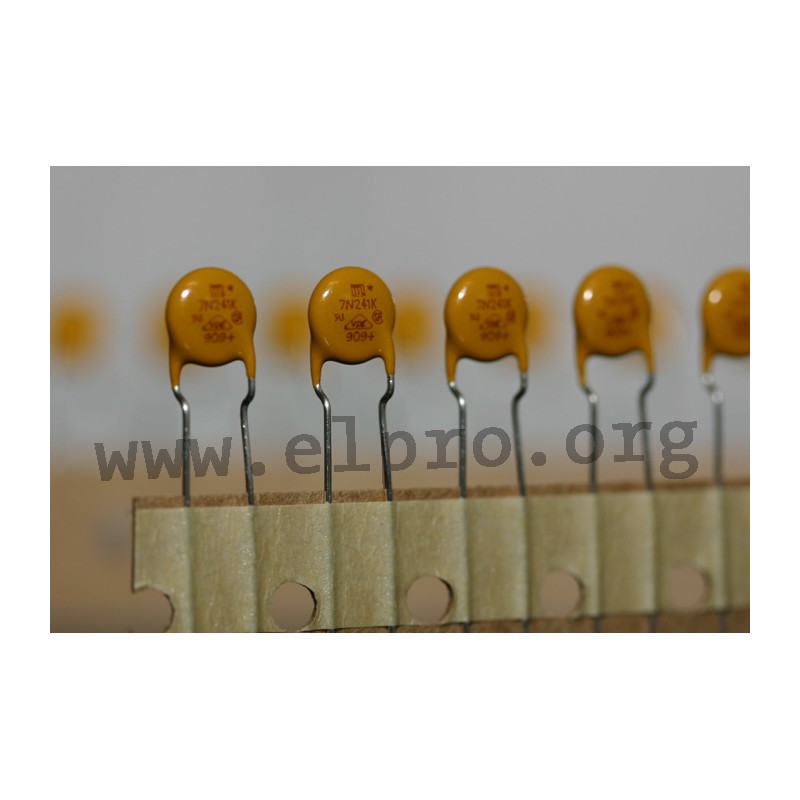

metal oxide varistors

* material: zinc oxide (ZnΩ)
* operating temperature, max.: +85°C
* working surface temperature, max.: +115°C
* response time, max.: 25ns
* voltage/temperature coefficient: -0.05%/°C
* insulation resistance 500V: >1000MΩ
* used as voltage-dependent resistors (VDR's) to protect electronic devices
* they protect against overload build-up and protect valuable equipment from power surge damage
* surge voltages are absorbed in the varistor
selection criteria
* the maximum operating voltage must be lower than the varistor voltage.

V 150V 250mW

V 150V 250mW

5677 V 150V 250mW JVR07N241K65YAW JVR07N241K65YAW metal oxide varistors. * material: zinc oxide (ZnΩ)* operating temperature, max.: +85°C* working surface temperature, max.: +115°C* response time, max.: 25ns* voltage/temperature coefficient: -0.05%/°C* insulation resistance 500V: >1000MΩ* used as voltage-dependent resistors (VDR's) to protect electronic devices* they protect against overload build-up and protect valuable equipment from power surge damage* surge voltages are absorbed in the varistorselection criteria* the maximum operating voltage must be lower than the varistor voltage.

Specifications

manufacturer
Manufacturer's name JVR07N241K65YAW
Design taped
Height [mm] 13
(Max.) RMS voltage [V] 150
Varistor voltage at 1mA [V] 240
Supply voltage [V] 395
Tolerance of varistor voltage [%] ±10

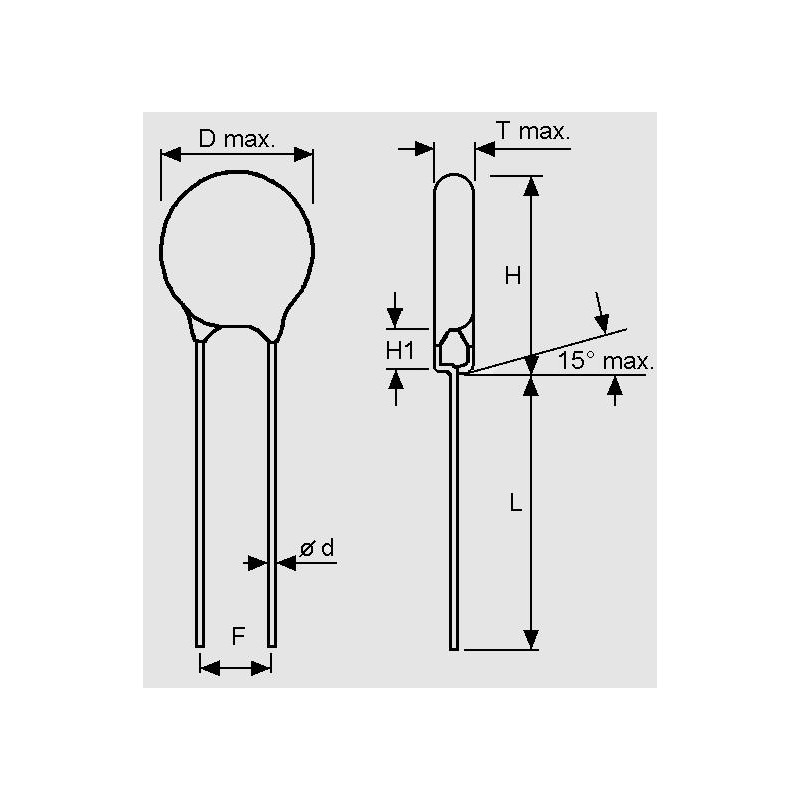

T [mm] 4,4
D [mm] 0,6
F [mm] 5
Length [mm] 24

Unit price

0,039 €

Stock: 7440
Further delivery:
CW 13/2025

Minimum order quantity 1 to 40 units or multiples of 50 plus 0 to 40 .
