IRL 540 NS reel

Infineon SMD MOSFET series IRF/IRFS/IRL/IRLS

  • SMD power MOSFETs
  • in a D²Pak housing
  • International Rectifier HEXFET®
  • bulk and taped (IRF_/IRL_ reel)

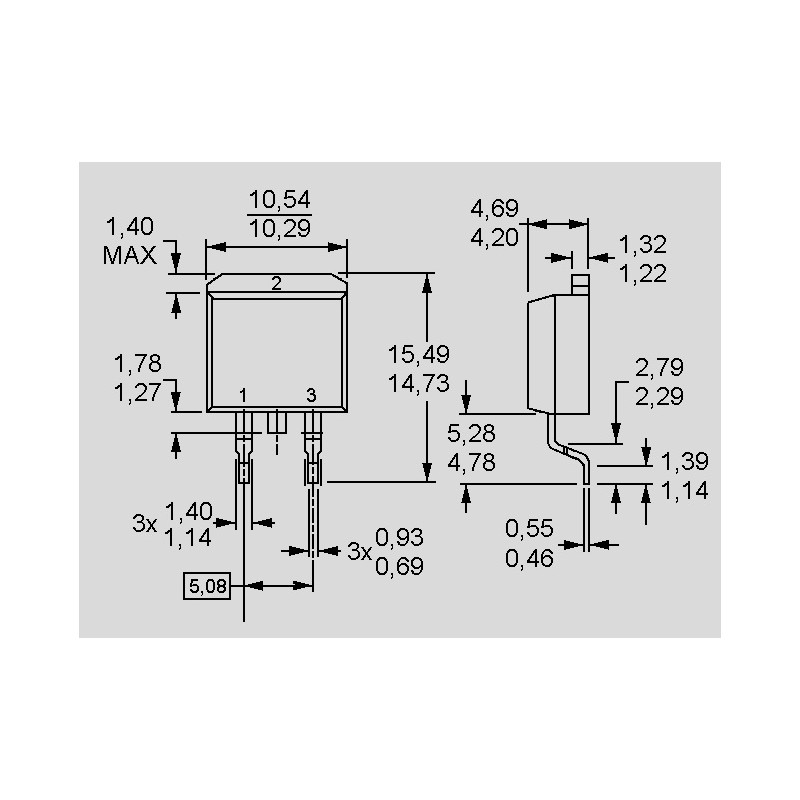

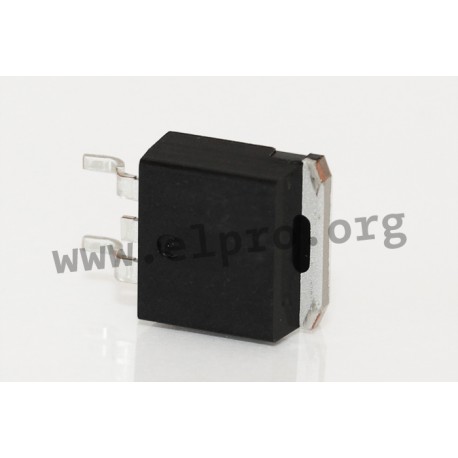

D²Pak

IRL 540 NS reel

107387 IRL 540 NS reel IRL540NSTRLPBF IRL540NSTRLPBF Infineon SMD MOSFET series IRF/IRFS/IRL/IRLS . SMD power MOSFETs in a D²Pak housing International Rectifier HEXFET® bulk and taped (IRF_/IRL_ reel)

Specifications

manufacturer
Manufacturer's name IRL540NSTRLPBF
Case D²Pak
Design taped
Max. drain-source voltage [V] 100
Max. drain-source on-resistance [Ω] 0,044
Turn-on delay time [ns] 11
Max. continuous drain current TC = 25°C [A] 36
Min. gate threshold voltage [V] 1
Turn-off delay time [ns] 39
Data Sheet

Unit price

0,652 €

Stock: 1980
Further delivery:
CW 06/2025

Minimum order quantity 10 units or
multiples of 10.
