IRLHS 2242 reel

Infineon SMD MOSFET series IRF and IRL

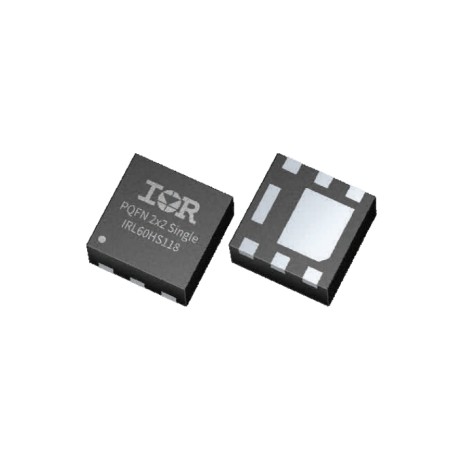

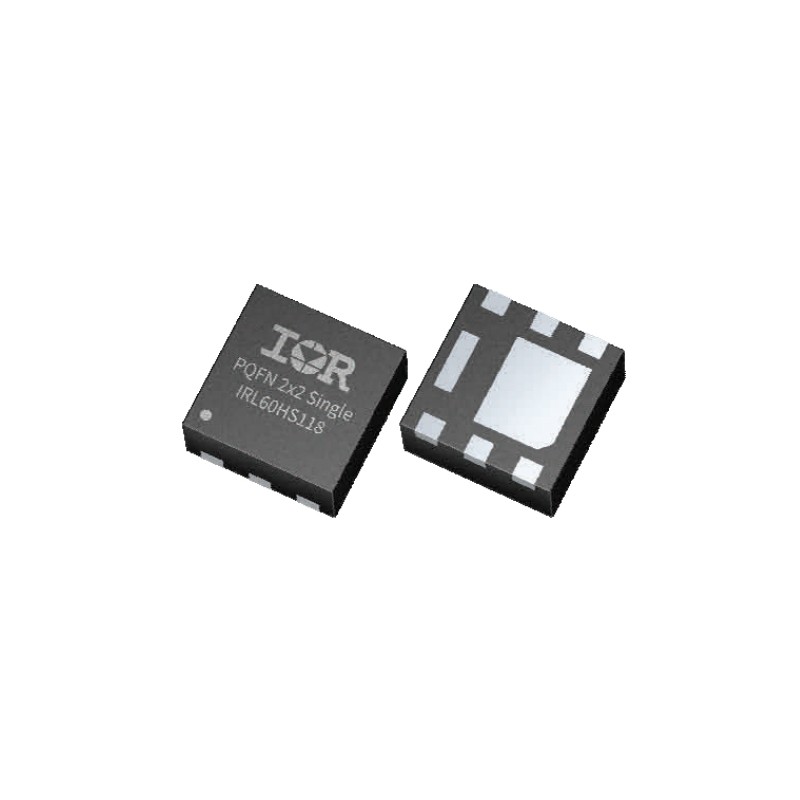

N-channel power MOSFETs in a PQFN6 housing with a low ON resistance. These transistors are suitable for direct PCB mounting and have a low profile. They are suitable for various applications. We offer the following types of this Infineon series: IRFHS8242TRPBF, IRFHS8342TRPBF, IRFHS9301TRPBF, IRFHS9351TRPBF, IRL60HS118, IRLHS2242TRPBF, IRLHS6242TRPBF, IRLHS6276TRPBF and IRLHS6376TRPBF.

  • N-Channel MOSFETs
  • housing: PQFN6
  • RDSON: 0,0117 to 0,17Ω
  • drain-source voltage: 20 to 60V
  • drain current: 2,3 to 10A
IRLHS2242TRPBF, Infineon SMD power MOSFETs, PQFN housing, IRF and IRL series

IRLHS 2242 reel

244390 IRLHS 2242 reel IRLHS2242TRPBF IRLHS2242TRPBF Infineon SMD MOSFET series IRF and IRL. N-channel power MOSFETs in a PQFN6 housing with a low ON resistance. These transistors are suitable for direct PCB mounting and have a low profile. They are suitable for various applications. We offer the following types of this Infineon series: IRFHS8242TRPBF, IRFHS8342TRPBF, IRFHS9301TRPBF, IRFHS9351TRPBF, IRL60HS118, IRLHS2242TRPBF, IRLHS6242TRPBF, IRLHS6276TRPBF and IRLHS6376TRPBF. N-Channel MOSFETs housing: PQFN6 RDSON: 0,0117 to 0,17Ω drain-source voltage: 20 to 60V drain current: 2,3 to 10A

Specifications

manufacturer
Manufacturer's name IRLHS2242TRPBF
Case PQFN6
Max. drain-source voltage [V] 20
Max. drain-source on-resistance [Ω] 0,031
Max. continuous drain current TC = 25°C [A] 7,2
Data Sheet

Unit price

0,166 €

Stock: 3500
Further delivery:
CW 10/2025

Minimum order quantity 50 units or
multiples of 50.
