IDK 06 G 65C5

Infineon Schottky diode series IDK

  • SMD Sic Schottky diodes
  • in a D²Pak housing
  • no reverse/forward recovery
  • temperature independent switching behaviour
  • extremly fast switching
  • optimized for high temperature operation
  • operating temperature: -55 to +175°C

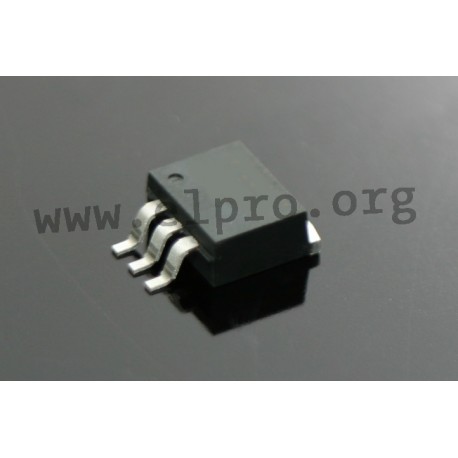

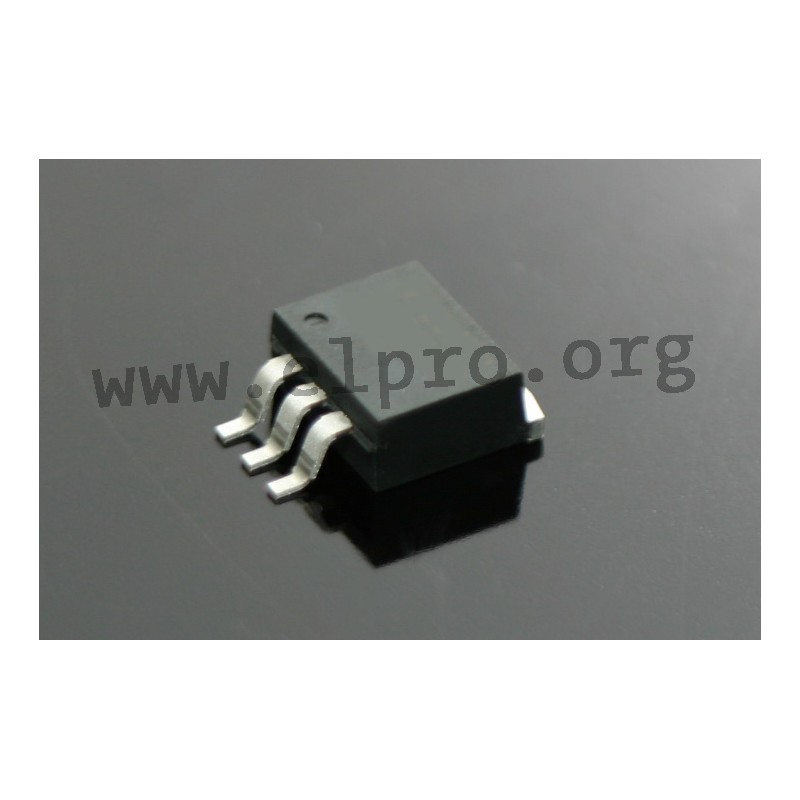

D²Pak

IDK 06 G 65C5

45622 IDK 06 G 65C5 IDK06G65C5XTMA2 IDK06G65C5XTMA2 Infineon Schottky diode series IDK. SMD Sic Schottky diodes in a D²Pak housing no reverse/forward recovery temperature independent switching behaviour extremly fast switching optimized for high temperature operation operating temperature: -55 to +175°C

Specifications

manufacturer
Manufacturer's name IDK06G65C5XTMA2
Case D²Pak
Ripple Current (105°C, 100kHz) [mA] 1,1
(Max.) peak recurrent reverse voltage [V] 650
Forward voltage [V] 1,8
(Max.) average forward (rectified) current [A] 6
Data Sheet

Unit price

0,938 €

Stock: 1000
Further delivery:
CW 18/2025

Minimum order quantity 5 units or
multiples of 5.
