IDH 05 G 120C5

Infineon Schottky diode series IDH

  • SiC Schottky diodes

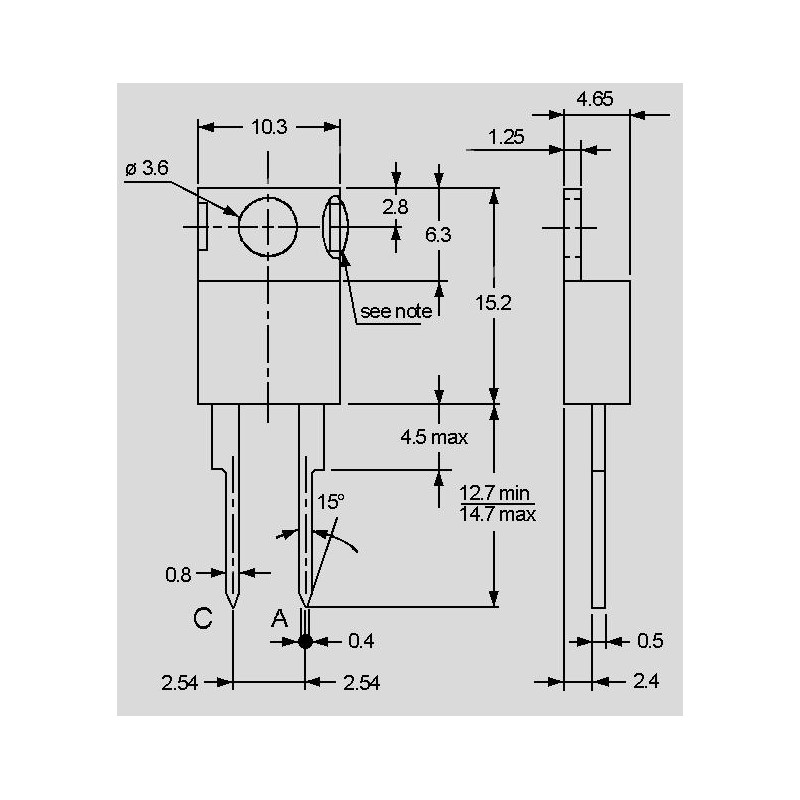

  • in a TO220AC housing
  • suitable for extremly fast switching
  • no forward resp. reverse recovery
  • operating temperature: -55 to +175°C
Infineon IDH series

IDH 05 G 120C5

110020 IDH 05 G 120C5 IDH05G120C5XKSA1 IDH05G120C5XKSA1 Infineon Schottky diode series IDH. SiC Schottky diodes in a TO220AC housing suitable for extremly fast switching no forward resp. reverse recovery operating temperature: -55 to +175°C

Specifications

manufacturer
Manufacturer's name IDH05G120C5XKSA1
Case TO220AC
Reverse current [mA] 0,033
(Max.) peak recurrent reverse voltage [V] 1200
Forward voltage [V] 1,8
(Max.) average forward (rectified) current [A] 5

Unit price

2,09 €

Stock: 270
Further delivery:
CW 20/2025

Minimum order quantity 5 units or
multiples of 5.
