FP 25 R 12 W2T4

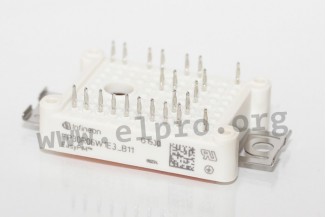

Infineon IGBT module series FP

  • converter brake inverter modules
  • in an EASY_ resp. ECONO_ housing
  • EasyPIM™ / EconoPIM™

FP 25 R 12 W2T4 FP25R12W2T4BOMA1

FP 25 R 12 W2T4

44872 FP 25 R 12 W2T4 FP25R12W2T4BOMA1 FP25R12W2T4BOMA1 Infineon IGBT module series FP. converter brake inverter modules in an EASY_ resp. ECONO_ housing EasyPIM™ / EconoPIM™

Specifications

manufacturer
Manufacturer's name FP25R12W2T4BOMA1
Case EASY2B-1
Peak forward surge current [A] 450
(Max.) peak recurrent reverse voltage [V] 1600
(Max.) average forward (rectified) current [A] 60
Power dissipation [mW] 175
Turn-on delay time [ns] -
Max. collector-emitter breakdown voltage [V] 1200
Min. gate threshold voltage [V] -
Max. collector current, pulsed [A] -
Turn-off delay time [ns] -
Max. continuous collector current at TC = 25°C 39
Data Sheet

Unit price

48,89 €

Stock: 10
