BCR 505

Infineon SMD transistor series BCR

  • digital transistors (SMD)
  • in an SOT23 (BCR_), SOT323 (BCR_ W) and SOT363 housing (BCR_ S)
  • suitable for direct PCB mounting

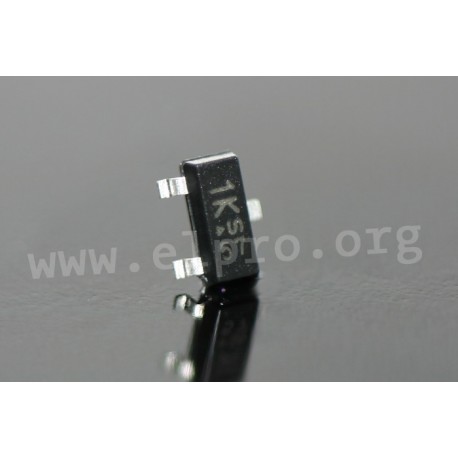

SOT23

BCR 505

34374 BCR 505 BCR505E6327HTSA1 BCR505E6327HTSA1 Infineon SMD transistor series BCR. digital transistors (SMD) in an SOT23 (BCR_), SOT323 (BCR_ W) and SOT363 housing (BCR_ S) suitable for direct PCB mounting

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name BCR505E6327HTSA1

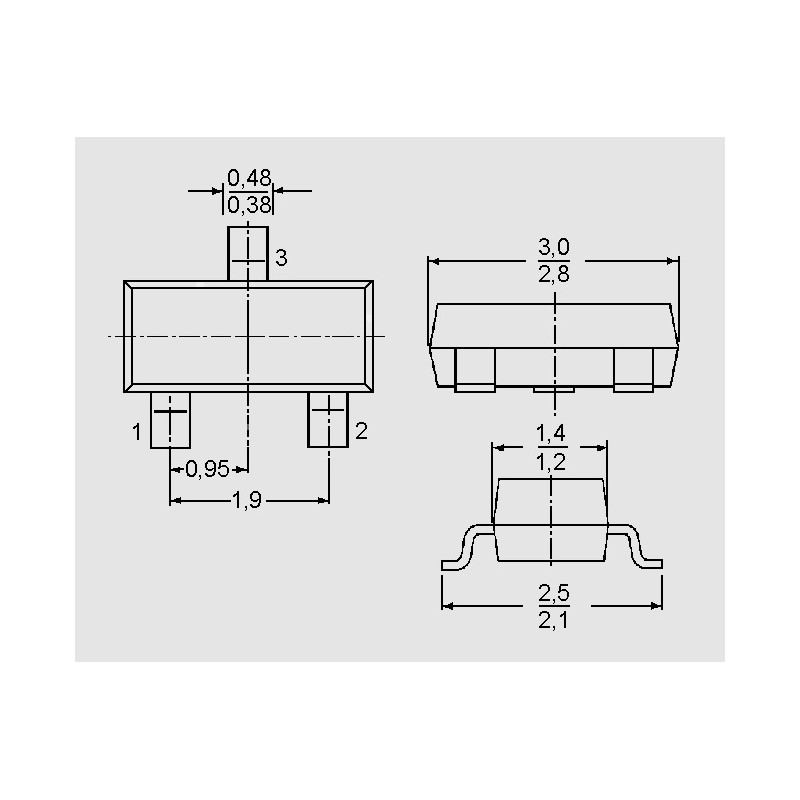

Case SOT23
Collector emitter voltage at open base [V] 50
Power dissipation [W] 0,33
Bias resistor 2 [kΩ] 10
Collector current [A] 0,5
Bias resistor 1 [kΩ] 2,2
Data Sheet

Unit price

0,065 €

Stock: 7875
Next incoming goods:
CW 03/2025
9000 units

Minimum order quantity 1 to 375 units or multiples of 500 plus 0 to 375 .
