> Semiconductors>Transistors>Bipolar transistors>Infineon SMD digital transistors, SOT23/SOT323/SOT363 housing, BCR series>BCR 198 W SMD

Manufacturers

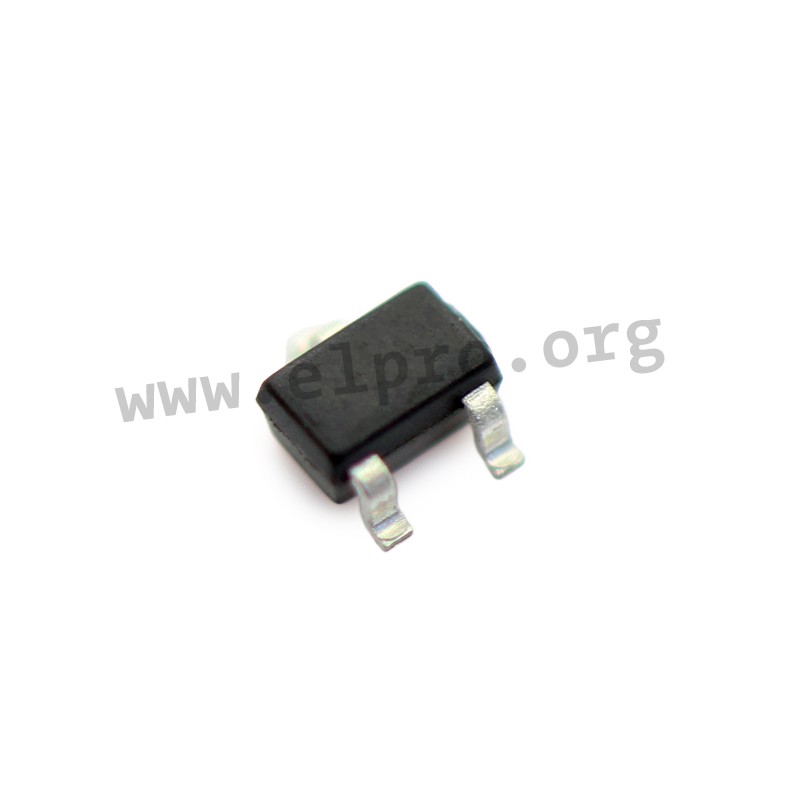

BCR 198 W SMD

Infineon SMD transistor series BCR

  • digital transistors (SMD)
  • in an SOT23 (BCR_), SOT323 (BCR_ W) and SOT363 housing (BCR_ S)
  • suitable for direct PCB mounting

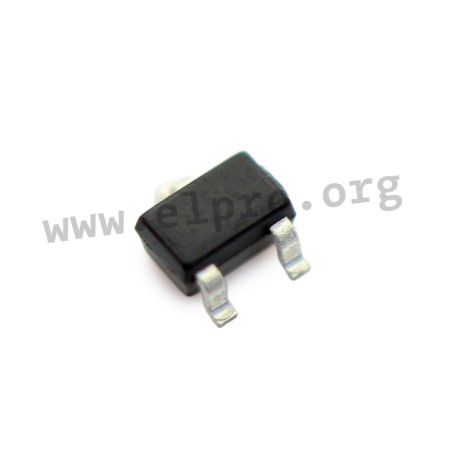

BCR198WH6327XTSA1, Infineon SMD digital transistors, SOT23/SOT323/SOT363 housing, BCR series

BCR 198 W SMD

19639 BCR 198 W SMD BCR198WH6327XTSA1 BCR198WH6327XTSA1 Infineon SMD transistor series BCR. digital transistors (SMD) in an SOT23 (BCR_), SOT323 (BCR_ W) and SOT363 housing (BCR_ S) suitable for direct PCB mounting

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name BCR198WH6327XTSA1

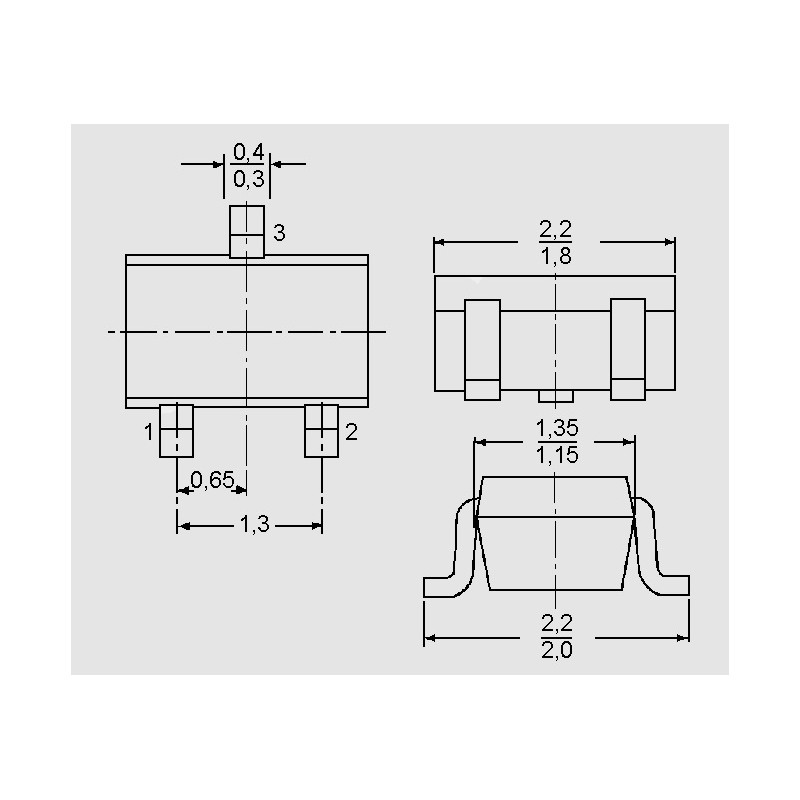

Case SOT323
Collector emitter voltage at open base [V] 50
Power dissipation [W] 0,25
Bias resistor 2 [kΩ] 47
Collector current [A] 0,07
Bias resistor 1 [kΩ] 47
Data Sheet

Unit price

0,054 €

Stock: 43850

Minimum order quantity 1 to 350 units or multiples of 500 plus 0 to 350 .
