F1500 20 A

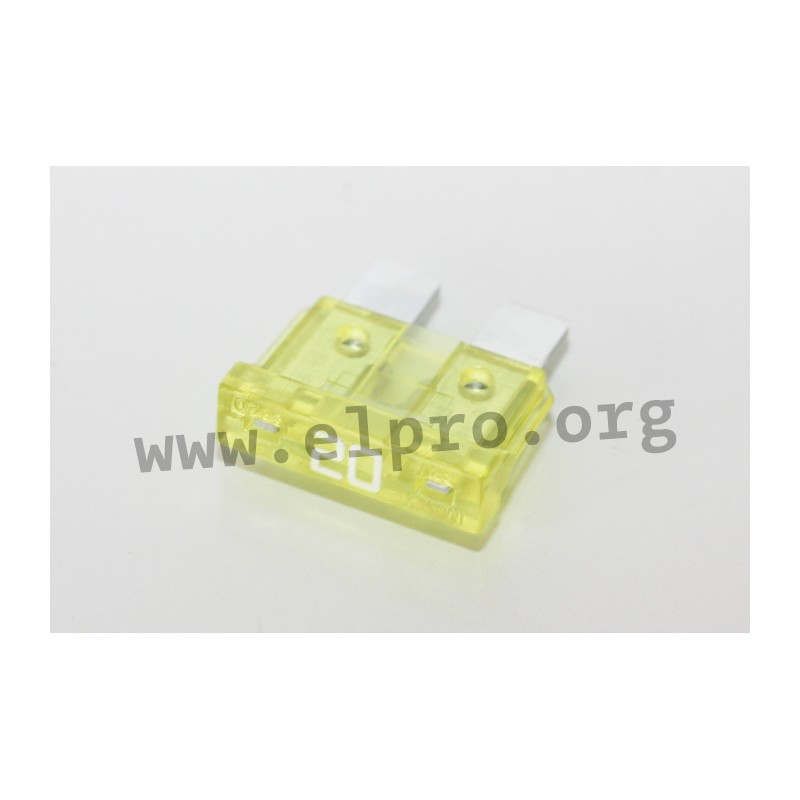

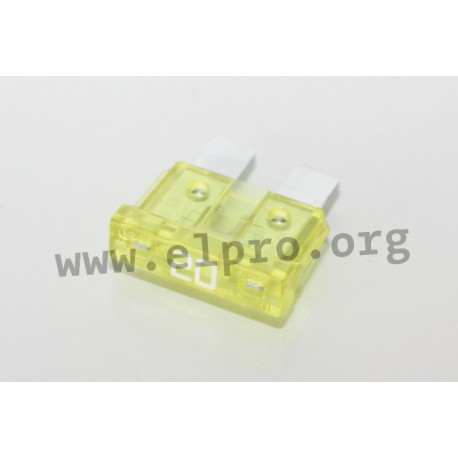

iMaXX automotive fuse series F1500

  • automotive blade type fuses in a self extinguishing, transparent, color coded case made of high temperature resisitve plastic
  • with a rating and a test point marked on top of the housing
  • comply with DIN 72581-3 and SAE J1284
  • normOTO
  • rated voltage: 32V

F1500 20 A

44707 F1500 20 A F1520 F1520 iMaXX automotive fuse series F1500 . automotive blade type fuses in a self extinguishing, transparent, color coded case made of high temperature resisitve plastic with a rating and a test point marked on top of the housing comply with DIN 72581-3 and SAE J1284 normOTO rated voltage: 32V

Specifications

manufacturer
Manufacturer's name F1520
Colour yellow
Rated current [A] 20
Data Sheet

Unit price

0,055 €

Stock: 3703
Further delivery:
CW 50/2024

Minimum order quantity 1 to 3 units or multiples of 50 plus 0 to 3 .
