HFD4/12

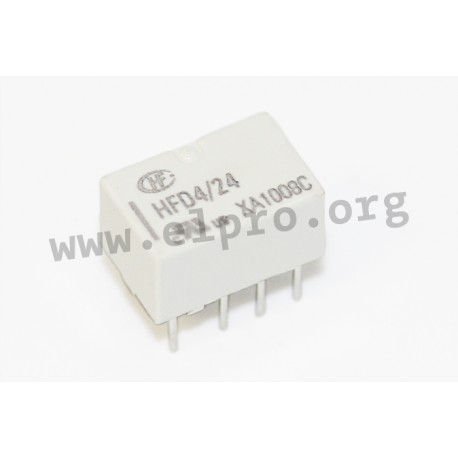

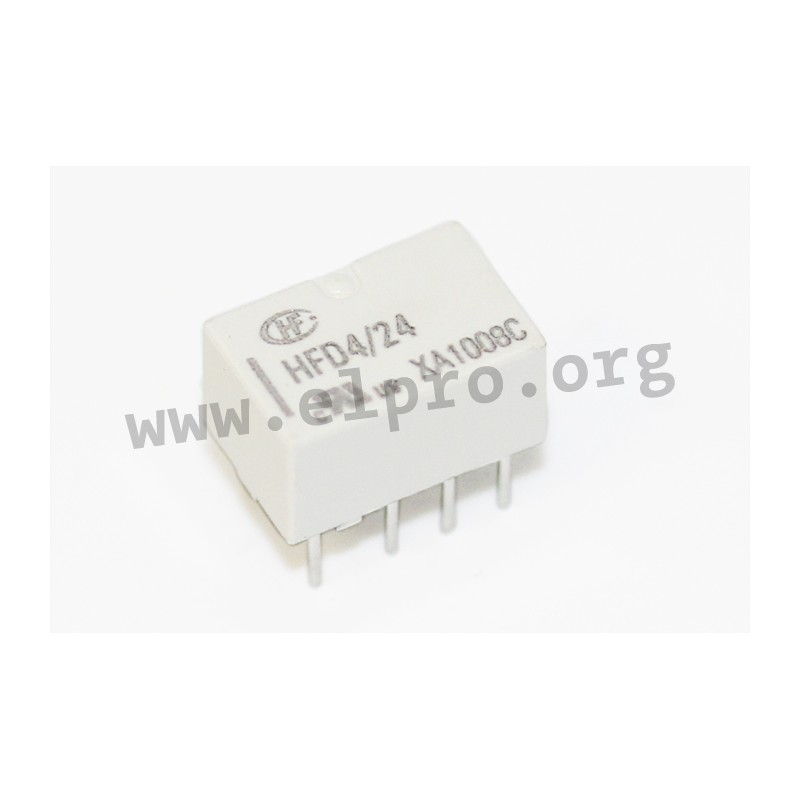

Hongfa PCB relay series HFD4

Subminiature signal relays with the contact form DPDT (2 form C) and the contact material silver-nickel (AgNi, Au plated). These relays have a switching current of 2A and a maximal switching voltage of 220V DC or 250V AC. Furthermore, they are in compliance with the standards EN60950/EN41003 and have a low power consumption. We offer the types HFD4/12 and HFD4/24 of this series.

  • contact: DPDT
  • contact material: AgNi, Au plated
  • maximal switching current: 2A
  • termination: DIL
  • maximal switching voltage: 220V DC/250V AC
  • rated power: 140mW (HFD4/12), 200mW (HFD4/24)
  • maximal switching power: 62,5VA/60W
  • minimal insulation resistance: 1000MΩ
  • maximal operate/release Time: 3/3ms
  • testing voltage coil/contact (1 Min.): 1600V AC
  • testing voltage contact/contact (1 Min.): 1800V AC
  • testing voltage open Contact (1 Min.): 1000V AC
  • minimal mechanical lifetime: 1x108
  • minimal electrical operations: 1x105
  • operating temperature: -40 to +85°C
  • weight (approximately): 0,8g
HFD4/12, Hongfa PCB relays, 2A, 2 changeover contacts, HFD4 series

HFD4/12

113571 HFD4/12 HFD4/12 Hongfa PCB relay series HFD4. Subminiature signal relays with the contact form DPDT (2 form C) and the contact material silver-nickel (AgNi, Au plated). These relays have a switching current of 2A and a maximal switching voltage of 220V DC or 250V AC. Furthermore, they are in compliance with the standards EN60950/EN41003 and have a low power consumption. We offer the types HFD4/12 and HFD4/24 of this series. contact: DPDTcontact material: AgNi, Au platedmaximal switching current: 2Atermination: DILmaximal switching voltage: 220V DC/250V ACrated power: 140mW (HFD4/12), 200mW (HFD4/24)maximal switching power: 62,5VA/60Wminimal insulation resistance: 1000MΩmaximal operate/release Time: 3/3mstesting voltage coil/contact (1 Min.): 1600V ACtesting voltage contact/contact (1 Min.): 1800V ACtesting voltage open Contact (1 Min.): 1000V ACminimal mechanical lifetime: 1x108minimal electrical operations: 1x105operating temperature: -40 to +85°Cweight (approximately): 0,8g

Specifications

manufacturer
Manufacturer's name HFD4/12
Coil resistance [Ω] 1028
Nominal voltage [V] 11
Switching current [A] 2
Response voltage [V] 9
Release voltage [V] 1,2
Nominal capacity [mW] 140
Data Sheet

Unit price

1,20 €

Stock: 4965
Further delivery:
CW 19/2025

Minimum order quantity 5 units or
multiples of 5.
