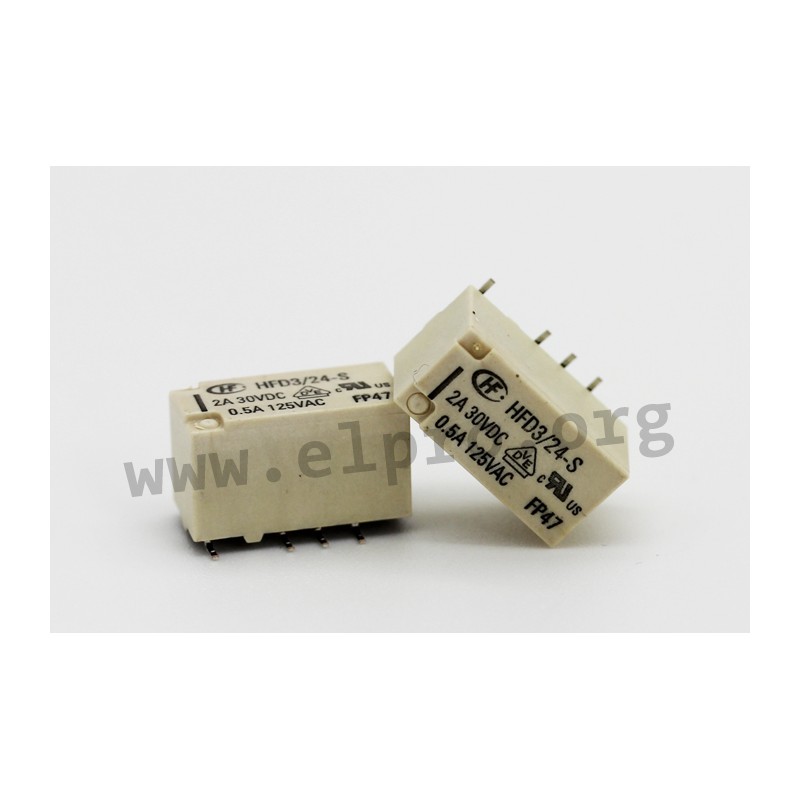

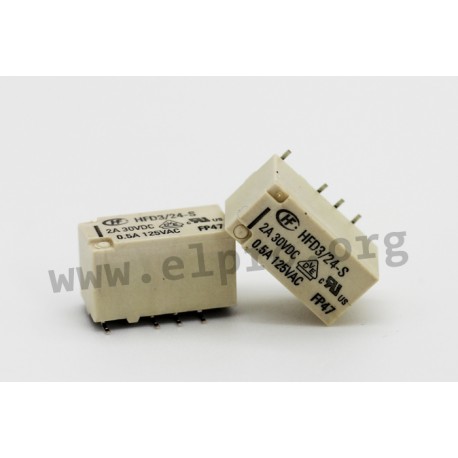

HFD3/024S

PCB relays series HFD3_S by Hongfa

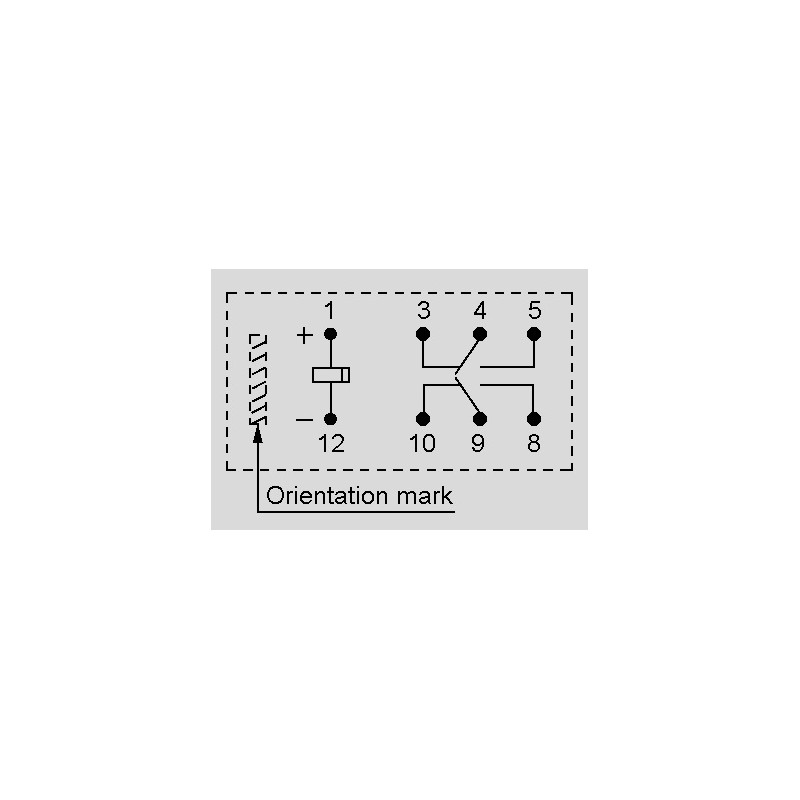

• DPDT
• rated current: 2 A
• SMD subminiature signal relay

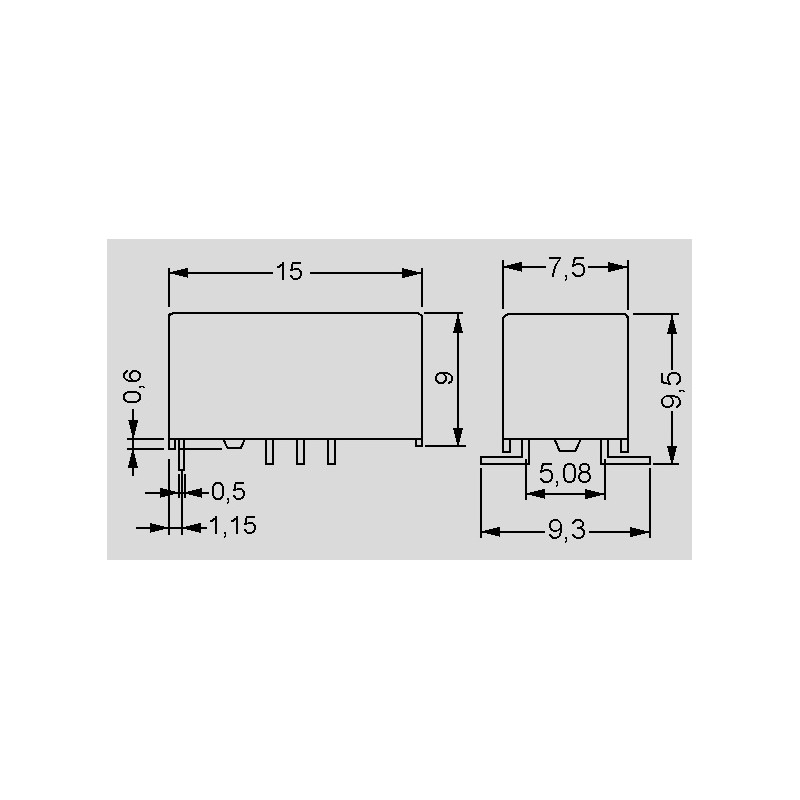

• housing: 15x7.5x9 mm
• 2500 V AC surge withstand beweeen coil and contact
• high sensitivity, 140 mW
• high insulation resistance: min. 1000 MΩ
• meets EN 60950 and EN41003
• contact material: AgNi, AU plated
• max. switching voltage: 250 V AC, 220 V DC
• 62.5 VA / 60 W max. switching power
​• insulation restistance, min.: 1000 MΩ
• 4/4 ms max. operate/release time
• testing voltage coil/contact ( 1 min.): 2000 V AC
• testing voltage contact/contact ( 1 min.): 1500 V AC
• testing voltage open contacts ( 1 min.): 1000 V AC
• mechanical lifetime, min.: 1x108 operations
• electrical lifetime, min.: 1x105 operations
• operating temperature: -40 to +85 °C
• low weight: approx. 2 g


HFD3/024S

HFD3/024S

106886 HFD3/024S HFD3/024S PCB relays series HFD3_S by Hongfa. • DPDT• rated current: 2 A• SMD subminiature signal relay• housing: 15x7.5x9 mm• 2500 V AC surge withstand beweeen coil and contact• high sensitivity, 140 mW• high insulation resistance: min. 1000 MΩ• meets EN 60950 and EN41003• contact material: AgNi, AU plated• max. switching voltage: 250 V AC, 220 V DC• 62.5 VA / 60 W max. switching power​• insulation restistance, min.: 1000 MΩ• 4/4 ms max. operate/release time• testing voltage coil/contact ( 1 min.): 2000 V AC• testing voltage contact/contact ( 1 min.): 1500 V AC• testing voltage open contacts ( 1 min.): 1000 V AC• mechanical lifetime, min.: 1x108 operations• electrical lifetime, min.: 1x105 operations• operating temperature: -40 to +85 °C• low weight: approx. 2 g

Specifications

manufacturer
Manufacturer's name HFD3/024S
Nominal voltage [V DC] 24
Coil resistance [Ω] 4114
Nominal capacity [mW] 140
Data Sheet

Unit price

1,51 €

Stock: 2285
Further delivery:
CW 12/2025

Minimum order quantity 5 units or
multiples of 5.
