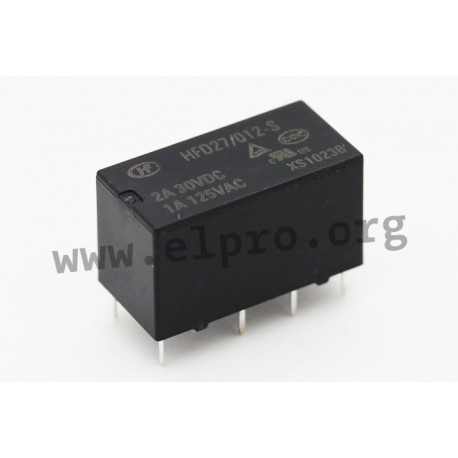

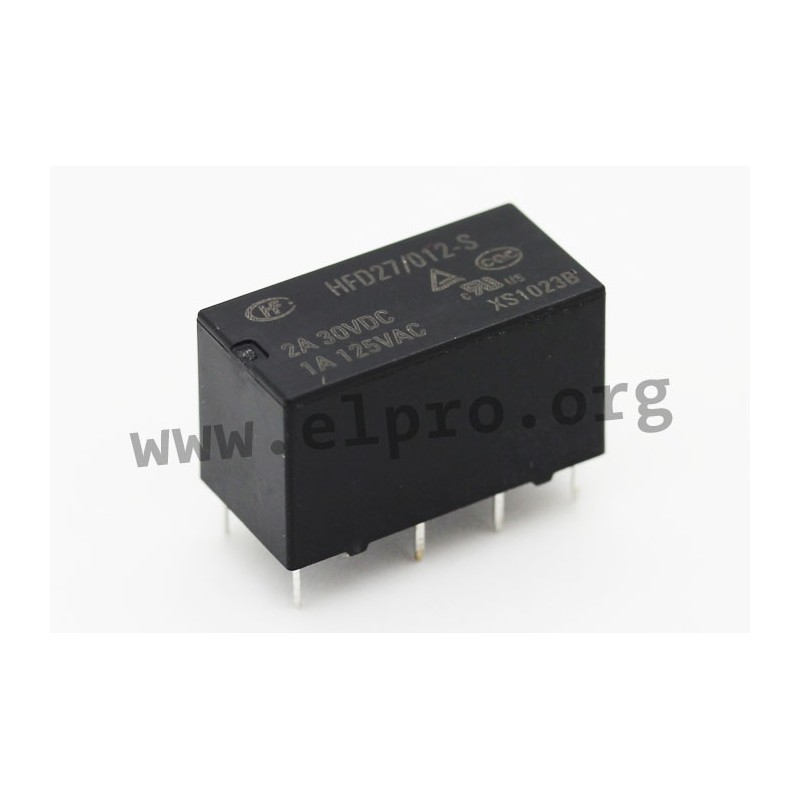

HFD27/012-S

Hongfa signal relay series HFD27

Subminiature signal relays with the contact form DPDT (2 form C) and the contact material AgNi (Au plated). These relays have a high sensitivity (200mW), a switching current of 2A and are epoxy sealed for automatic cleaning wave soldering. We offer the types HDF27/005-S, HDF27/012-S and HDF27/024-S of this series.

  • contact: DPDT (2 form C)
  • contact material: AgNi, Au plated
  • maximal switching current: 2A
  • maximal witching voltage: 120V DC / 240V AC
  • rated power: 200mW
  • maximal switching power: 125VA/60W
  • minimal insulation resistance: 1000MΩ
  • maximal operate/release time: 7/4ms
  • testing voltage coil/contact (1 Min.): 1500V AC
  • testing voltage open contact (1Min.): 1000V AC
  • minimal mechanical lifetime: 1x108 operations
  • minimal electrical lifetime: 1x105 operations
  • operating temperature: -40 to +85°C
  • weight (approximately): 5g
HFD27/012-S, Hongfa PCB relays, 2A, 2 changeover contacts, HFD27 series

HFD27/012-S

113590 HFD27/012-S HFD27/012-S Hongfa signal relay series HFD27. Subminiature signal relays with the contact form DPDT (2 form C) and the contact material AgNi (Au plated). These relays have a high sensitivity (200mW), a switching current of 2A and are epoxy sealed for automatic cleaning wave soldering. We offer the types HDF27/005-S, HDF27/012-S and HDF27/024-S of this series. contact: DPDT (2 form C)contact material: AgNi, Au platedmaximal switching current: 2Amaximal witching voltage: 120V DC / 240V ACrated power: 200mWmaximal switching power: 125VA/60Wminimal insulation resistance: 1000MΩmaximal operate/release time: 7/4mstesting voltage coil/contact (1 Min.): 1500V ACtesting voltage open contact (1Min.): 1000V ACminimal mechanical lifetime: 1x108 operationsminimal electrical lifetime: 1x105 operationsoperating temperature: -40 to +85°Cweight (approximately): 5g

Specifications

manufacturer
Manufacturer's name HFD27/012-S
Coil resistance [Ω] 720
Nominal voltage [V] 12
Switching current [A] 2
Response voltage [V] 9,6
Release voltage [V] 1,2
Nominal capacity [mW] 200
Data Sheet

Unit price

0,952 €

Stock: 3840
Further delivery:
CW 12/2025

Minimum order quantity 5 units or
multiples of 5.
