HFD23/005-1ZS

Hongfa PCB relay series HFD23

Subminiature signal relays with the contact form SPDT (1 form C) and the contact material silver-nickel (AgNi, Au plated). These relays have a high sensitivity (150mW), a switching current of 2A and are RoHS compliant. We offer the types HFD23/005-1ZS, HFD23/009-1ZS, HFD23/012-1ZS and HFD23/024-1ZS of this series.

  • contact: SPDT
  • contact material: AgNi, Au plated
  • maximal switching current: 2A
  • maximal switching voltage: 60V DC / 125V AC
  • rated power: 150mW
  • maximal switching power: 62,5VA/30W
  • minimal insulation resistance: 1000MΩ
  • maximal operate/release Time: 5/5ms
  • testing voltage coil/contact (1 Min.): 1000V AC
  • testing voltage open contact (1Min.): 500V AC
  • minimal mechanical lifetime: 1x107 operations
  • minimal electrical lifetime: 9x104 operations
  • operating temperature: -40 to +70°C
  • weight (approximately): 2,2g

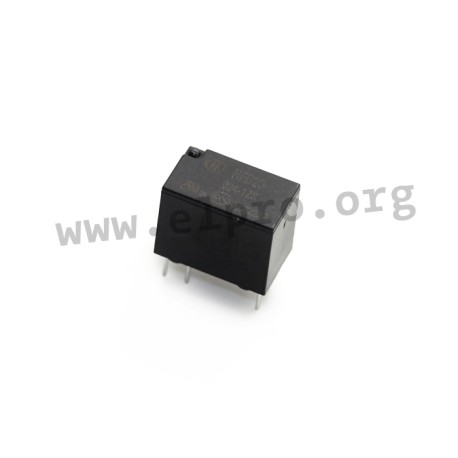

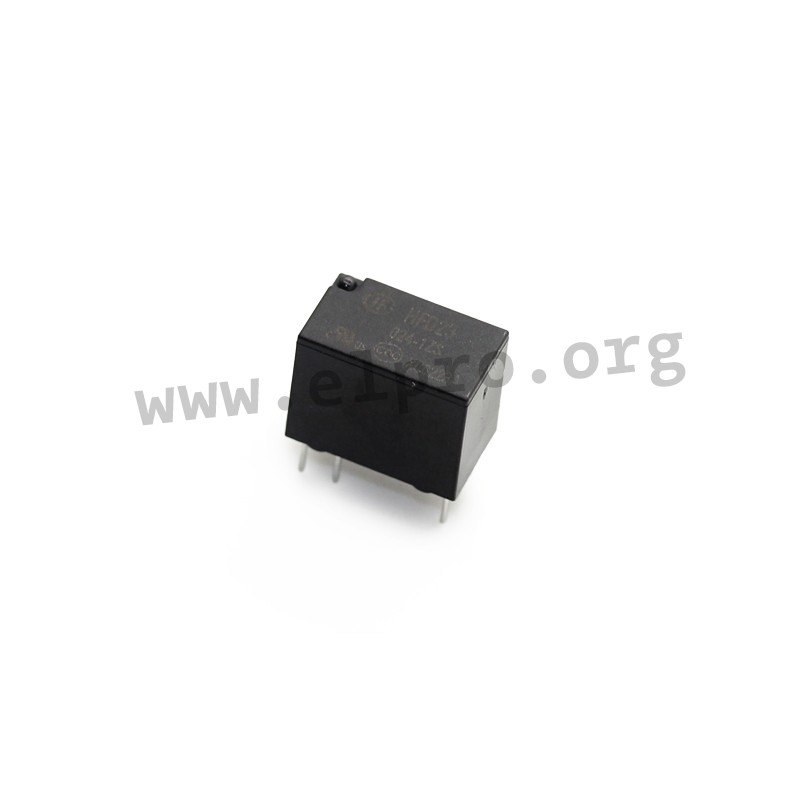

HFD23/005-1ZS, Hongfa PCB relays, 2A, 1 changeover contact, HFD23 series

HFD23/005-1ZS

113573 HFD23/005-1ZS HFD23/005-1ZS Hongfa PCB relay series HFD23. Subminiature signal relays with the contact form SPDT (1 form C) and the contact material silver-nickel (AgNi, Au plated). These relays have a high sensitivity (150mW), a switching current of 2A and are RoHS compliant. We offer the types HFD23/005-1ZS, HFD23/009-1ZS, HFD23/012-1ZS and HFD23/024-1ZS of this series. contact: SPDTcontact material: AgNi, Au platedmaximal switching current: 2Amaximal switching voltage: 60V DC / 125V ACrated power: 150mWmaximal switching power: 62,5VA/30Wminimal insulation resistance: 1000MΩmaximal operate/release Time: 5/5mstesting voltage coil/contact (1 Min.): 1000V ACtesting voltage open contact (1Min.): 500V ACminimal mechanical lifetime: 1x107 operationsminimal electrical lifetime: 9x104 operationsoperating temperature: -40 to +70°Cweight (approximately): 2,2g

Specifications

manufacturer
Manufacturer's name HFD23/005-1ZS
Coil resistance [Ω] 167
Nominal voltage [V] 5
Switching current [A] 2
Response voltage [V] 4
Release voltage [V] 0,5
Nominal capacity [mW] 150
Data Sheet

Unit price

0,728 €

Stock: 1805
Further delivery:
CW 16/2025

Minimum order quantity 5 units or
multiples of 5.
