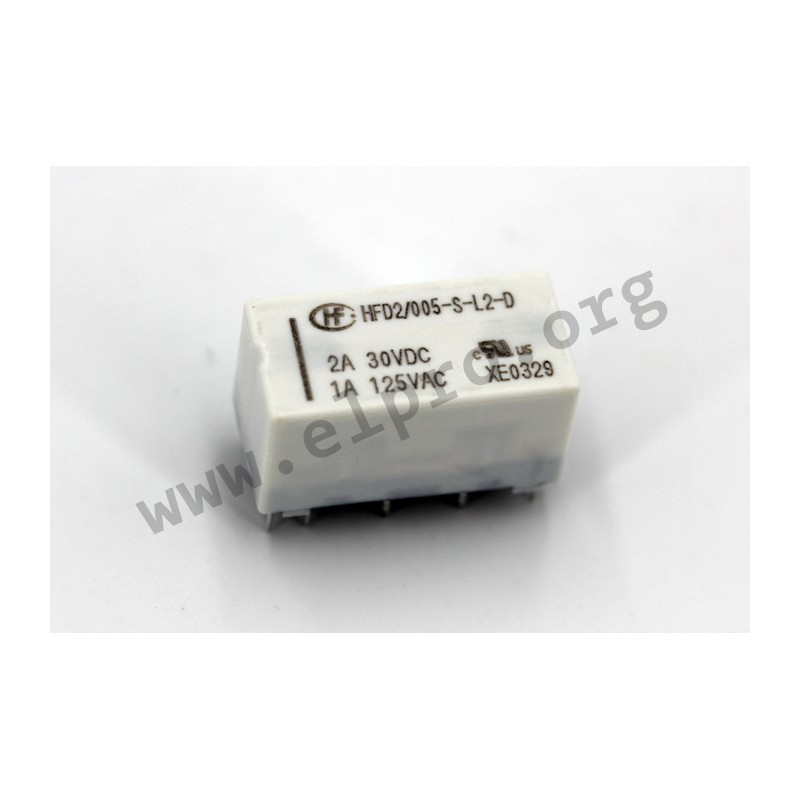

HFD2/003-S-L2-D

Hongfa Printrelay series HFD2

These Printrelays with a bifurcated contact are sealed with epoxid for automated wave soldering and cleaning. They have a high sensibility (150mW), a high switching power (125VA/90W), and a fitted 16-ple standard IC socket. We offer the following types of this Hongfa series.

  • switching current: 2A
  • contact: 2x changeover (DPDT)
  • contact material: silver gilded
  • nominal switching current: 2A
  • switching current, max.: 3A
  • switching voltage,max.: 220V DC/250V AC
  • switching power: 125VA/90W
  • inrush-/drop-out time, max.: 4,5/3,5ms
  • test voltage: 1000V AC (inductor/contact, 1 min.),  1000V AC (open contact, 1 min.)
  • lifespan, min.: 1x10^8 cycles (mechanic), 1x10^4 cycles (electric)
  • operating temperature: -40 to +85 °C
  • weight: 4,5g
  • HFD2_-S-L2: 2 inductor sealed
  • HFD2_-S: partial stable

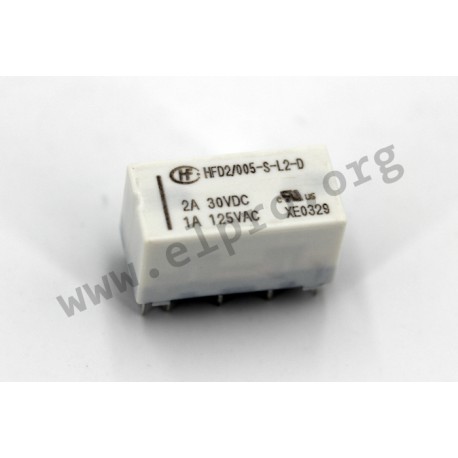

HFD2/003-S-L2-D, Hongfa printrelay, 2A, 2 changeover (DPDT), HFD2 series

HFD2/003-S-L2-D

247653 HFD2/003-S-L2-D HFD2/003-S-L2-D Hongfa Printrelay series HFD2. These Printrelays with a bifurcated contact are sealed with epoxid for automated wave soldering and cleaning. They have a high sensibility (150mW), a high switching power (125VA/90W), and a fitted 16-ple standard IC socket. We offer the following types of this Hongfa series. switching current: 2A contact: 2x changeover (DPDT) contact material: silver gilded nominal switching current: 2A switching current, max.: 3A switching voltage,max.: 220V DC/250V AC switching power: 125VA/90W inrush-/drop-out time, max.: 4,5/3,5ms  test voltage: 1000V AC (inductor/contact, 1 min.),  1000V AC (open contact, 1 min.)  lifespan, min.: 1x10^8 cycles (mechanic), 1x10^4 cycles (electric) operating temperature: -40 to +85 °C weight: 4,5g HFD2_-S-L2: 2 inductor sealed HFD2_-S: partial stable

Specifications

manufacturer
Manufacturer's name HFD2/003-S-L2-D
Nominal voltage [V DC] 3
Coil resistance [Ω] 60
Max. operating voltage [V DC] 6,9
Response voltage [V] 2,4
Nominal capacity [mW] 150
Data Sheet

Unit price

2,39 €

Stock: 0
Further delivery:
CW 04/2025

Minimum order quantity 100 units or
multiples of 100.
