> Passive elements>Relays>Electromechanical relays>Hongfa PCB relays, 5A, 1 normally open contact, HF49FD series>HF49FD/012-1H12F

Manufacturers

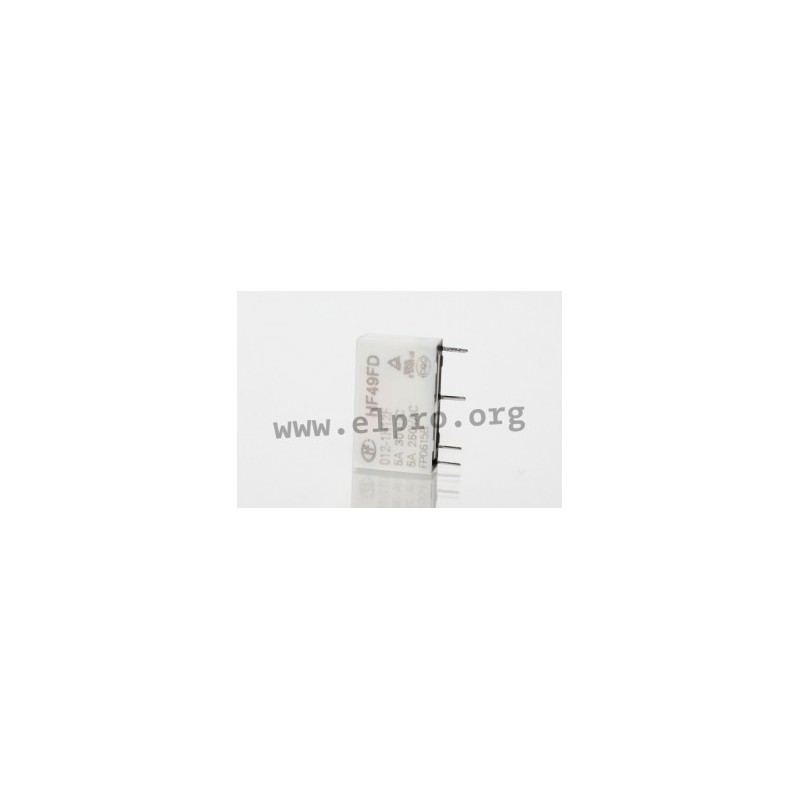

HF49FD/012-1H12F

• SPST-NO
• rated current: 5 A
* miniature power relay
• housing: 20x5x12.5 mm
* slim housing
* 3000 V AC surge withstand beweeen coil and contact
* high sensitivity, 120 mW
* min. 3.5 mm creepage/clearance distance
* reinforce insulation, meets IEC61131-2
• contact material: AgNi
• max. switching voltage: 30 V DC, 250 V AC
* 1250 VA / 150 W max. switching power
* 10/5 ms max. operate/release time
• testing voltage coil/contact ( 1 min.): 3000 V AC
• testing voltage open contacts ( 1 min.): 1000 V AC
• mechanical lifetime, min.: 2x107 operations
• electrical lifetime, min.: 5x104 operations
• operating temperature: -40 to +85 °C
• low weight: approx. 3 g

HF49FD/012-1H12F, Hongfa PCB relays, 5A, 1 normally open contact, HF49FD series

HF49FD/012-1H12F

106910 HF49FD/012-1H12F HF49FD/012-1H12F • SPST-NO • rated current: 5 A * miniature power relay • housing: 20x5x12.5 mm * slim housing * 3000 V AC surge withstand beweeen coil and contact * high sensitivity, 120 mW * min. 3.5 mm creepage/clearance distance * reinforce insulation, meets IEC61131-2 • contact material: AgNi • max. switching voltage: 30 V DC, 250 V AC * 1250 VA / 150 W max. switching power * 10/5 ms max. operate/release time • testing voltage coil/contact ( 1 min.): 3000 V AC• testing voltage open contacts ( 1 min.): 1000 V AC• mechanical lifetime, min.: 2x107 operations • electrical lifetime, min.: 5x104 operations • operating temperature: -40 to +85 °C • low weight: approx. 3 g

Specifications

manufacturer
Manufacturer's name HF49FD/012-1H12F
Nominal voltage [V DC] 12
Coil resistance [Ω] 1200
Response voltage [V] 8,40
Release voltage [V] 0,6
Nominal capacity [mW] 120
Data Sheet

Unit price

1,43 €

Stock: 1055
Next incoming goods:
CW 03/2025
1000 units

Further delivery:
CW 15/2025

Minimum order quantity 5 units or
multiples of 5.
