HF3FA/005-ZTF

• SPDT
• rated current: 10 A
* subminiature high power relay
• housing: 19x15.2x15.5 mm
* 2500 V AC surge withstand beweeen coil and contact
* flammability class according to UL94 V-0
• contact material: AgSnO2
• max. switching voltage: 28 V DC, 277 V AC
* 2700 VA / 280 W max. switching power
* insulation restistance, min.: 100 MΩ
* 10/5 ms max. operate/release time
• testing voltage coil/contact ( 1 min.): 2500 V AC
• testing voltage open contacts ( 1 min.): 750 V AC
• mechanical lifetime, min.: 1x107 operations
• electrical lifetime, min.: 5x104 operations
• operating temperature: -40 to +85 °C
• weight: approx. 7 g

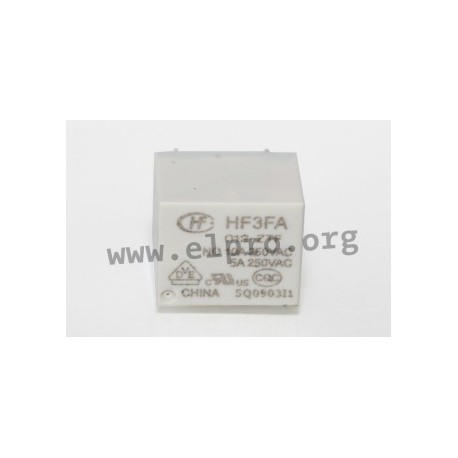

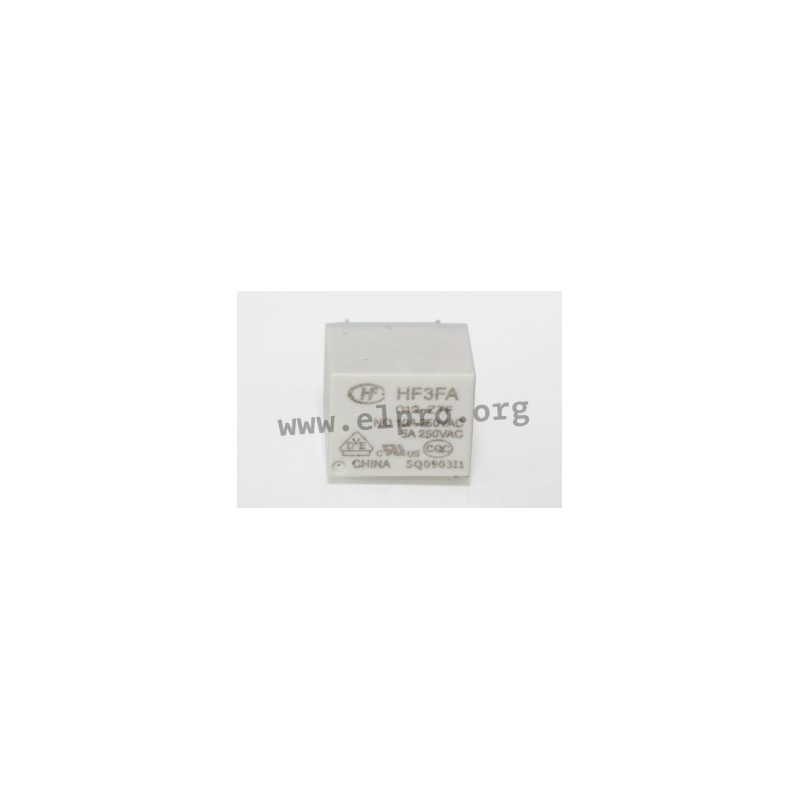

HF3FA/005-ZTF, Hongfa PCB relays, 10A, 1 changeover contact, HF3FA series

HF3FA/005-ZTF

247671 HF3FA/005-ZTF HF3FA/005-ZTF • SPDT • rated current: 10 A * subminiature high power relay • housing: 19x15.2x15.5 mm * 2500 V AC surge withstand beweeen coil and contact * flammability class according to UL94 V-0 • contact material: AgSnO2 • max. switching voltage: 28 V DC, 277 V AC * 2700 VA / 280 W max. switching power * insulation restistance, min.: 100 MΩ * 10/5 ms max. operate/release time • testing voltage coil/contact ( 1 min.): 2500 V AC• testing voltage open contacts ( 1 min.): 750 V AC• mechanical lifetime, min.: 1x107 operations • electrical lifetime, min.: 5x104 operations • operating temperature: -40 to +85 °C • weight: approx. 7 g

Specifications

manufacturer
Manufacturer's name HF3FA/005-ZTF
Nominal voltage [V DC] 5
Coil resistance [Ω] 70
Response voltage [V] 3,75
Release voltage [V] 0,5
Nominal capacity [mW] 360
Data Sheet

Unit price

0,784 €

Stock: 210
Further delivery:
CW 06/2025

Minimum order quantity 5 units or
multiples of 5.
