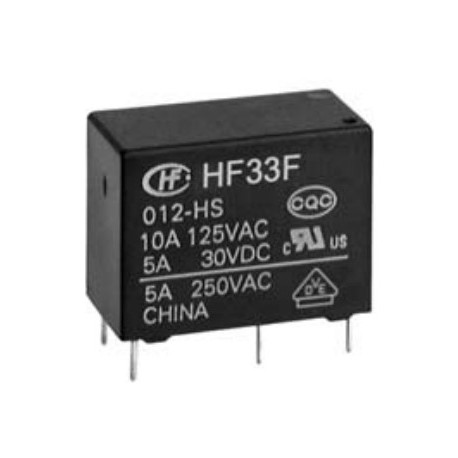

HF33F/012-HSL3F

Hongfa PCB relay series HF33F

Subminiature intermediate power relays with the contact configuration SPST-NO (1 form A) and the contact material AgNi. These relays have a maximal switching current of 10A, a maximal switching voltage of 30V DC resp. 250V AC and a high sensitivity through a coil rated power of 200mW. Furthermore, they are in compliance with the UL insulation system class F. We offer the type HF33F/012-HSL3F with 12V coil voltage and the type HF33F/024-HSL3F with 24V coil voltage.

  • maximal switching power: 1250VA/150W
  • minimal insulation resistance: 1000MOhm
  • testing voltage Coil/Contact (1 Min.): 4000V AC
  • testing voltage open Contact (1Min.): 1000V AC
  • minimal mechanical lifetime: 5x106 operations
  • minimal electrical lifetime: 1x105 operations
  • operating temperature: -40 to +70°C
  • weight: 7g
HF33F/012-HSL3F, Hongfa, Hongfa PCB relays, 10A, SPST-NO, HF33F series

HF33F/012-HSL3F

113614 HF33F/012-HSL3F HF33F/012-HSL3F Hongfa PCB relay series HF33F. Subminiature intermediate power relays with the contact configuration SPST-NO (1 form A) and the contact material AgNi. These relays have a maximal switching current of 10A, a maximal switching voltage of 30V DC resp. 250V AC and a high sensitivity through a coil rated power of 200mW. Furthermore, they are in compliance with the UL insulation system class F. We offer the type HF33F/012-HSL3F with 12V coil voltage and the type HF33F/024-HSL3F with 24V coil voltage. maximal switching power: 1250VA/150Wminimal insulation resistance: 1000MOhmtesting voltage Coil/Contact (1 Min.): 4000V ACtesting voltage open Contact (1Min.): 1000V ACminimal mechanical lifetime: 5x106 operationsminimal electrical lifetime: 1x105 operationsoperating temperature: -40 to +70°Cweight: 7g

Specifications

manufacturer
Manufacturer's name HF33F/012-HSL3F
Coil resistance [Ω] 720
Nominal voltage [V] 12
Switching current [A] 10
Response voltage [V] 9
Release voltage [V] 0,6
Nominal capacity [mW] 200
Data Sheet

Unit price

0,994 €

Stock: 2030
Further delivery:
CW 11/2025

Minimum order quantity 5 units or
multiples of 5.
