HF32FA/012-HSL1

Hongfa PCB relay series HF32FA

Subminiature intermediate power relays with the contact configuration SPST-NO and the contact material AgNi. These relays have a switching current of 5A, a maximal switching voltage of 30V DC resp. 250V AC and a high sensitivity through a coil rated power of 200mW. Furthermore, they are in compliance with VDE 0700 and VDE 0631 as well with the UL insulation system class F and class B. We offer the type HF32FA/012-HSL1 with 12V coil voltage and the type HF32FA/024-HSL1 with 24V coil voltage.

  • maximal switching power: 1250VA/150W
  • minimal insulation resistance: 1000MOhm
  • testing voltage Coil/Contact (1 Min.): 5000V AC
  • testing voltage open Contact (1Min.): 1000V AC
  • minimal mechanical lifetime: 1x106 operations
  • minimal electrical lifetime: 1x105 operations
  • operating temperature: -40 to +85°C
  • weight: 4,6g

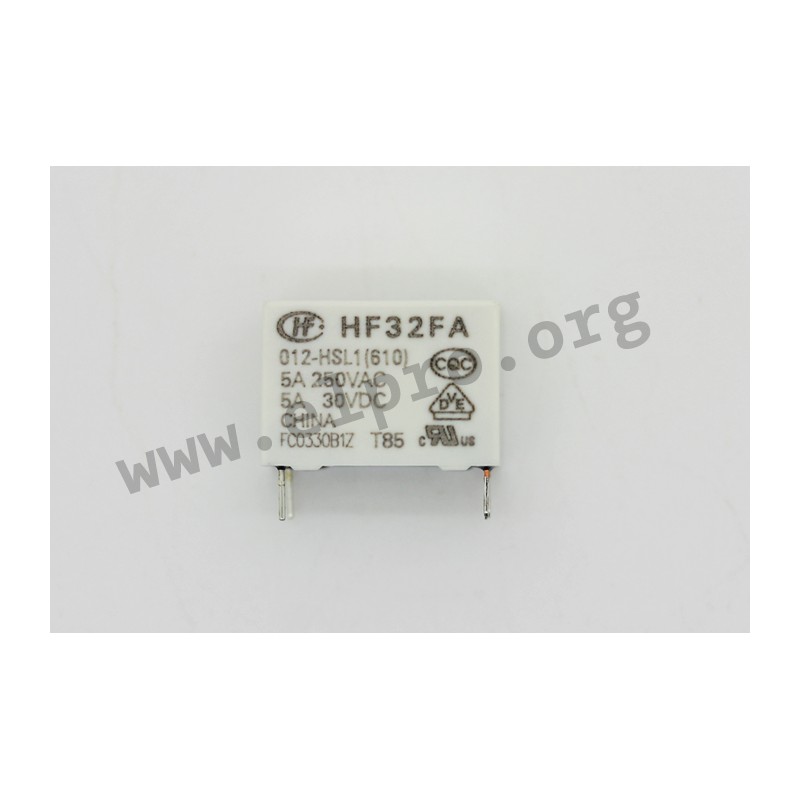

HF32FA/012-HSL1(610), Hongfa PCB relays, 5A, 1 normally open contact, HF32FA series

HF32FA/012-HSL1

113607 HF32FA/012-HSL1 HF32FA/012-HSL1(610) HF32FA/012-HSL1(610) Hongfa PCB relay series HF32FA. Subminiature intermediate power relays with the contact configuration SPST-NO and the contact material AgNi. These relays have a switching current of 5A, a maximal switching voltage of 30V DC resp. 250V AC and a high sensitivity through a coil rated power of 200mW. Furthermore, they are in compliance with VDE 0700 and VDE 0631 as well with the UL insulation system class F and class B. We offer the type HF32FA/012-HSL1 with 12V coil voltage and the type HF32FA/024-HSL1 with 24V coil voltage. maximal switching power: 1250VA/150Wminimal insulation resistance: 1000MOhmtesting voltage Coil/Contact (1 Min.): 5000V ACtesting voltage open Contact (1Min.): 1000V ACminimal mechanical lifetime: 1x106 operationsminimal electrical lifetime: 1x105 operationsoperating temperature: -40 to +85°Cweight: 4,6g

Specifications

manufacturer
Manufacturer's name HF32FA/012-H...
Coil resistance [Ω] 320
Nominal voltage [V] 12
Switching current [A] 5
Response voltage [V] 9
Release voltage [V] 0,6
Nominal capacity [mW] 200
Data Sheet

Unit price

0,994 €

Stock: 765
Further delivery:
CW 12/2025

Minimum order quantity 5 units or
multiples of 5.
