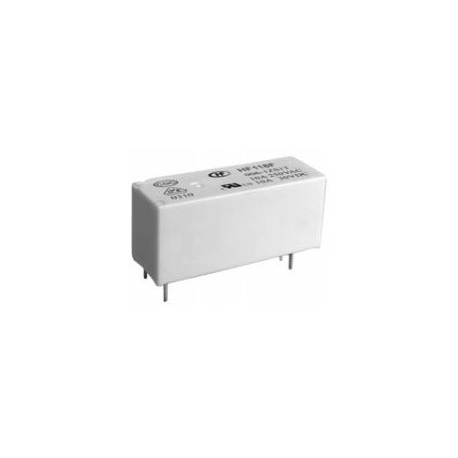

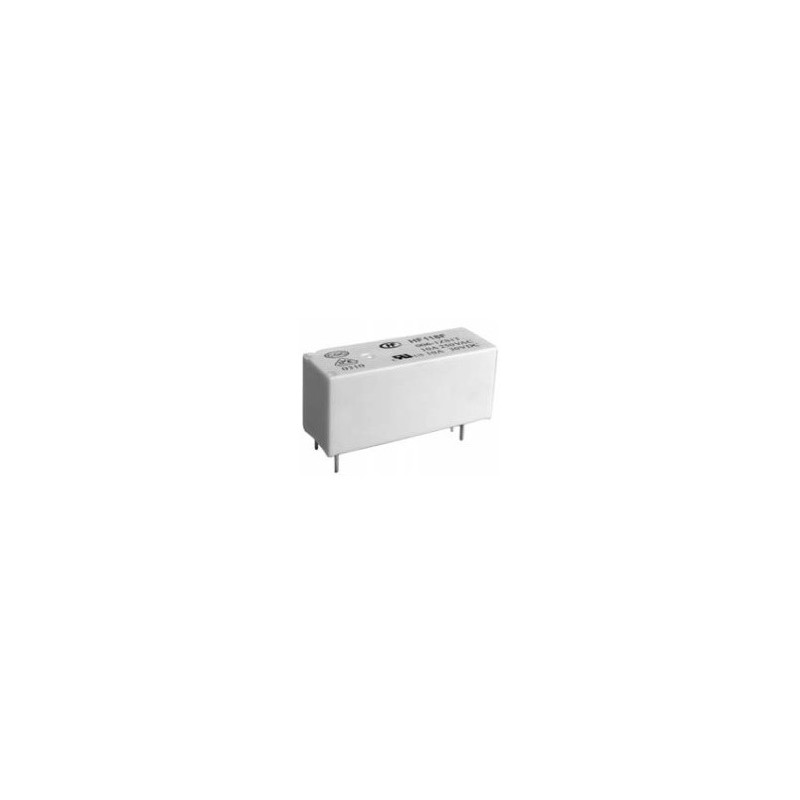

HF118F/005-1ZS1(136)

• SPDT
• rated current: 10 A
* miniature high power relay
• housing: 28.5x10.1x12.5 mm
* low height
* 5000 V AC surge withstand beweeen coil and contact
* min. 8 mm creepage distance
* reinforce insulation, meets VDE 0700, 0631
* class F, UL insulation system
• contact material: AgSnO2
• max. switching voltage: 125 V DC, 440 V AC
* 2500 VA / 300 W max. switching power
* insulation restistance, min.: 1000 MΩ
* 10/5 ms max. operate/release time
• testing voltage coil/contact ( 1 min.): 5000 V AC
• testing voltage open contacts ( 1 min.): 100 V AC
• mechanical lifetime, min.: 1x107 operations
• operating temperature: -40 to +85 °C
• weight: approx. 8 g

HF118F/005-1ZS1(136), Hongfa PCB relays, 10A, 1 changeover contact, HF118F series

HF118F/005-1ZS1(136)

247696 HF118F/005-1ZS1(136) HF118F/005-1ZS1(136) • SPDT • rated current: 10 A * miniature high power relay • housing: 28.5x10.1x12.5 mm * low height * 5000 V AC surge withstand beweeen coil and contact * min. 8 mm creepage distance * reinforce insulation, meets VDE 0700, 0631 * class F, UL insulation system • contact material: AgSnO2 • max. switching voltage: 125 V DC, 440 V AC * 2500 VA / 300 W max. switching power * insulation restistance, min.: 1000 MΩ * 10/5 ms max. operate/release time • testing voltage coil/contact ( 1 min.): 5000 V AC • testing voltage open contacts ( 1 min.): 100 V AC• mechanical lifetime, min.: 1x107 operations• operating temperature: -40 to +85 °C • weight: approx. 8 g

Specifications

manufacturer
Manufacturer's name HF118F/005-1...
Nominal voltage [V DC] 5
Coil resistance [Ω] 113
Response voltage [V] 3,5
Release voltage [V] 0,5
Nominal capacity [mW] 220
Data Sheet

Unit price

2,39 €

Stock: 500
Further delivery:
CW 03/2025

Minimum order quantity 5 units or
multiples of 5.
