> Passive elements>Relays>Electromechanical relays>Hongfa PCB relays, 10A, 1 changeover contact, HF118F series>HF118F/24-1ZS1T(136)

Manufacturers

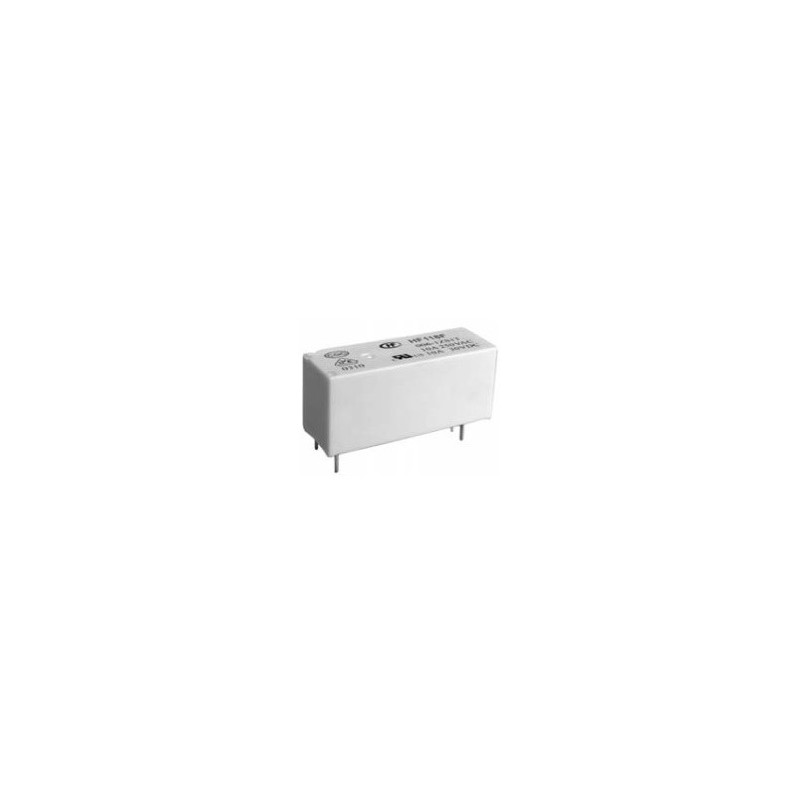

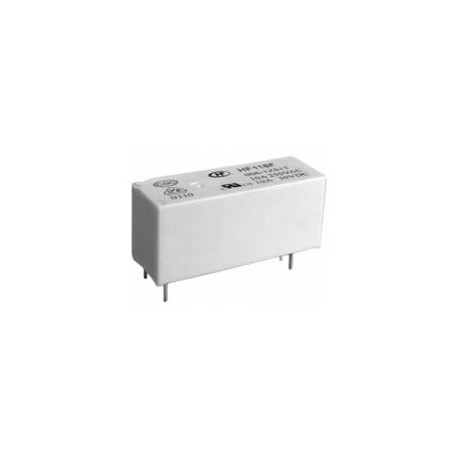

HF118F/24-1ZS1T(136)

• SPDT
• rated current: 10 A
* miniature high power relay
• housing: 28.5x10.1x12.5 mm
* low height
* 5000 V AC surge withstand beweeen coil and contact
* min. 8 mm creepage distance
* reinforce insulation, meets VDE 0700, 0631
* class F, UL insulation system
• contact material: AgSnO2
• max. switching voltage: 125 V DC, 440 V AC
* 2500 VA / 300 W max. switching power
* insulation restistance, min.: 1000 MΩ
* 10/5 ms max. operate/release time
• testing voltage coil/contact ( 1 min.): 5000 V AC
• testing voltage open contacts ( 1 min.): 100 V AC
• mechanical lifetime, min.: 1x107 operations
• operating temperature: -40 to +85 °C
• weight: approx. 8 g

HF118F/24-1ZS1T(136), Hongfa PCB relays, 10A, 1 changeover contact, HF118F series

HF118F/24-1ZS1T(136)

106932 HF118F/24-1ZS1T(136) HF118F/24-1ZS1T(136) • SPDT • rated current: 10 A * miniature high power relay • housing: 28.5x10.1x12.5 mm * low height * 5000 V AC surge withstand beweeen coil and contact * min. 8 mm creepage distance * reinforce insulation, meets VDE 0700, 0631 * class F, UL insulation system • contact material: AgSnO2 • max. switching voltage: 125 V DC, 440 V AC * 2500 VA / 300 W max. switching power * insulation restistance, min.: 1000 MΩ * 10/5 ms max. operate/release time • testing voltage coil/contact ( 1 min.): 5000 V AC • testing voltage open contacts ( 1 min.): 100 V AC• mechanical lifetime, min.: 1x107 operations• operating temperature: -40 to +85 °C • weight: approx. 8 g

Specifications

manufacturer
Manufacturer's name HF118F/24-1Z...
Nominal voltage [V DC] 24
Coil resistance [Ω] 2350
Response voltage [V] 16,8
Release voltage [V] 2,4
Nominal capacity [mW] 245
Data Sheet

Unit price

1,71 €

Stock: 1491
Further delivery:
CW 24/2025

Minimum order quantity 1 unit or multiples of 5 plus 0 to 1 .
