HF115FK/12-2Z4T

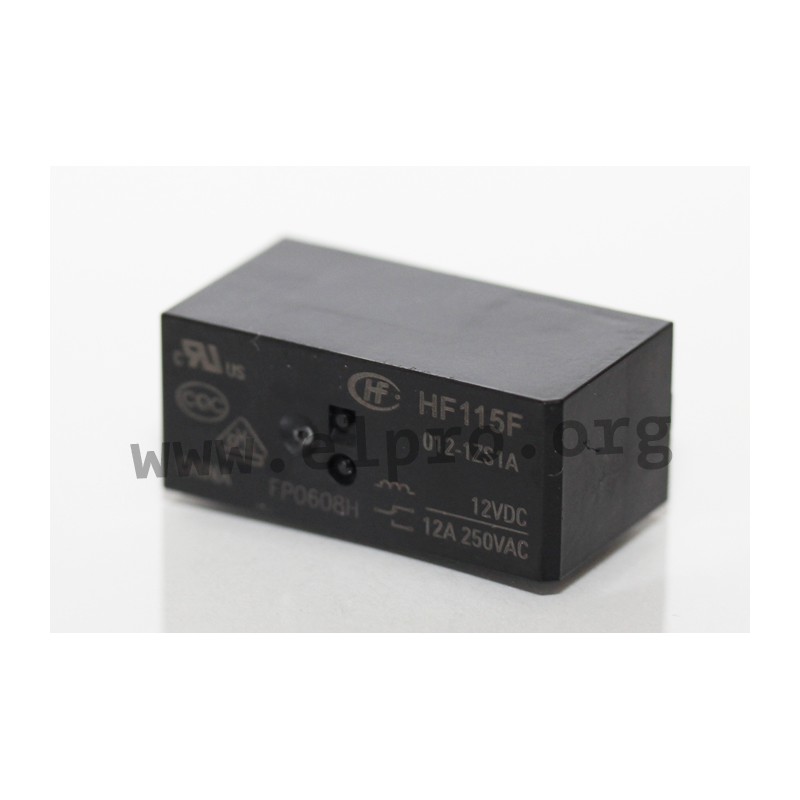

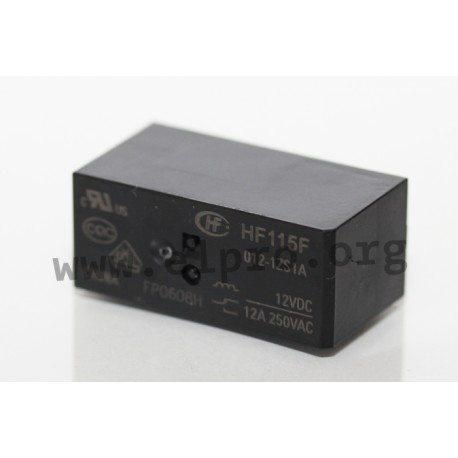

Hongfa PCB relay series HF115

  • high-power relays with 1 or 2 changeover contacts and a low profile (15,7mm)
  • dielectric strength of up to 5kV between contacts and coil
  • with a reinforced insulation and a creepage distance of 10mm
  • comply with VDE 0700, 0631
  • contact material: AgSnO2
  • switching current: 8, 12 or 16A
HF115FK/12-2Z4T, Hongfa PCB relays, 8 to 16A, 1 or 2 changeover contacts, HF115F series

HF115FK/12-2Z4T

113796 HF115FK/12-2Z4T HF115FK/12-2Z4T Hongfa PCB relay series HF115. high-power relays with 1 or 2 changeover contacts and a low profile (15,7mm) dielectric strength of up to 5kV between contacts and coil with a reinforced insulation and a creepage distance of 10mm comply with VDE 0700, 0631 contact material: AgSnO2 switching current: 8, 12 or 16A

Specifications

manufacturer
Manufacturer's name HF115FK/12-2Z4T
Coil resistance [Ω] 360
Type of contact 2 changeover...
Switching current [A] 8
Response voltage [V] 8,4
Release voltage [V] 1,2
Nominal capacity [mW] 400
Data Sheet

Unit price

1,36 €

Stock: 1450
Further delivery:
CW 16/2025

Minimum order quantity 5 units or
multiples of 5.
