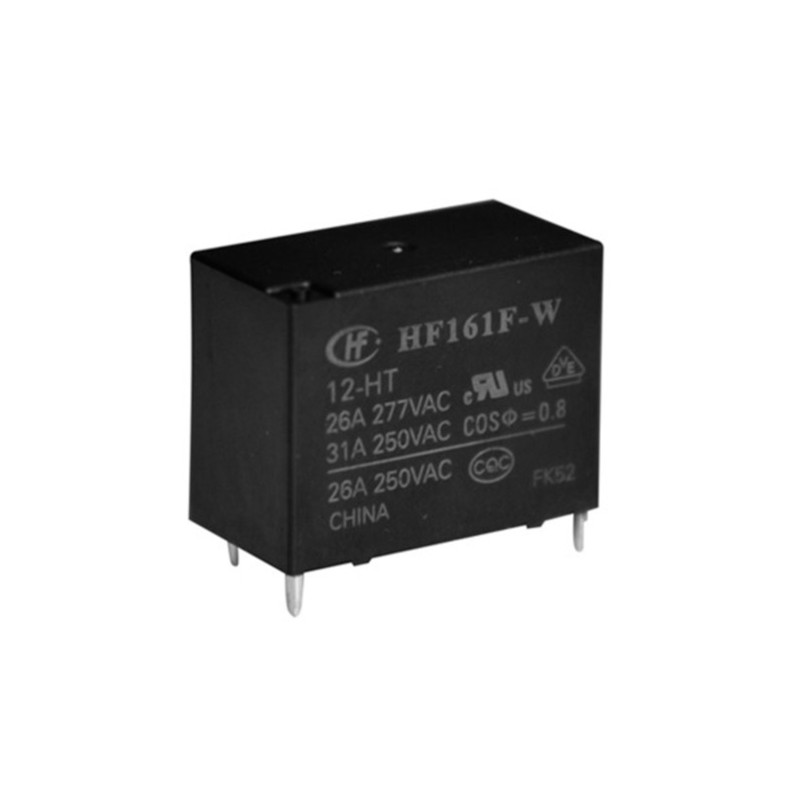

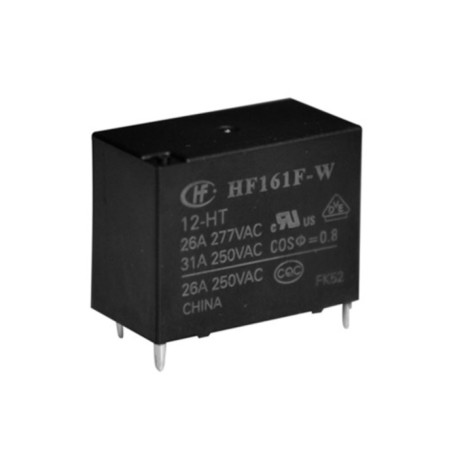

HF161F-W/024-HT

Hongaf printrelays series HF161F-W

These solar relays with 31A, have a low coil holding voltage, which allows a energy savings. They are flux resistant, conform with the UL isolation system class F, and they have a contact distance of 1,5mm. We offer the following types of this Hongaf series: HF161F-W/009-HT, HF161F-W/012-HT, and HF161F-W/024-HT.

  • contact type: 1x normally open contact
  • contact material: AgSnO2
  • nominal switching current: 26A
  • switching current, max.: 31A
  • switching voltage, max.: 277V AC
  • switching power, max.: 7750VA
  • air/creepage path: 6,4/8mm
  • attack/drop-out time: 20/10ms
  • test voltage: 4500Veff (inductor/contact), 2500Veff (contact/contact)
  • lifespan: 1x10^6 cycles (mechanic), 3x10^4 cycles (electric)
  • operating temperature: -40 to +85°C
  • dimensions: 30,4x15,9x23,3mm
  • weight: 21g
HF161F-W/024-HT, Hongaf printrelays, 31A, 1x normally open contact (SPST-NO), HF161F-W series

HF161F-W/024-HT

247715 HF161F-W/024-HT HF161F-W/024-HT Hongaf printrelays series HF161F-W. These solar relays with 31A, have a low coil holding voltage, which allows a energy savings. They are flux resistant, conform with the UL isolation system class F, and they have a contact distance of 1,5mm. We offer the following types of this Hongaf series: HF161F-W/009-HT, HF161F-W/012-HT, and HF161F-W/024-HT. contact type: 1x normally open contact contact material: AgSnO2 nominal switching current: 26A switching current, max.: 31A switching voltage, max.: 277V AC switching power, max.: 7750VA air/creepage path: 6,4/8mm attack/drop-out time: 20/10ms test voltage: 4500Veff (inductor/contact), 2500Veff (contact/contact) lifespan: 1x10^6 cycles (mechanic), 3x10^4 cycles (electric) operating temperature: -40 to +85°C dimensions: 30,4x15,9x23,3mm weight: 21g

Specifications

manufacturer
Manufacturer's name HF161F-W/024-HT
Nominal voltage [V DC] 24
Coil resistance [Ω] 230
Max. operating voltage [V DC] 28,8
Response voltage [V] 16,8
Release voltage [V] 2,4
Nominal capacity [mW] 1400
Data Sheet

Unit price

2,29 €

Stock: 65
Further delivery:
CW 06/2025

Minimum order quantity 5 units or
multiples of 5.
