DC5/DC 5V 600mA

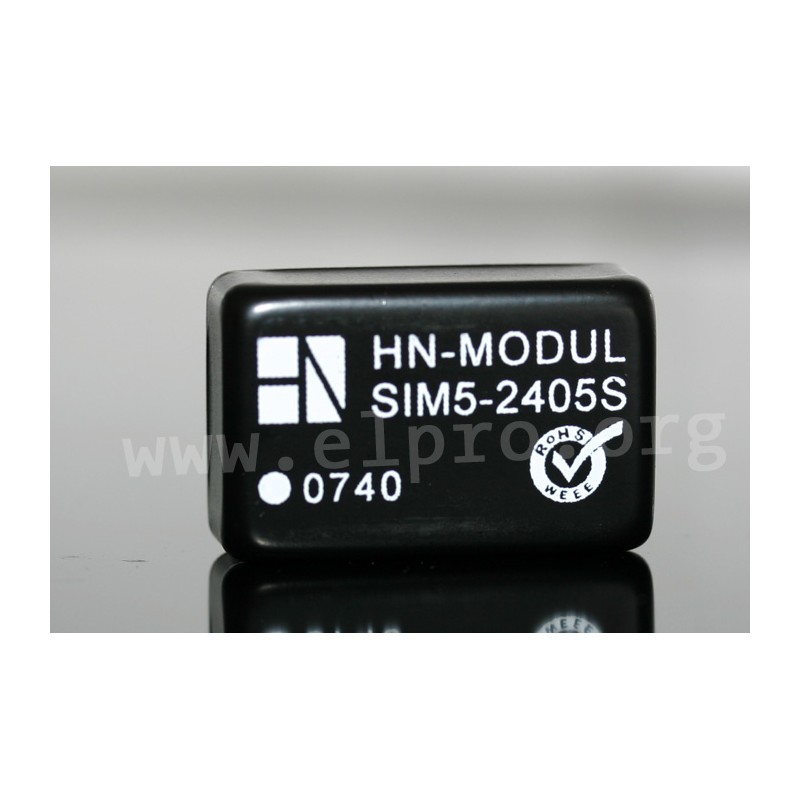

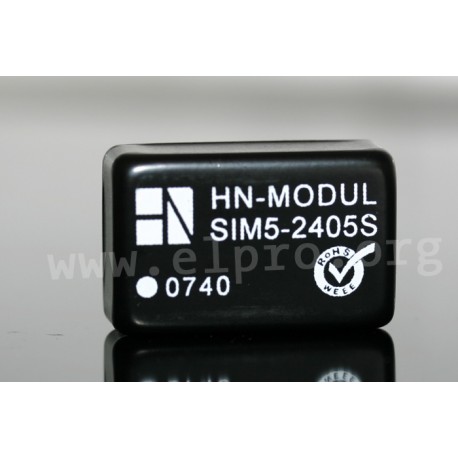

HN-Power DC/DC converter series SIM 5

DC/DC converters in a DIL24 housing with 3W, input and output galvanically isolated, protected against short circuit and suitable for PCB mounting. These devices have single or dual output options and an input voltage ratio of 1:1. They can withstand up to 500V DC of voltage and operate within a temperature range of -20°C to +71°C. We offer the following types of this HN-Power series: SIM5-0505S, SIM5-0512S, SIM5-0512D, SIM5-0515D, SIM5-1212S, SIM5-2405S and SIM5-2412D.

  • single or dual output
  • output: 3W
  • withstand voltage: 500V DC
  • operating temperature: -20 to +71°C
HN-Power SIM5 series

DC5/DC 5V 600mA

18171 DC5/DC 5V 600mA SIM5-0505S SIM5-0505S HN-Power DC/DC converter series SIM 5. DC/DC converters in a DIL24 housing with 3W, input and output galvanically isolated, protected against short circuit and suitable for PCB mounting. These devices have single or dual output options and an input voltage ratio of 1:1. They can withstand up to 500V DC of voltage and operate within a temperature range of -20°C to +71°C. We offer the following types of this HN-Power series: SIM5-0505S, SIM5-0512S, SIM5-0512D, SIM5-0515D, SIM5-1212S, SIM5-2405S and SIM5-2412D. single or dual output output: 3W withstand voltage: 500V DC operating temperature: -20 to +71°C

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name SIM5-0505S

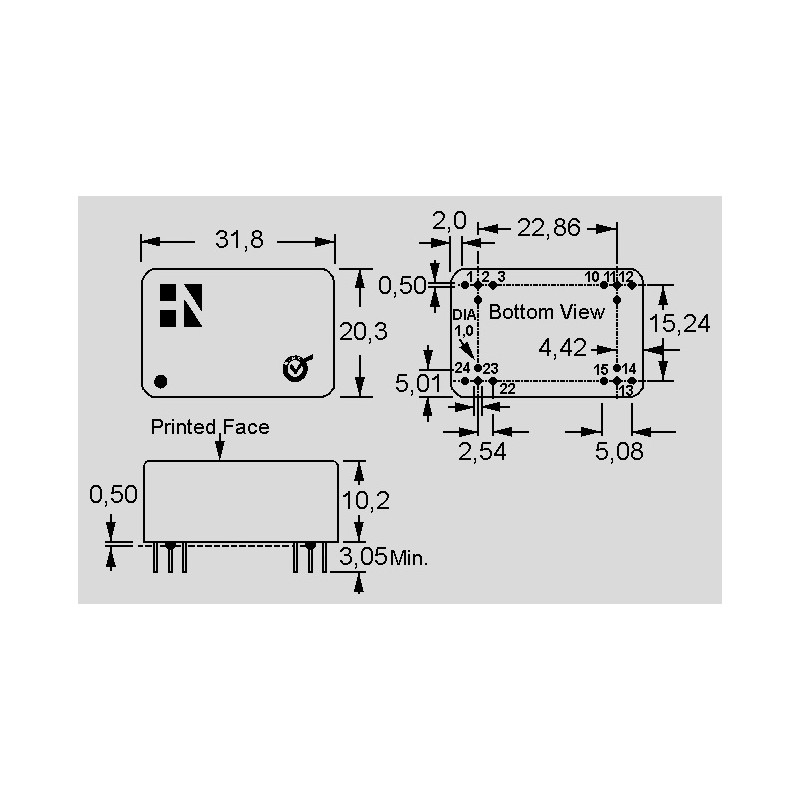

Case DIL 24 case
Input [V DC] 5
Output [mA] 600
Output [V] 5
Data Sheet

Unit price

11,99 €

Stock: 5
