DC24/DC 12V/-12V 2x125mA

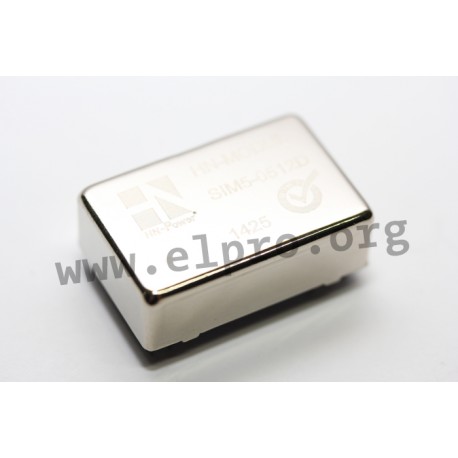

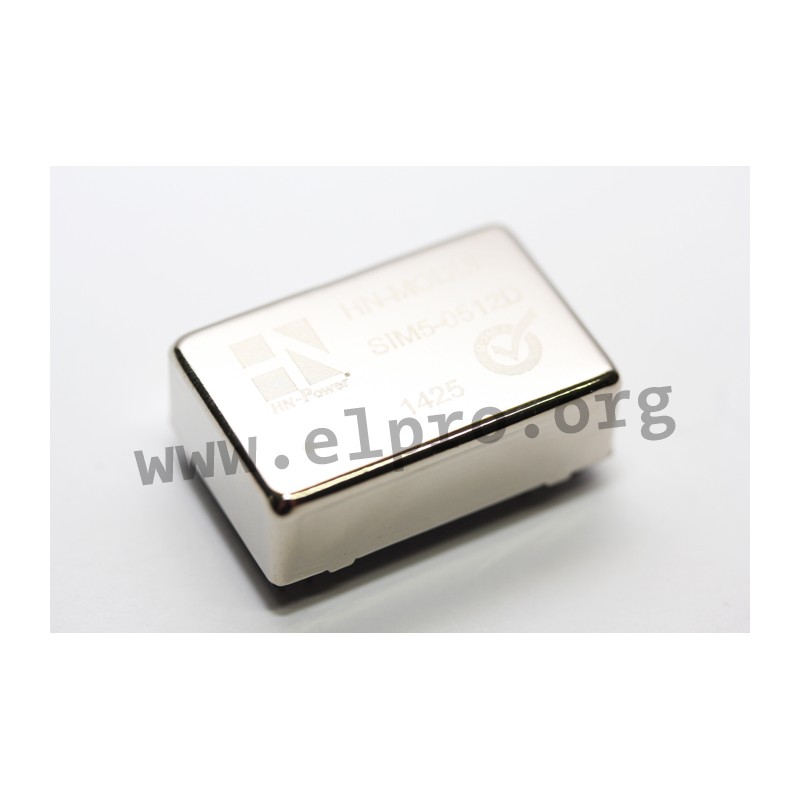

HN-Power DC/DC converter series SIM 5

DC/DC converters in a DIL24 housing with 3W, input and output galvanically isolated, protected against short circuit and suitable for PCB mounting. These devices have single or dual output options and an input voltage ratio of 1:1. They can withstand up to 500V DC of voltage and operate within a temperature range of -20°C to +71°C. We offer the following types of this HN-Power series: SIM5-0505S, SIM5-0512S, SIM5-0512D, SIM5-0515D, SIM5-1212S, SIM5-2405S and SIM5-2412D.

  • single or dual output
  • output: 3W
  • withstand voltage: 500V DC
  • operating temperature: -20 to +71°C
HN-Power SIM5 series

DC24/DC 12V/-12V 2x125mA

18142 DC24/DC 12V/-12V 2x125mA SIM5-2412D SIM5-2412D HN-Power DC/DC converter series SIM 5. DC/DC converters in a DIL24 housing with 3W, input and output galvanically isolated, protected against short circuit and suitable for PCB mounting. These devices have single or dual output options and an input voltage ratio of 1:1. They can withstand up to 500V DC of voltage and operate within a temperature range of -20°C to +71°C. We offer the following types of this HN-Power series: SIM5-0505S, SIM5-0512S, SIM5-0512D, SIM5-0515D, SIM5-1212S, SIM5-2405S and SIM5-2412D. single or dual output output: 3W withstand voltage: 500V DC operating temperature: -20 to +71°C

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name SIM5-2412D
Case DIL 24 case
Input [V DC] 24
Output [mA] 125
Output [V] 12
Output2 [mA] -125
Output2 [V] -12
Data Sheet

Unit price

16,99 €

Stock: 17
