DC12/DC 12V 250mA

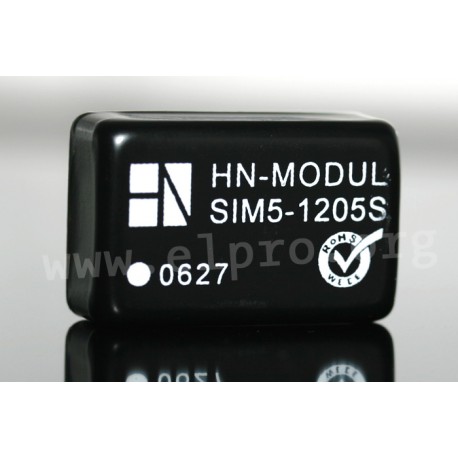

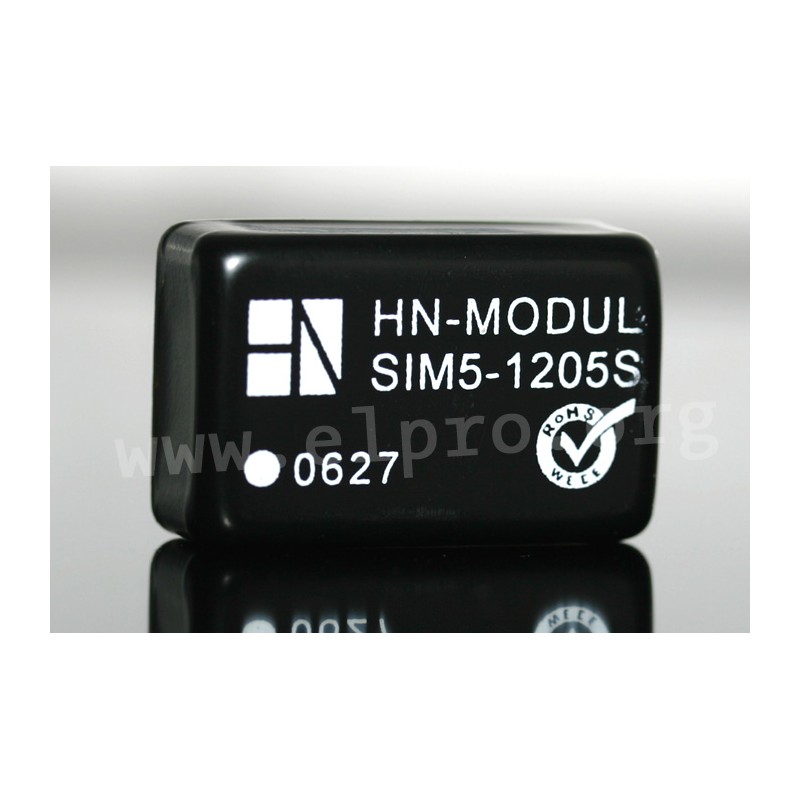

HN-Power DC/DC converter series SIM 5

DC/DC converters in a DIL24 housing with 3W, input and output galvanically isolated, protected against short circuit and suitable for PCB mounting. These devices have single or dual output options and an input voltage ratio of 1:1. They can withstand up to 500V DC of voltage and operate within a temperature range of -20°C to +71°C. We offer the following types of this HN-Power series: SIM5-0505S, SIM5-0512S, SIM5-0512D, SIM5-0515D, SIM5-1212S, SIM5-2405S and SIM5-2412D.

  • single or dual output
  • output: 3W
  • withstand voltage: 500V DC
  • operating temperature: -20 to +71°C
HN-Power SIM5 series

DC12/DC 12V 250mA

18111 DC12/DC 12V 250mA SIM5-1212S SIM5-1212S HN-Power DC/DC converter series SIM 5. DC/DC converters in a DIL24 housing with 3W, input and output galvanically isolated, protected against short circuit and suitable for PCB mounting. These devices have single or dual output options and an input voltage ratio of 1:1. They can withstand up to 500V DC of voltage and operate within a temperature range of -20°C to +71°C. We offer the following types of this HN-Power series: SIM5-0505S, SIM5-0512S, SIM5-0512D, SIM5-0515D, SIM5-1212S, SIM5-2405S and SIM5-2412D. single or dual output output: 3W withstand voltage: 500V DC operating temperature: -20 to +71°C

This product is no longer in stock

Specifications

manufacturer
Manufacturer's name SIM5-1212S
Case DIL 24 case
Input [V DC] 12
Output [mA] 250
Output [V] 12
Data Sheet

Unit price

11,99 €

Stock: 0
