DC9/DC 12V 166mA SIL

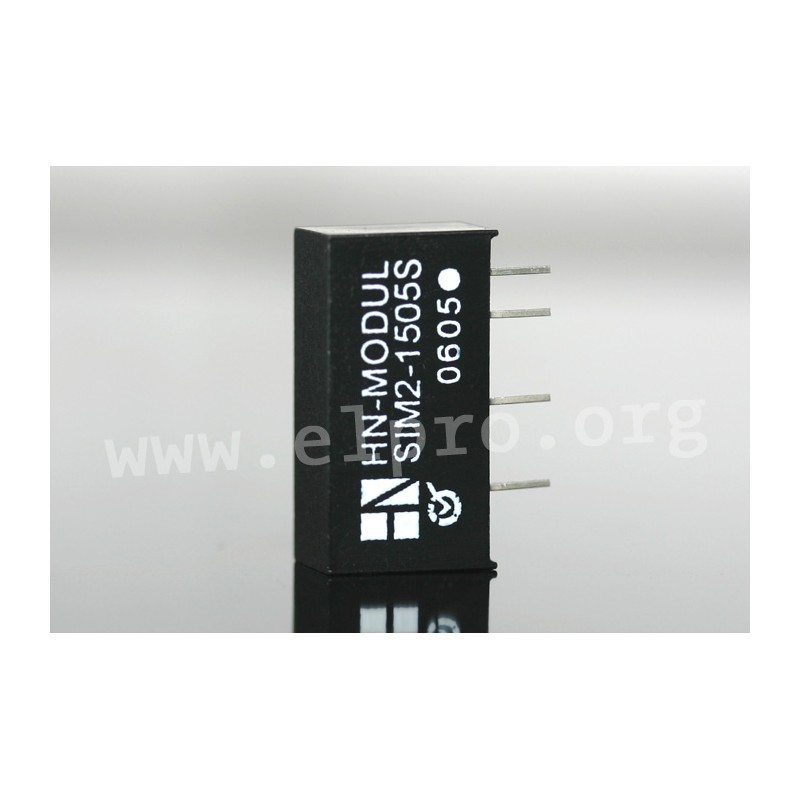

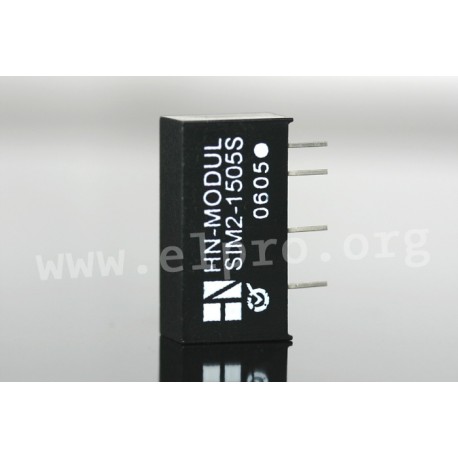

DC/DC-converter-modules SIM2 by HN-Power

• output: 2 W

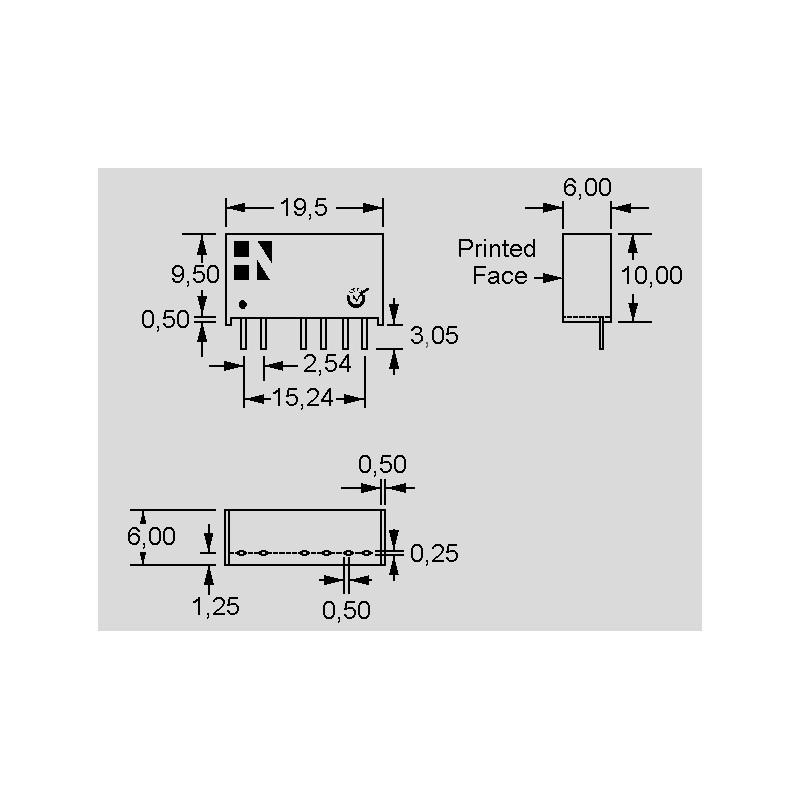

• SIP/SIL7 housing
• single output
• for direct PCB mounting
• input voltage ratio 1:1
• DC decoupling of input and output
• unregulated voltage
• ±5% voltage accuracy (load 20 to 100%)
• max. ripple & noise: 100 mVpp
• 80% effeciency, min.
• withstand voltage: 1000 V DC
• operating temperature: up -20 to +75°C
• by HN-Power


• pin assignment:
pin 1: +UIN
pin 2: -UIN
pin 4: -UOUT
pin 5: not connected
pin 6: +UOUT
pin 7: not conntected

HN-Power SIM2 series

DC9/DC 12V 166mA SIL

18179 DC9/DC 12V 166mA SIL SIM2-0912S-SIL7 SIM2-0912S-SIL7 DC/DC-converter-modules SIM2 by HN-Power. • output: 2 W• SIP/SIL7 housing• single output• for direct PCB mounting• input voltage ratio 1:1• DC decoupling of input and output• unregulated voltage• ±5% voltage accuracy (load 20 to 100%)• max. ripple & noise: 100 mVpp• 80% effeciency, min.• withstand voltage: 1000 V DC• operating temperature: up -20 to +75°C• by HN-Power• pin assignment:pin 1: +UINpin 2: -UINpin 4: -UOUTpin 5: not connectedpin 6: +UOUTpin 7: not conntected

Specifications

manufacturer
Manufacturer's name SIM2-0912S-SIL7
Case SIL 7 case
Input [V DC] 9
Output [mA] 166
Output [V] 12
Data Sheet

Unit price

5,59 €

Stock: 0
Further delivery:
CW 08/2025
