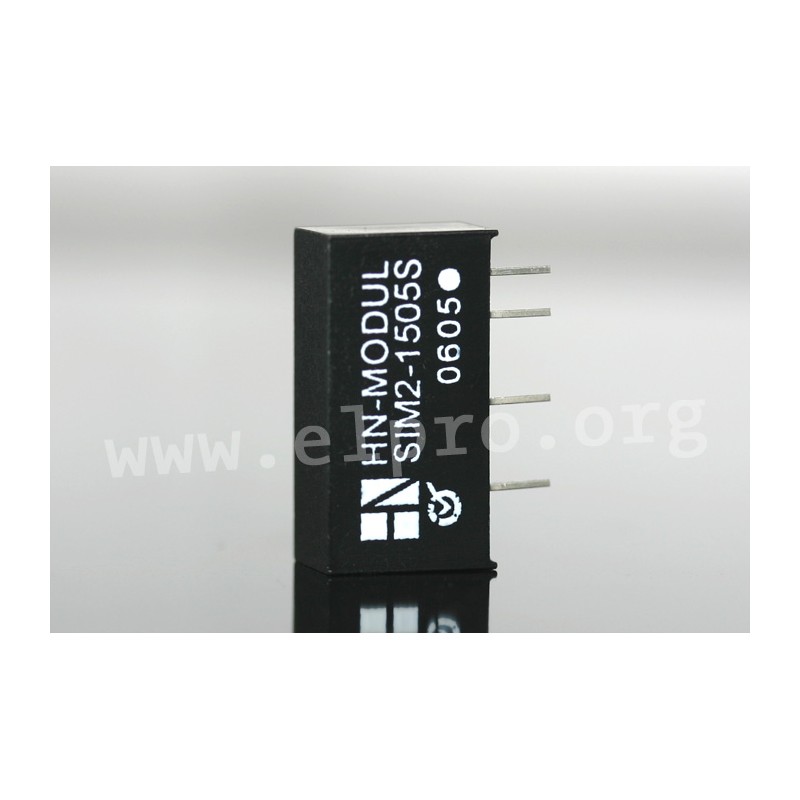

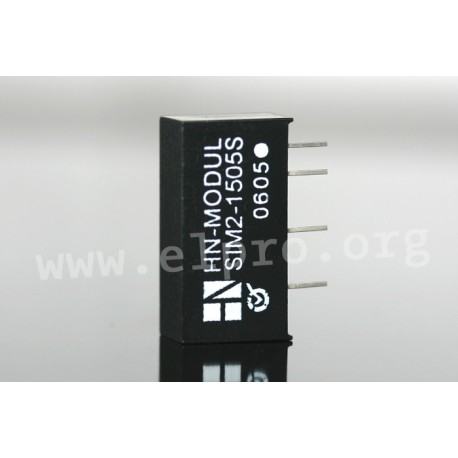

DC15/DC 5V 400mA SIL

HN-Power DC/DC converter series SIM 2

DC/DC converters in a SIL7 housing with 2W output power are suitable for PCB mounting. These devices have input and output galvanically isolated, single or dual outputs, and can operate within an operating temperature range of -20 to +75°C. They also feature maximal ripple and noise of 100mVpp, as well as withstand voltage up to 1000V DC. We offer various types of this HN-Power series.

  • single or dual output
  • output: 2W
  • maximal ripple and noise: 100mVpp
  • withstand voltage: 1000V DC
  • operating temperature: -20 to +75°C
HN-Power SIM2 series

DC15/DC 5V 400mA SIL

18130 DC15/DC 5V 400mA SIL SIM2-1505S-SIL7 SIM2-1505S-SIL7 HN-Power DC/DC converter series SIM 2. DC/DC converters in a SIL7 housing with 2W output power are suitable for PCB mounting. These devices have input and output galvanically isolated, single or dual outputs, and can operate within an operating temperature range of -20 to +75°C. They also feature maximal ripple and noise of 100mVpp, as well as withstand voltage up to 1000V DC. We offer various types of this HN-Power series. single or dual output output: 2W maximal ripple and noise: 100mVpp withstand voltage: 1000V DC operating temperature: -20 to +75°C

Specifications

manufacturer
Manufacturer's name SIM2-1505S-SIL7

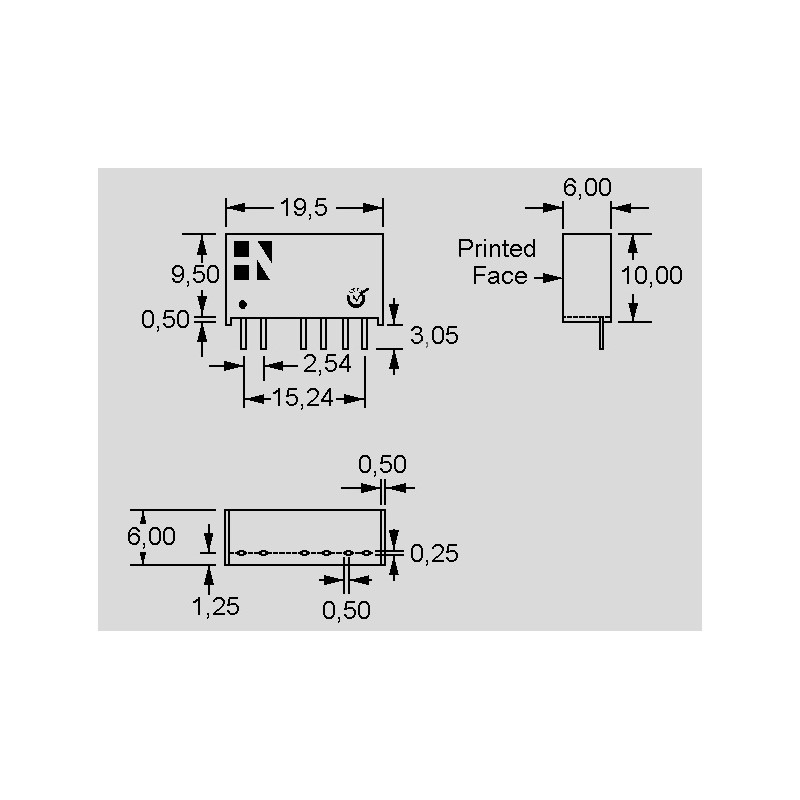

Case SIL 7 case
Input [V DC] 15
Output [mA] 400
Output [V] 5
Data Sheet

Unit price

5,59 €

Stock: 117
Further delivery:
CW 04/2025
