DC12/DC 24V 42mA SIL

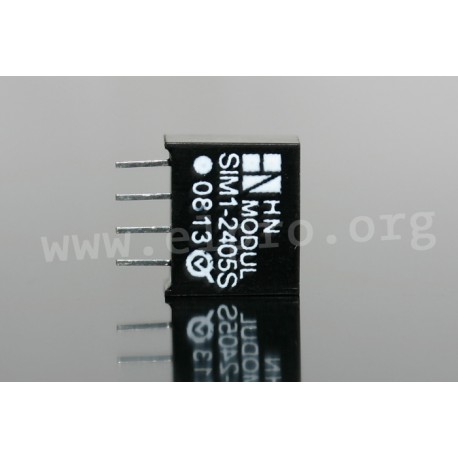

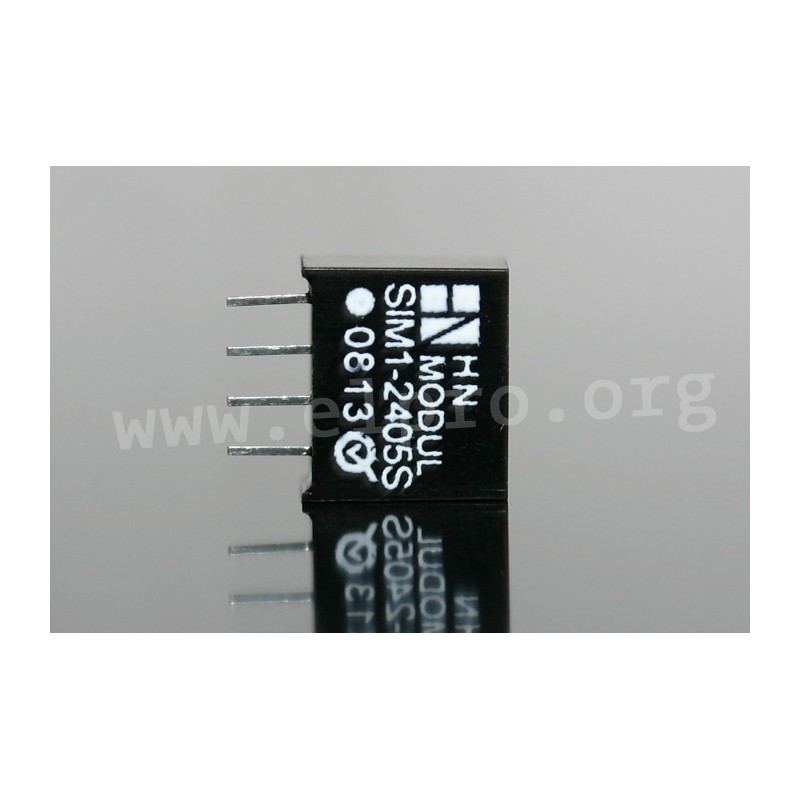

HN-Power DC/DC converter series SIM 1 - SIL 4

DC/DC converters with 1W and an unregulated output in a SIL4 plastic housing. These devices are designed to be directly mounted on PCBs, making them easy to integrate into existing systems. The input and output of the converter is galvanically isolated, ensuring safe operation even at high voltages up to 1000V AC. Additionally, they have been tested for their ability to withstand extreme temperatures ranging from -40°C up to +85°C without compromising performance or reliability. This makes them ideal for use in harsh environments. We offer various types of this HN-Power series.

  • single output
  • output: 1W
  • withstand voltage: 1000V AC
  • operating temperature: -40 to +85°C
HN-Power SIM1 series

DC12/DC 24V 42mA SIL

18118 DC12/DC 24V 42mA SIL SIM1-1224 SIL4 SIM1-1224 SIL4 HN-Power DC/DC converter series SIM 1 - SIL 4. DC/DC converters with 1W and an unregulated output in a SIL4 plastic housing. These devices are designed to be directly mounted on PCBs, making them easy to integrate into existing systems. The input and output of the converter is galvanically isolated, ensuring safe operation even at high voltages up to 1000V AC. Additionally, they have been tested for their ability to withstand extreme temperatures ranging from -40°C up to +85°C without compromising performance or reliability. This makes them ideal for use in harsh environments. We offer various types of this HN-Power series. single output output: 1W withstand voltage: 1000V AC operating temperature: -40 to +85°C

Specifications

manufacturer
Manufacturer's name SIM1-1224 SIL4

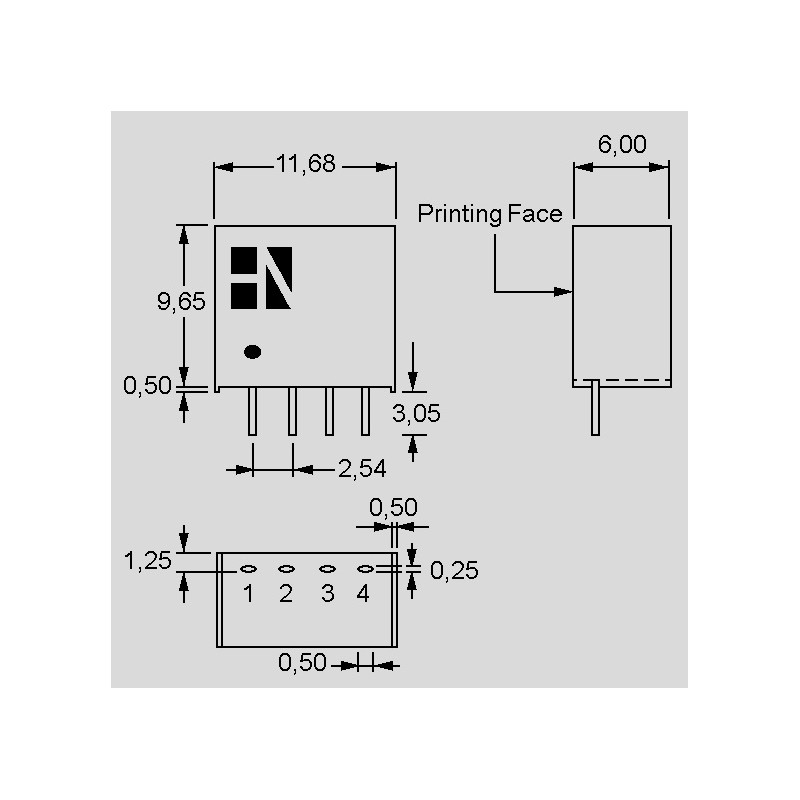

Case SIL 4 case
Input [V DC] 12
Output [V] 24
Output [mA] 42
Data Sheet

Unit price

3,69 €

Stock: 40
Further delivery:
CW 08/2025
