DC24/DC 5V 200mA

HN-Power DC/DC converter series SIM 1

DC/DC converters with an unregulated output. These devices come enclosed within a DIL8 plastic housing, making them suitable for PCB mounting. The input and output of these modules are galvanically isolated from each other to prevent any electrical interference between them. With an output power range of 1 to 1,2W, they can be used in various applications that require low-power DC voltage conversion. Additionally, these converters have been tested and proven to withstand voltages up to 1000V DC without any damage or failure, ensuring their reliability even under harsh operating conditions. We offer various types of this HN-Power series.

  • single output
  • output: 1 to 1,2W
  • withstand voltage: 1000V DC
HN-Power SIM1 series

DC24/DC 5V 200mA

18147 DC24/DC 5V 200mA SIM1-2405S DIL8 SIM1-2405S DIL8 HN-Power DC/DC converter series SIM 1. DC/DC converters with an unregulated output. These devices come enclosed within a DIL8 plastic housing, making them suitable for PCB mounting. The input and output of these modules are galvanically isolated from each other to prevent any electrical interference between them. With an output power range of 1 to 1,2W, they can be used in various applications that require low-power DC voltage conversion. Additionally, these converters have been tested and proven to withstand voltages up to 1000V DC without any damage or failure, ensuring their reliability even under harsh operating conditions. We offer various types of this HN-Power series. single output output: 1 to 1,2W withstand voltage: 1000V DC

Specifications

manufacturer
Manufacturer's name SIM1-2405S DIL8

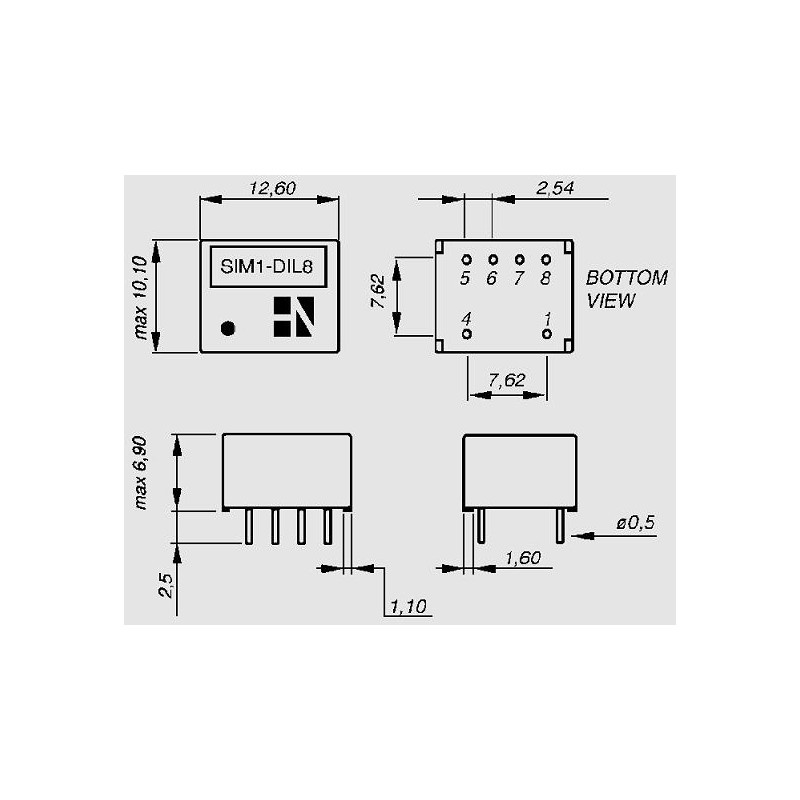

Case DIL 8 case
Input [V DC] 24
Output [V] 5
Output [mA] 200
Data Sheet

Unit price

4,09 €

Stock: 0
Next incoming goods:
CW 49/2024
56 units

Further delivery:
CW 04/2025
