DC12/DC 15V 85mA

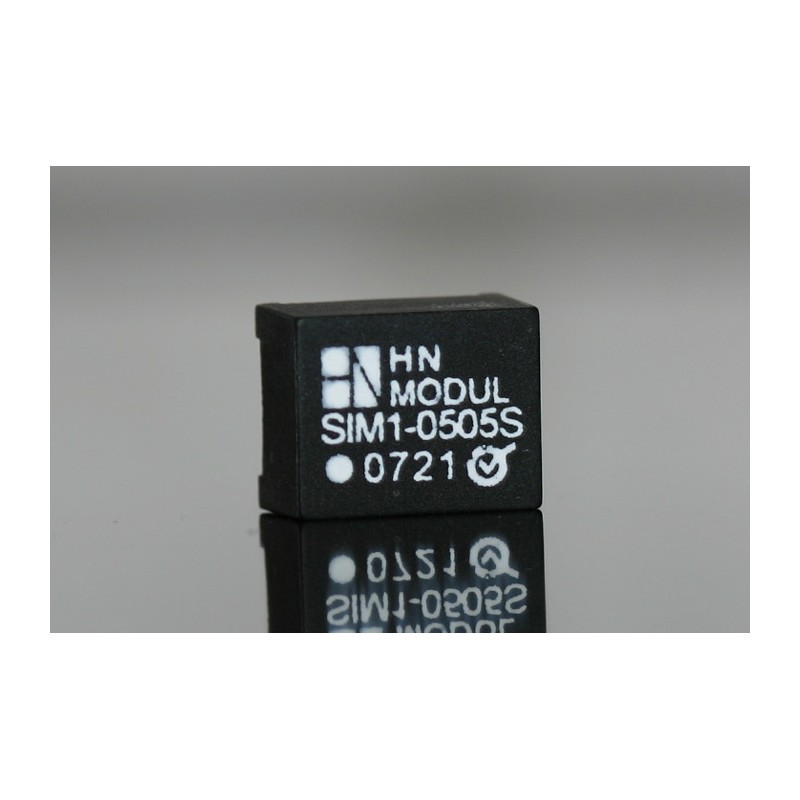

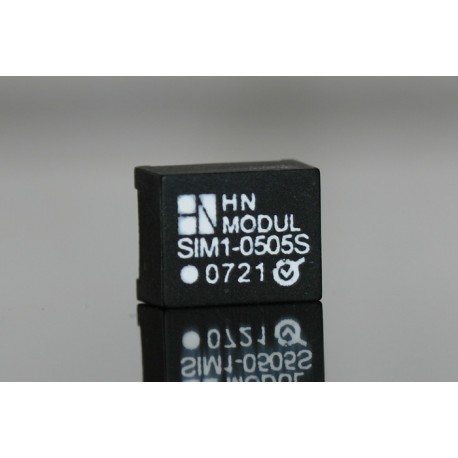

DC/DC-converter-modules SIM1 by HN Power

• output: 1.27 W
• DIP/DIL8 housing
• single output
• for direct PCB mounting
• input voltage ratio: 1:1
• DC decoupling of input and output
• unregulated voltage
• input voltage: 12V
• voltage accuracy  (load 20 to 100%): ±3%
• ripple & noise, max.: 100mVp-p
• efficiency, min.: 80%
• withstand voltage: 1000V DC
• operating temperature: -40 to +85°C
• by HN-Power

HN-Power SIM1 series

DC12/DC 15V 85mA

18116 DC12/DC 15V 85mA SIM1-1215S DIL8 SIM1-1215S DIL8 DC/DC-converter-modules SIM1 by HN Power. • output: 1.27 W• DIP/DIL8 housing• single output• for direct PCB mounting• input voltage ratio: 1:1• DC decoupling of input and output• unregulated voltage• input voltage: 12V• voltage accuracy  (load 20 to 100%): ±3%• ripple & noise, max.: 100mVp-p• efficiency, min.: 80%• withstand voltage: 1000V DC• operating temperature: -40 to +85°C• by HN-Power

Specifications

manufacturer
Manufacturer's name SIM1-1215S DIL8

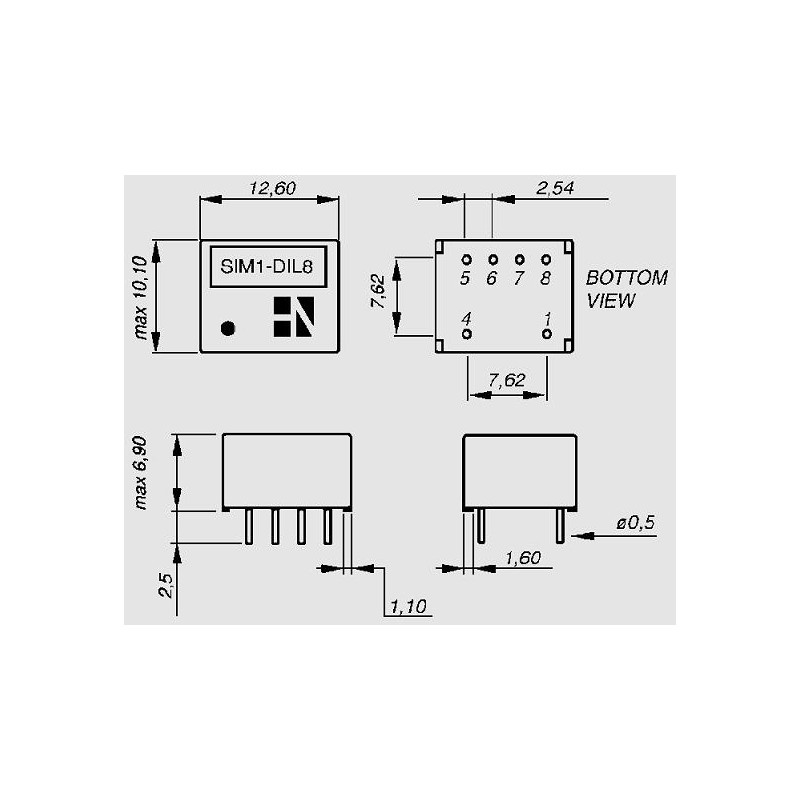

Case DIL 8 case
Input [V DC] 12
Output [V] 15
Output [mA] 85
Data Sheet

Unit price

3,49 €

Stock: 0
Further delivery:
CW 51/2024

Minimum order quantity 100 units or
multiples of 100.
