RIM78-018-1.0

DC/DC converter modules RIM78 by HN-Power

* output: 1.8 W
• step-down switching DC-DC converter
• series: RIM78
• SIP/SIL3 housing
• single output
• for direct PCB mounting
• efficiency up to 94%
• continous short circuit protection
• non isolated, no need for heat sinks
• pin-out compatible with LM78_
• full SMD technology
• typ. voltage accuracy: ±2%
• ripple & noise, max. 60mVpp
• typ. switching frequency: 330 kHz
• operating temperature range: -40 to +85°C
• by HN-Power

RIM78-018-1.0

42055 RIM78-018-1.0 RIM78-018-1.0 DC/DC converter modules RIM78 by HN-Power. * output: 1.8 W• step-down switching DC-DC converter• series: RIM78• SIP/SIL3 housing• single output• for direct PCB mounting• efficiency up to 94%• continous short circuit protection• non isolated, no need for heat sinks• pin-out compatible with LM78_• full SMD technology• typ. voltage accuracy: ±2%• ripple & noise, max. 60mVpp• typ. switching frequency: 330 kHz• operating temperature range: -40 to +85°C• by HN-Power

Specifications

manufacturer
Manufacturer's name RIM78-018-1.0

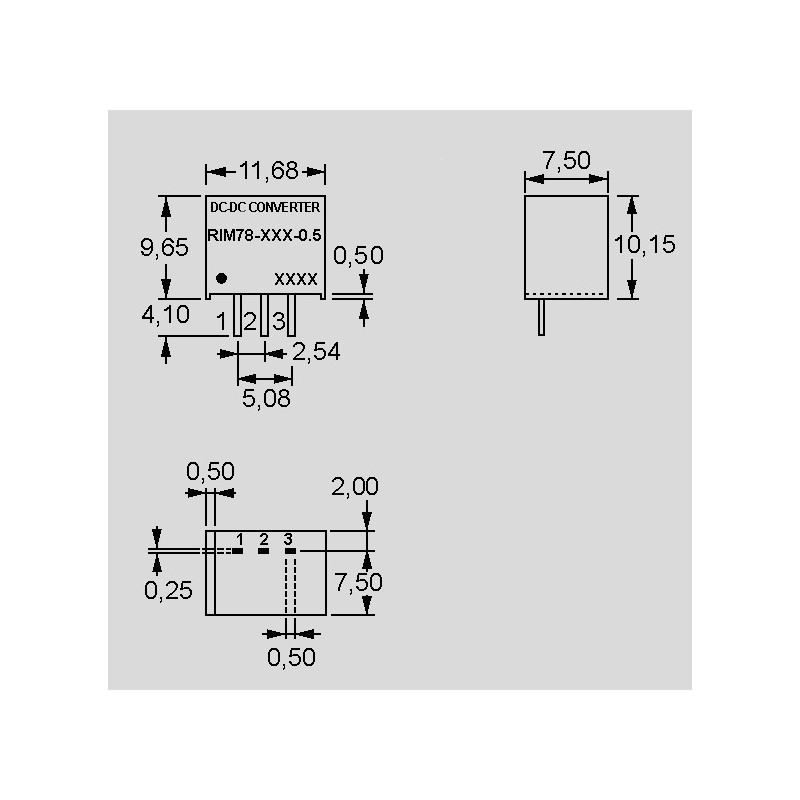

Case SIL 3 case
Input voltage [V] 4,75...18
Output voltage [V] 1,8
Output current range [mA] 1000
Efficiency [%] 82...76
Data Sheet

Unit price

5,89 €

Stock: 0
Further delivery:
CW 08/2025
