HNP90M-120

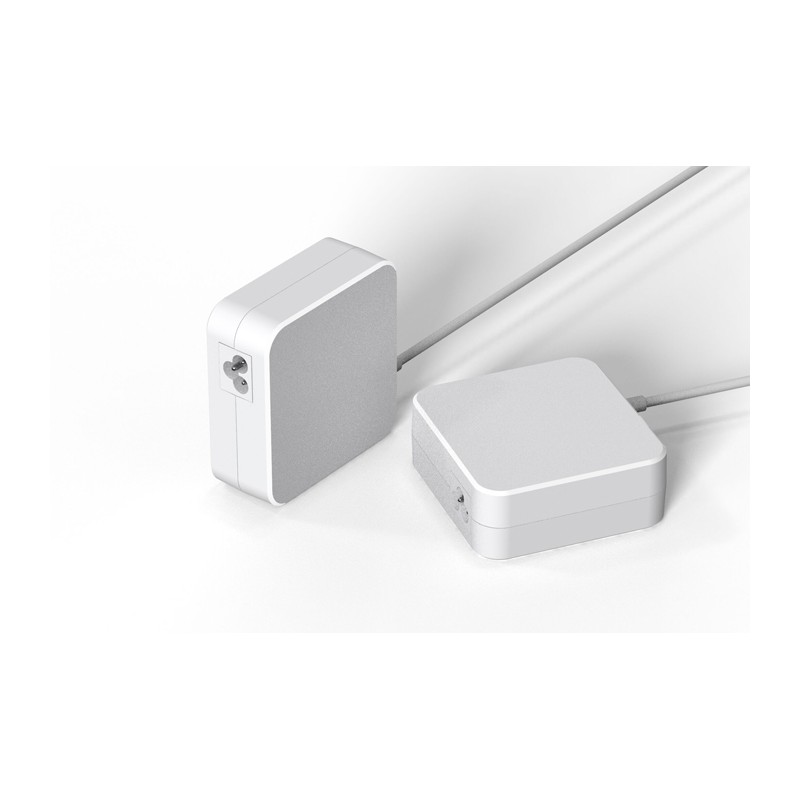

HN-Power external power supply series HNP90M

Desktop switching power supplies in a compact housing with 90W, a universal input, protection class I and energy efficiency Level VI. These devices are suitable for indoor applications and are protected against overload, overvoltage as well as short circuit. They have a low no-load power consumption and comply with EN62368-1 as well as EN55032 class B. we offer the following types of this HN-Power series: HNP90M-120, HNP90M-190 and HNP90M-240.

  • single output
  • output: 84 to 90W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 100A
  • input current: 1,5A
  • leakage current: 2,5mA
  • withstand voltage: 4000V AC
  • input plug: IEC-320 C6
  • cable length: 150cm
  • operating temperature: -10 to +40°C
  • dimensions: 91x88x35mm
  • weight: 360g
HNP90M-120, HN-Power external switching power supplies, 90W, energy efficiency Level VI, HNP90M series

HNP90M-120

242397 HNP90M-120 HNP90M-120 HN-Power external power supply series HNP90M. Desktop switching power supplies in a compact housing with 90W, a universal input, protection class I and energy efficiency Level VI. These devices are suitable for indoor applications and are protected against overload, overvoltage as well as short circuit. They have a low no-load power consumption and comply with EN62368-1 as well as EN55032 class B. we offer the following types of this HN-Power series: HNP90M-120, HNP90M-190 and HNP90M-240. single output output: 84 to 90W input voltage: 90 to 264V AC (47 to 63Hz) maximal input inrush current: 100A input current: 1,5A leakage current: 2,5mA withstand voltage: 4000V AC input plug: IEC-320 C6 cable length: 150cm operating temperature: -10 to +40°C dimensions: 91x88x35mm weight: 360g

Specifications

manufacturer
Manufacturer's name HNP90M-120
Output voltage [V] 12
Efficiency [%] 88,59
Output current range [A] 7
Output power [W] 84
Ripple [mVp-p] 200
Data Sheet

Unit price

32,29 €

Stock: 9
Further delivery:
CW 19/2025
