HNP30H-120

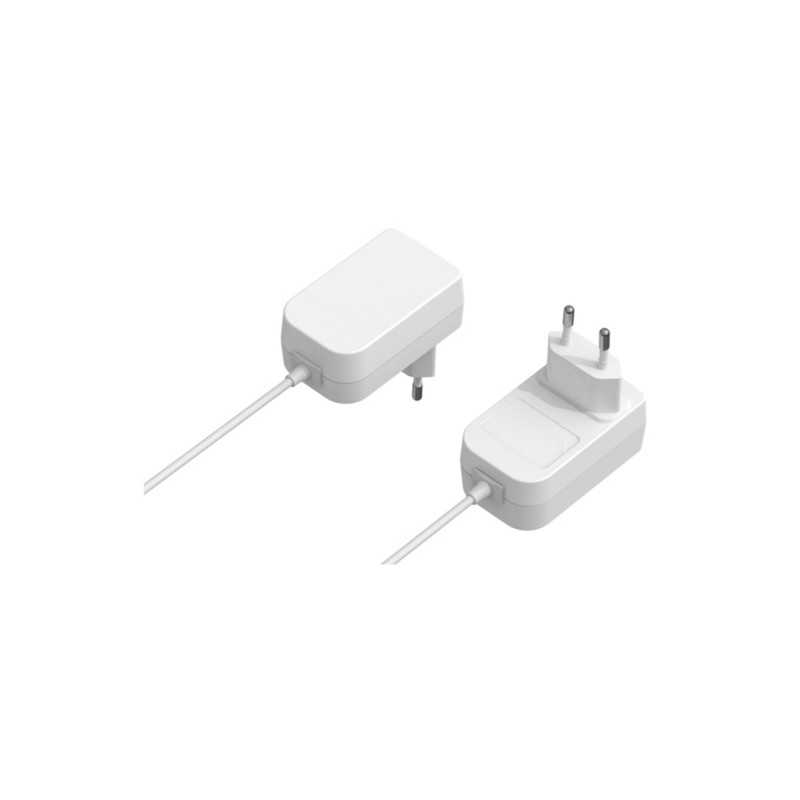

HN-Power wall mount power supplies series HNP30H

Wall mount switching power supplies with 30W, universal input, and isolation class II. These devices are protected against overload and conform with EN62368-1, EN61558-2-16, EN61558-1, EN55032, as well as EN55014. We offer the following types of this HP-Power series: HNP30H-090, HNP30H-120, and HNP30H-240.

  • output: 30W
  • input voltage range: 100 to 240V AC (47 to 63Hz)
  • input current: 0,85A
  • discharge current: 0,25mA
  • cable lenght: 1,5m
  • connection type, input: euro plug
  • output plug: 2,1x5,5mm
  • operating temperature: -10 to +40°C
  • weight: 125g

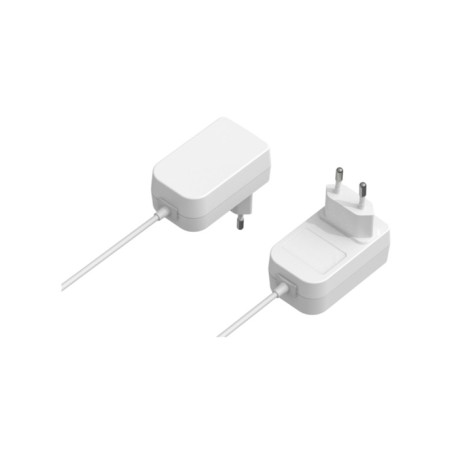

HNP30H-120, HN-Power wall mount power supplies, 30W, HNP30H series

HNP30H-120

247296 HNP30H-120 HNP30H-120 HN-Power wall mount power supplies series HNP30H. Wall mount switching power supplies with 30W, universal input, and isolation class II. These devices are protected against overload and conform with EN62368-1, EN61558-2-16, EN61558-1, EN55032, as well as EN55014. We offer the following types of this HP-Power series: HNP30H-090, HNP30H-120, and HNP30H-240. output: 30W input voltage range: 100 to 240V AC (47 to 63Hz) input current: 0,85A discharge current: 0,25mA cable lenght: 1,5m connection type, input: euro plug output plug: 2,1x5,5mm operating temperature: -10 to +40°C weight: 125g

Specifications

manufacturer
Manufacturer's name HNP30H-120
Output voltage [V] 12
Efficiency [%] 86,94
Output current [A] 2,5
Output power [W] 30
Ripple [mVp-p] 200
Data Sheet

Unit price

10,69 €

Stock: 10
Further delivery:
CW 07/2025
