HNP12I-USBL6

HN-Power plug-in power supplies series HNP12I

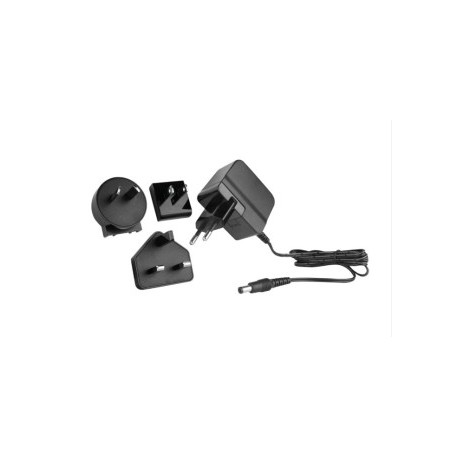

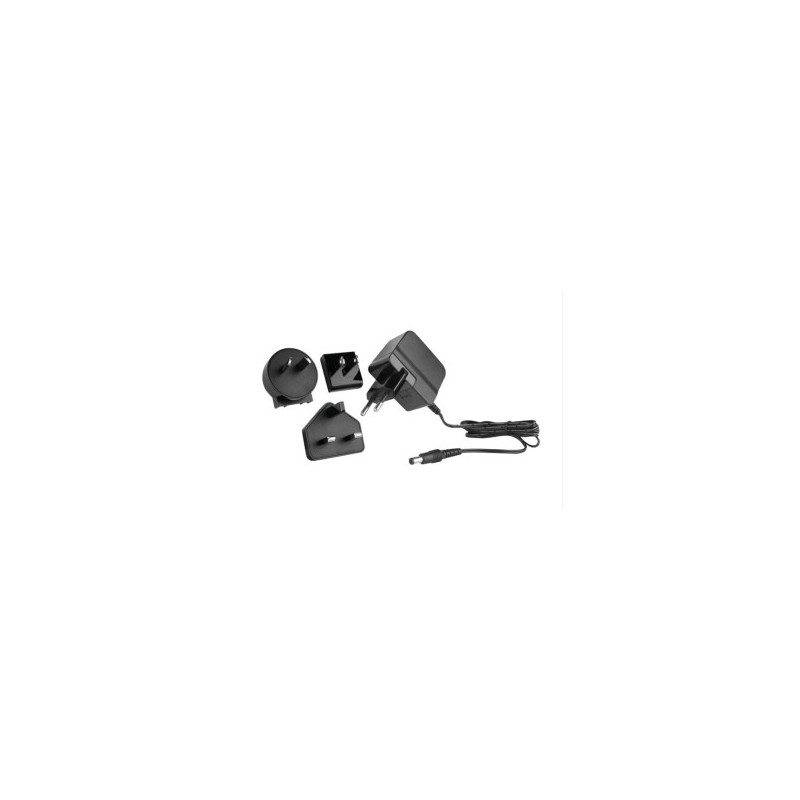

These plug-in power supplies for input plug adapters include adapters for Europa, USA/North America, UK, and Australia. They have a 2,1x5,5mm Koax output plug and a universal input. These devices conform eith the isolation class II, as well as they are protected against overload and short circuit. We offer the following types of this HN-Power series: HNP12I-050L6, HNP12I-090L6, HNP12I-120L6, and HNP12I-240L6.

  • power: 12W
  • input voltage range: 90 to 264V AC (47 to 63Hz)
  • inrush current, max.: 30A
  • connection length: 1,5m
  • operating temperature: -10 to +40°C
  • dimensions: 2,1x5,5mm
  • weight: 67g
HNP12I-USBL6, HN-Power plug-in power supplies, 12W, for AC plug adapters, HNP12I series

HNP12I-USBL6

247571 HNP12I-USBL6 HNP12I-USBL6 HN-Power plug-in power supplies series HNP12I. These plug-in power supplies for input plug adapters include adapters for Europa, USA/North America, UK, and Australia. They have a 2,1x5,5mm Koax output plug and a universal input. These devices conform eith the isolation class II, as well as they are protected against overload and short circuit. We offer the following types of this HN-Power series: HNP12I-050L6, HNP12I-090L6, HNP12I-120L6, and HNP12I-240L6. power: 12W input voltage range: 90 to 264V AC (47 to 63Hz) inrush current, max.: 30A connection length: 1,5m operating temperature: -10 to +40°C dimensions: 2,1x5,5mm weight: 67g

Specifications

manufacturer
Manufacturer's name HNP12I-USBL6
Output voltage [V] 5
Efficiency [%] DOE VI
Output current [A] 0...2,4
Output power [W] 12
Ripple [mVp-p] 100
Data Sheet

Unit price

9,79 €

Stock: 0
Further delivery:
CW 19/2025
